SWINGARM
4-95
EAS20037

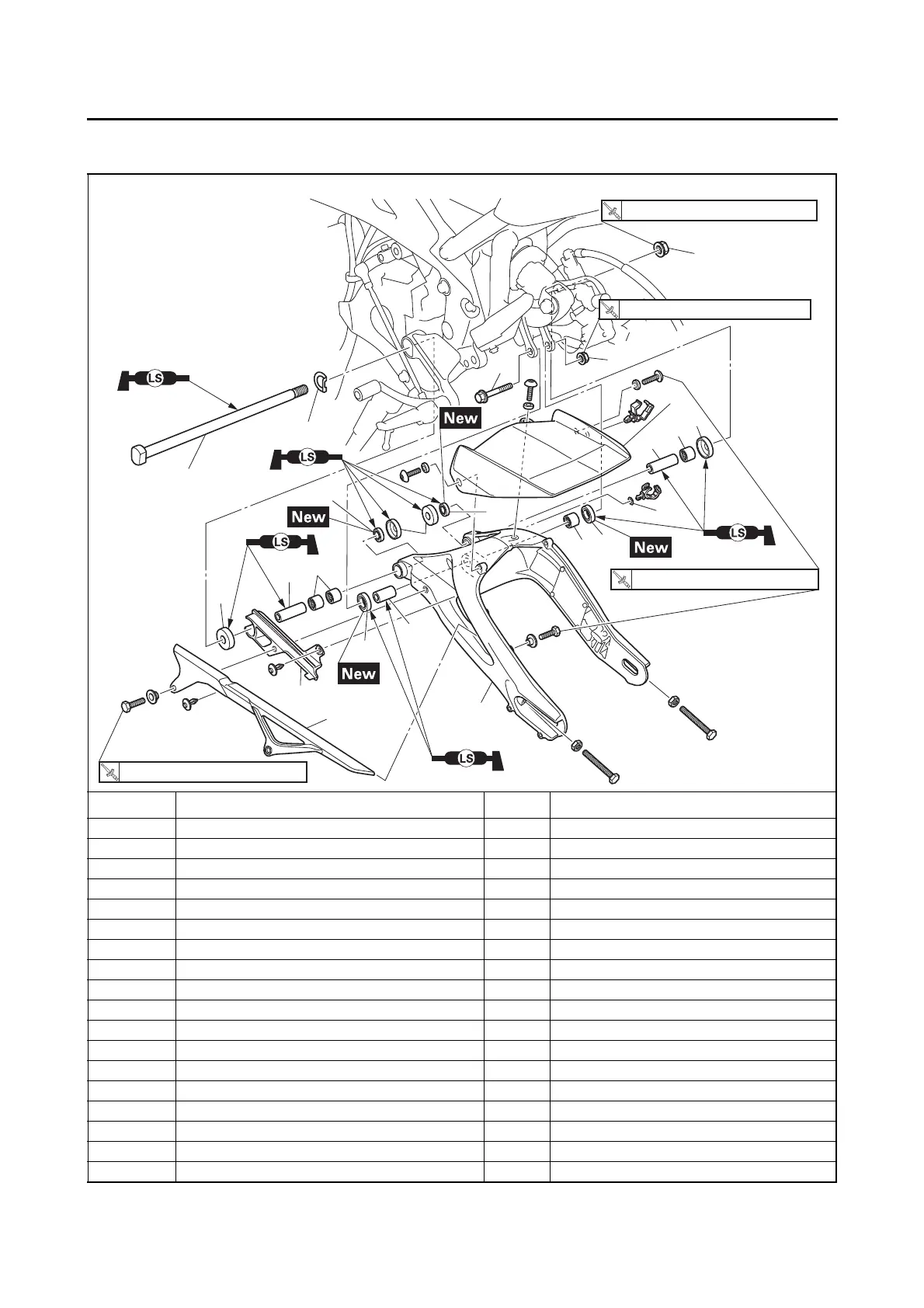

SWINGARM
Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper Refer to “REAR BRAKE” on page 4-48.
Rear wheel Refer to “REAR WHEEL” on page 4-27.
Muffler assembly Refer to “ENGINE REMOVAL” on page 5-3.
Drive chain Refer to “CHAIN DRIVE” on page 4-98.
1 Connecting arm lower nut 1
2 Connecting arm lower bolt 1
3 Pivot shaft nut 1
4 Pivot shaft 1
5Washer 1
6 Swingarm 1
7 Drive chain guard 1
8 Drive chain guide 1
9 Rear fender 1
10 Dust cover 4
11 Collar 3
12 Oil seal 4
13 Bearing 4
14 Washer 1
1
2
3
4
5
6
7
8
9
10
11
12
13
10
10
13
12
11
12
13
11
12
14
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
110 N・m (11 kgf・m, 80 lb・ft)
55 N・m (5.5 kgf・m, 40 lb・ft)
To Next Page
