FRONT BRAKE
4-40
EAS30168
INTRODUCTION
EWA14101
Disc brake components rarely require disas-
sembly. Therefore, always follow these pre-
ventive measures:
• Never disassemble brake components un-
less absolutely necessary.
• If any connection on the hydraulic brake
system is disconnected, the entire brake
system must be disassembled, drained,
cleaned, properly filled, and bled after reas-
sembly.
• Never use solvents on internal brake com-
ponents.
• Use only clean or new brake fluid for clean-
ing brake components.
• Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean
up any spilt brake fluid immediately.
• Avoid brake fluid coming into contact with
the eyes as it can cause serious injury.
FIRST AID FOR BRAKE FLUID ENTERING
THE EYES:
• Flush with water for 15 minutes and get im-
mediate medical attention.
EAS30169

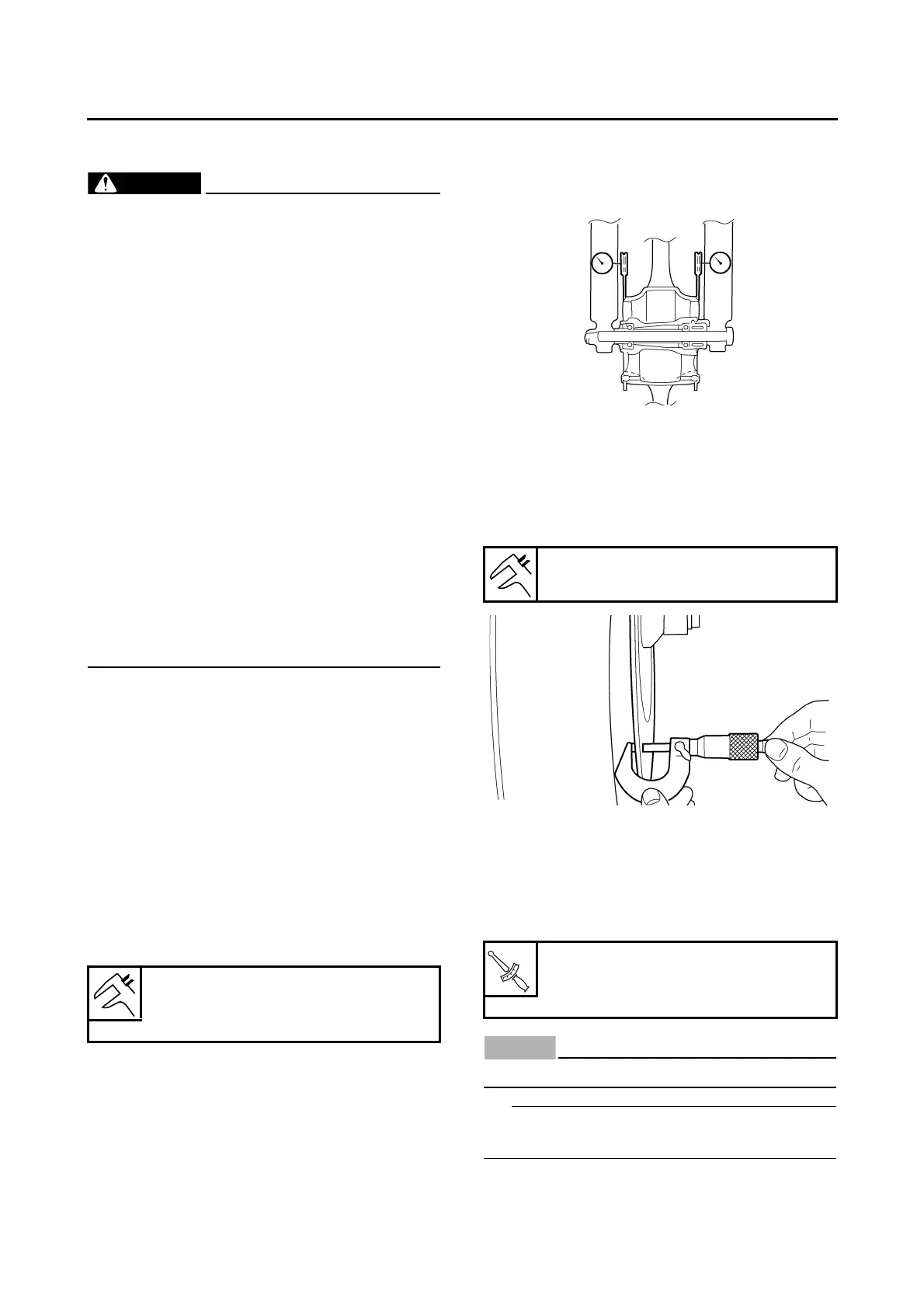

CHECKING THE FRONT BRAKE DISCS
The following procedure applies to both brake
discs.
1. Remove:
• Front wheel
Refer to “FRONT WHEEL” on page 4-19.
2. Check:
• Front brake disc
Damage/galling Replace.
3. Measure:
• Brake disc runout
Out of specification Correct the brake disc
runout or replace the brake disc.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Place the vehicle on a maintenance stand so
that the front wheel is elevated.
b. Before measuring the brake disc runout, turn
the handlebar to the left or right to ensure that
the front wheel is stationary.
c. Remove the brake caliper.
d. Hold the dial gauge at a right angle against
the brake disc surface.
e. Measure the runout 1.5 mm (0.06 in) below
the edge of the brake disc.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4. Measure:
• Brake disc thickness
Measure the brake disc thickness at a few dif-
ferent locations.
Out of specification Replace.
5. Adjust:
• Brake disc runout
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the brake disc.
b. Rotate the brake disc by one bolt hole.
c. Install the brake disc.
ECA19150
Replace the brake disc bolts with new ones.
Tighten the brake disc bolts in stages and in a
crisscross pattern.
Brake disc runout limit (as mea-
sured on wheel)
0.10 mm (0.0039 in)
Brake disc thickness limit
4.0 mm (0.16 in)
Front brake disc bolt
18 N·m (1.8 kgf·m, 13 lb·ft)
LOCTITE®
To Next Page
