PERIODIC MAINTENANCE
3-29
EAS30659

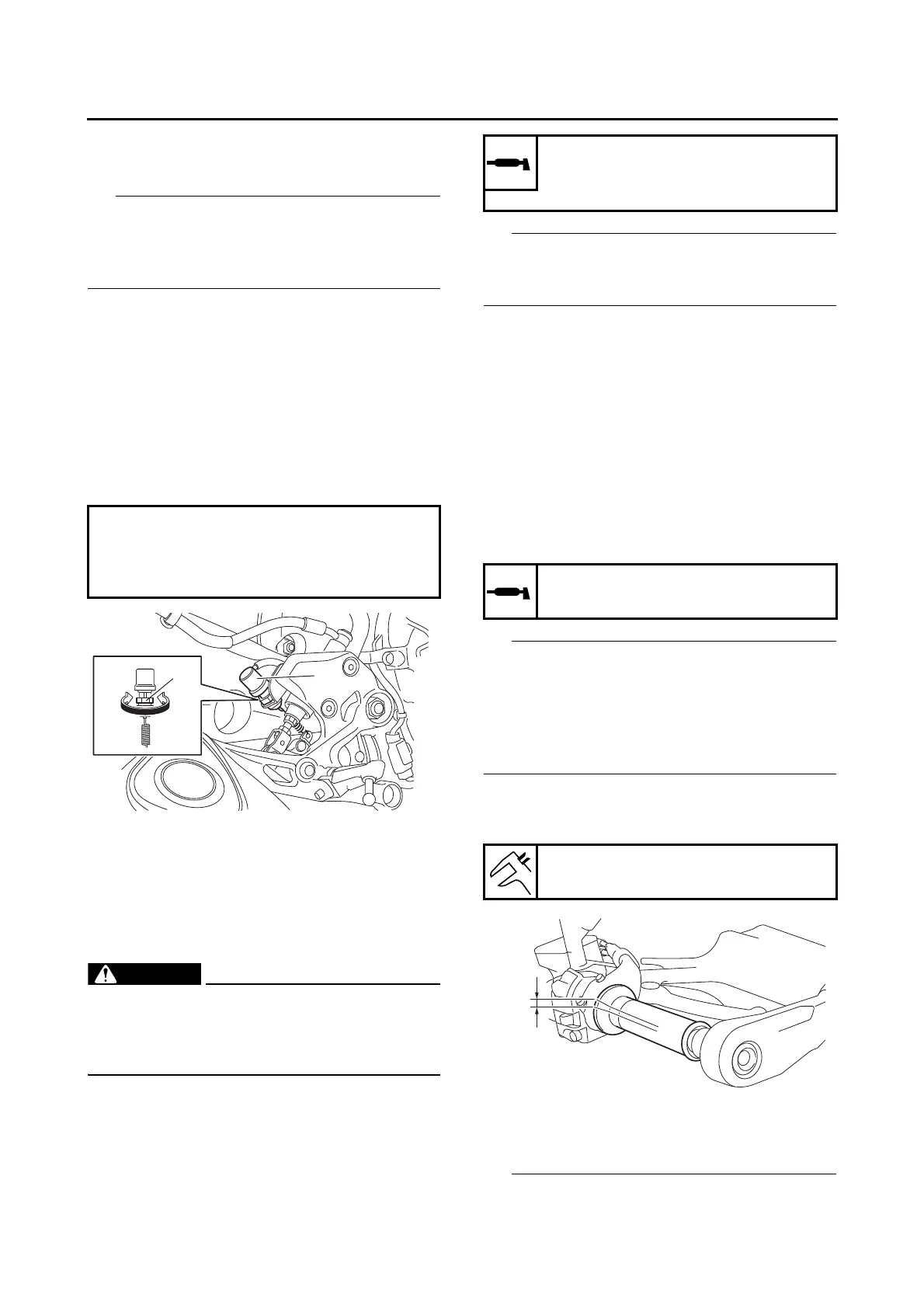

ADJUSTING THE REAR BRAKE LIGHT
SWITCH
The rear brake light switch is operated by move-
ment of the brake pedal. The rear brake light
switch is properly adjusted when the brake light
comes on just before the braking effect starts.
1. Check:
• Rear brake light operation timing
Incorrect Adjust.
2. Adjust:
• Rear brake light operation timing
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Hold the main body “1” of the rear brake light
switch so that it does not rotate and turn the
adjusting nut “2” in direction “a” or “b” until the
rear brake light comes on at the proper time.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS30660
CHECKING AND LUBRICATING THE
CABLES
The following procedure applies to all of the in-
ner and outer cables.
EWA13270
Damaged outer cable may cause the cable to
corrode and interfere with its movement. Re-
place damaged outer cable and inner cables
as soon as possible.
1. Check:
• Outer cable
Damage Replace.
2. Check:
• Cable operation
Rough movement Lubricate.
Hold the cable end upright and pour a few drops
of lubricant into the cable sheath or use a suit-
able lubricating device.
EAS30815
CHECKING THE THROTTLE GRIP
1. Check:
• Throttle cables
Damage/deterioration Replace.
• Throttle cable installation
Incorrect Reinstall the throttle cables.
Refer to “HANDLEBAR” on page 4-69.
2. Check:
• Throttle grip movement
Rough movement Lubricate or replace the
defective part(s).
With the engine stopped, turn the throttle grip
slowly and release it. Make sure that the throttle
grip turns smoothly and returns properly when
released.
Repeat this check with the handlebar turned all
the way to the left and right.
3. Check:
• Throttle grip free play “a”
Out of specification Adjust.
4. Adjust:
• Throttle grip free play
Prior to adjusting the throttle grip free play, throt-
Direction “a”
Brake light comes on sooner.
Direction “b”
Brake light comes on later.
2
1
ab
Recommended lubricant
Engine oil or a suitable cable lu-
bricant
Recommended lubricant
Suitable cable lubricant
Throttle grip free play
3.0–5.0 mm (0.12–0.20 in)
To Next Page
