OIL COOLER
6-5
EAS30441
CHECKING THE OIL COOLER
1. Check:
• Oil cooler
Cracks/damage Replace.
2. Check:
• Oil cooler inlet hose
• Oil cooler outlet hose
Cracks/damage/wear Replace.
EAS30442

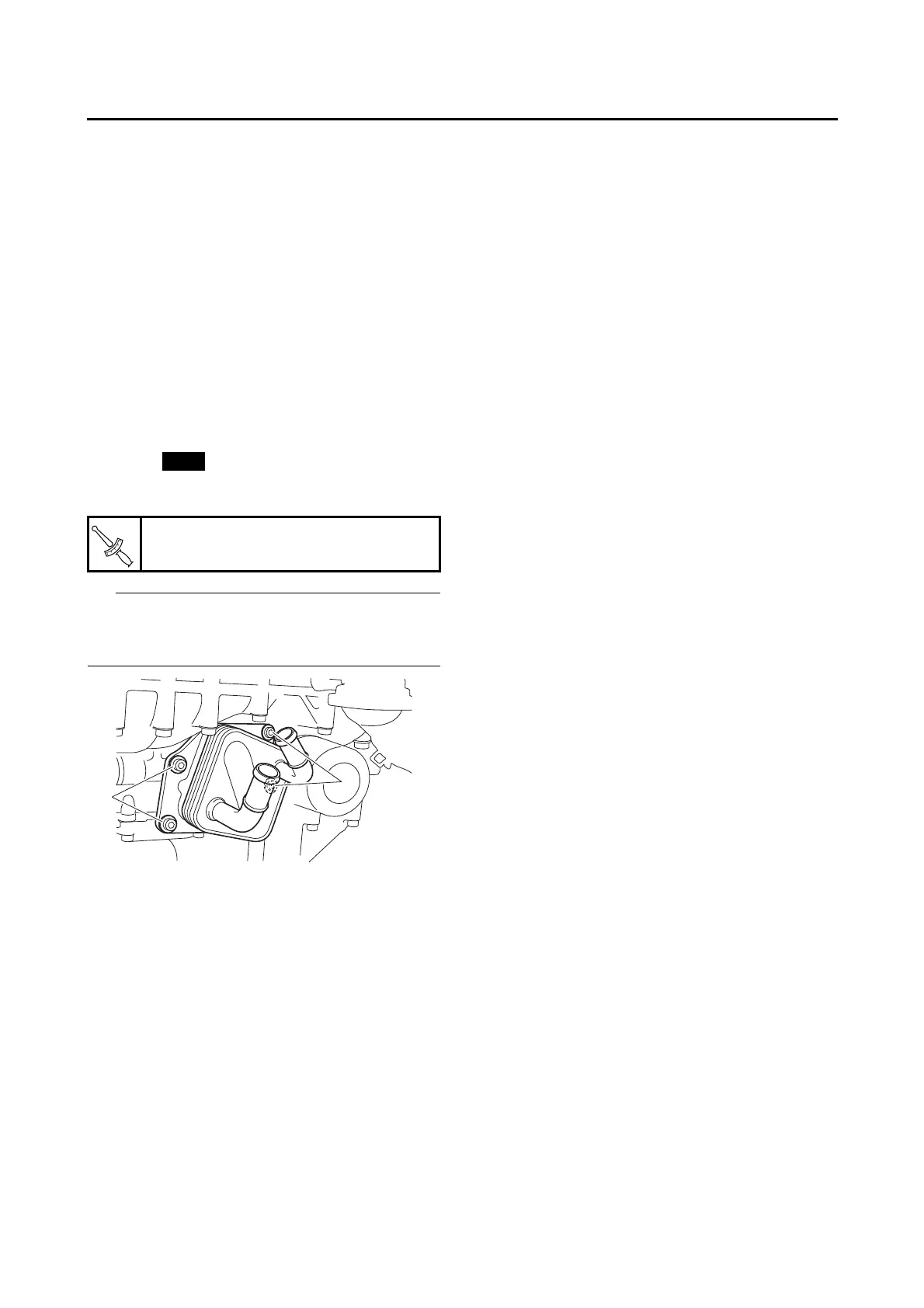

INSTALLING THE OIL COOLER
1. Clean:
• Mating surfaces of the oil cooler and the
crankcase
(with a cloth dampened with lacquer thinner)
2. Install:
• O-ring
• Oil cooler
• Oil cooler bolt 3 “1”
• Before installing the oil cooler, apply lithium-
soap-based grease to the O-ring.
• Make sure the O-ring is positioned properly.
3. Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Refer to “CHANGING THE COOLANT” on
page 3-27.
• Crankcase
(with the specified amount of the recom-
mended engine oil)
Refer to “CHANGING THE ENGINE OIL” on
page 3-24.
4. Check:
• Cooling system
Leaks Repair or replace any faulty part.
Refer to “INSTALLING THE RADIATOR” on
page 6-2.
5. Measure:
• Radiator cap valve opening pressure
Below the specified pressure Replace the
radiator cap.
Refer to “CHECKING THE RADIATOR” on
page 6-2.
Oil cooler bolt
10 N·m (1.0 kgf·m, 7.2 lb·ft)
1
1
