GENERAL CHASSIS (3)
4-17
EAS31384

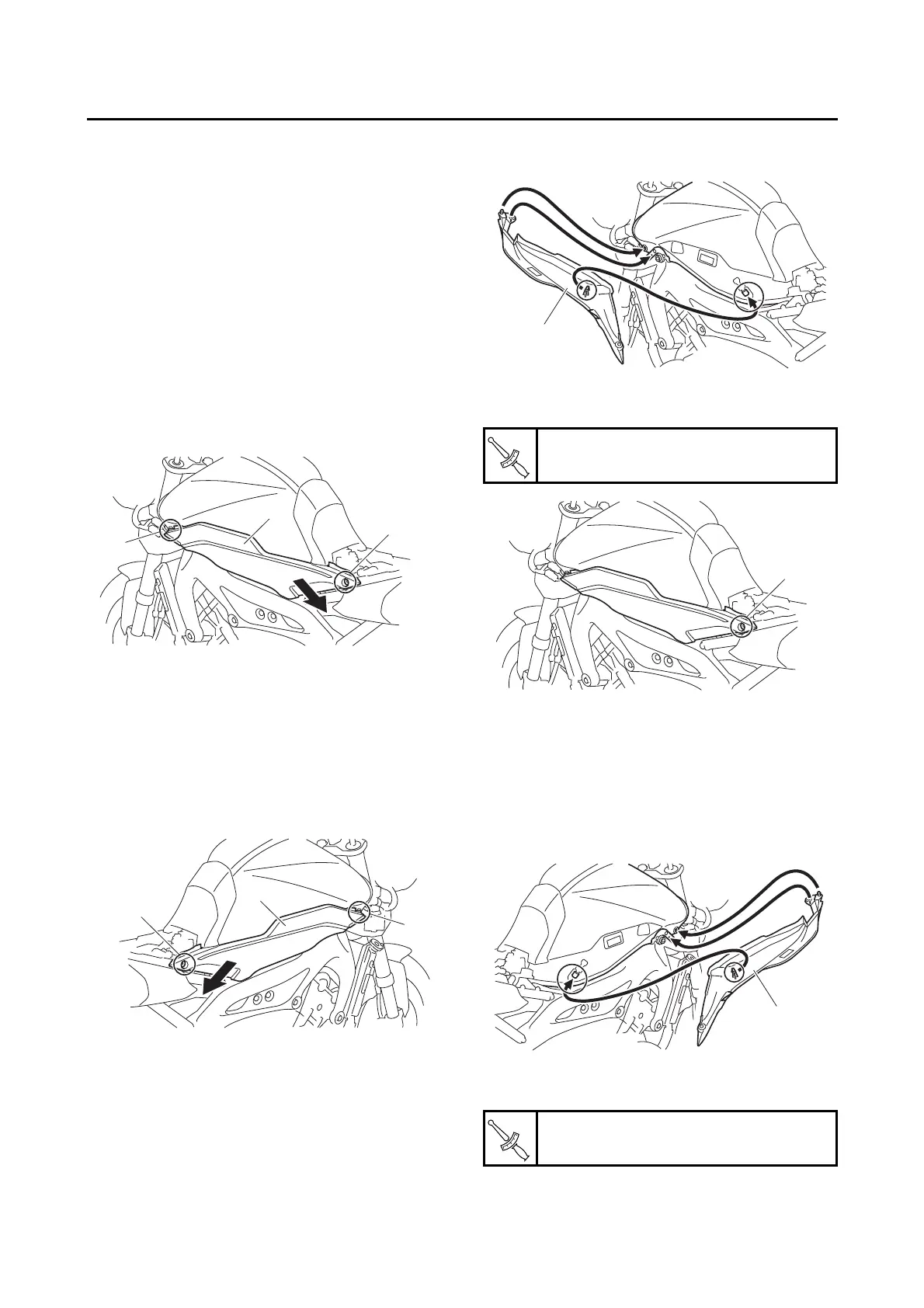

REMOVING THE FUEL TANK COVERS
1. Remove:
• Fuel tank front cover
• Front side panel
• Front side cowling
2. Remove:
• Passenger seat
• Rider seat
3. Remove:
• Fuel tank cover (left) “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the fuel tank cover bolt “2”
b. Disengage portion “a”, and then remove the
fuel tank cover by sliding it in the direction
shown in the illustration.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4. Remove:
• Fuel tank cover (right) “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the fuel tank cover bolt “2”
b. Disengage portion “a”, and then remove the
fuel tank cover by sliding it in the direction
shown in the illustration.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS31385
INSTALLING THE FUEL TANK COVERS
1. Install:
• Fuel tank cover (left) “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Insert the slot “a” into the projection “b”, and
then install the fuel tank cover as shown in
the illustration.
b. Install the fuel tank cover bolt “2”, and then
tighten the bolt to specification.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Install:
• Fuel tank cover (right) “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Insert the slot “a” into the projection “b”, and
then install the fuel tank cover as shown in
the illustration.
b. Install the fuel tank cover bolt “2”, and then
tighten the bolt to specification.
1
2
a
1
2
a
Fuel tank cover bolt
4.0 N·m (0.40 kgf·m, 2.9 lb·ft)
Fuel tank cover bolt
4.0 N·m (0.40 kgf·m, 2.9 lb·ft)
1
a
b
T
R
.
.
2
a
1
b
T
R
.
.
