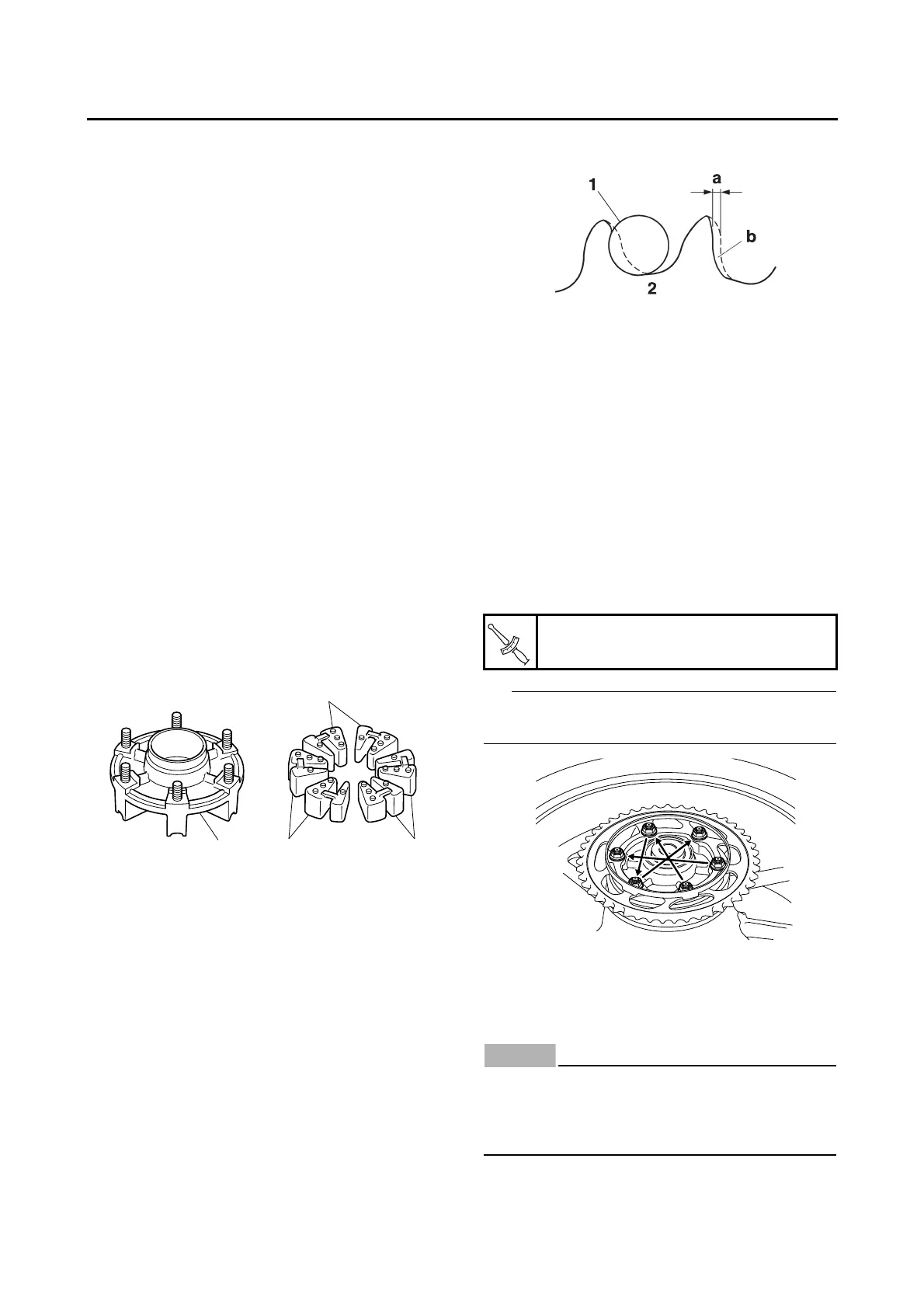

REAR WHEEL
4-31
EAS30159
CHECKING THE REAR WHEEL
1. Check:
• Wheel axle
• Wheel bearings
• Oil seals
Refer to “CHECKING THE FRONT WHEEL”
on page 4-21.
2. Check:
• Tire
• Rear wheel
Damage/wear  Replace.
Refer to “CHECKING THE TIRES” on page
3-16 and “CHECKING THE WHEELS” on
page 3-16.
3. Measure:
• Radial wheel runout
• Lateral wheel runout
Refer to “CHECKING THE FRONT WHEEL”
on page 4-21.
EAS30160
CHECKING THE REAR WHEEL DRIVE HUB
1. Check:
• Rear wheel drive hub “1”
Cracks/damage  Replace.
• Rear wheel drive hub dampers “2”
Damage/wear  Replace.
EAS30161
CHECKING AND REPLACING THE REAR
WHEEL SPROCKET
1. Check:
• Rear wheel sprocket
More than 1/4 tooth “a” wear  Replace the
drive sprocket, the rear wheel sprocket and
the drive chain as a set.
Bent teeth  Replace the drive sprocket, the
rear wheel sprocket and the drive chain as a
set.
2. Replace:
• Rear wheel sprocket
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the rear wheel sprocket nuts and the
rear wheel sprocket.
b. Clean the rear wheel drive hub with a clean
cloth, especially the surfaces that contact the
sprocket.
c. Install the new rear wheel sprocket.
TIP
Tighten the rear wheel sprocket nuts in stages
and in a crisscross pattern.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS30163
ASSEMBLING THE REAR WHEEL
NOTICE
ECA21340
• Do not drop the wheel sensor rotor or sub-
ject it to shocks.
• If any solvent gets on the wheel sensor ro-
tor, wipe it off immediately.
12
2
2
b. Correct
1. Drive chain roller
2. Rear wheel sprocket
Rear wheel sprocket nut
80 N·m (8.0 kgf·m, 58 lb·ft)
T
R
.
.
