CLUTCH
5-42
EAS30346

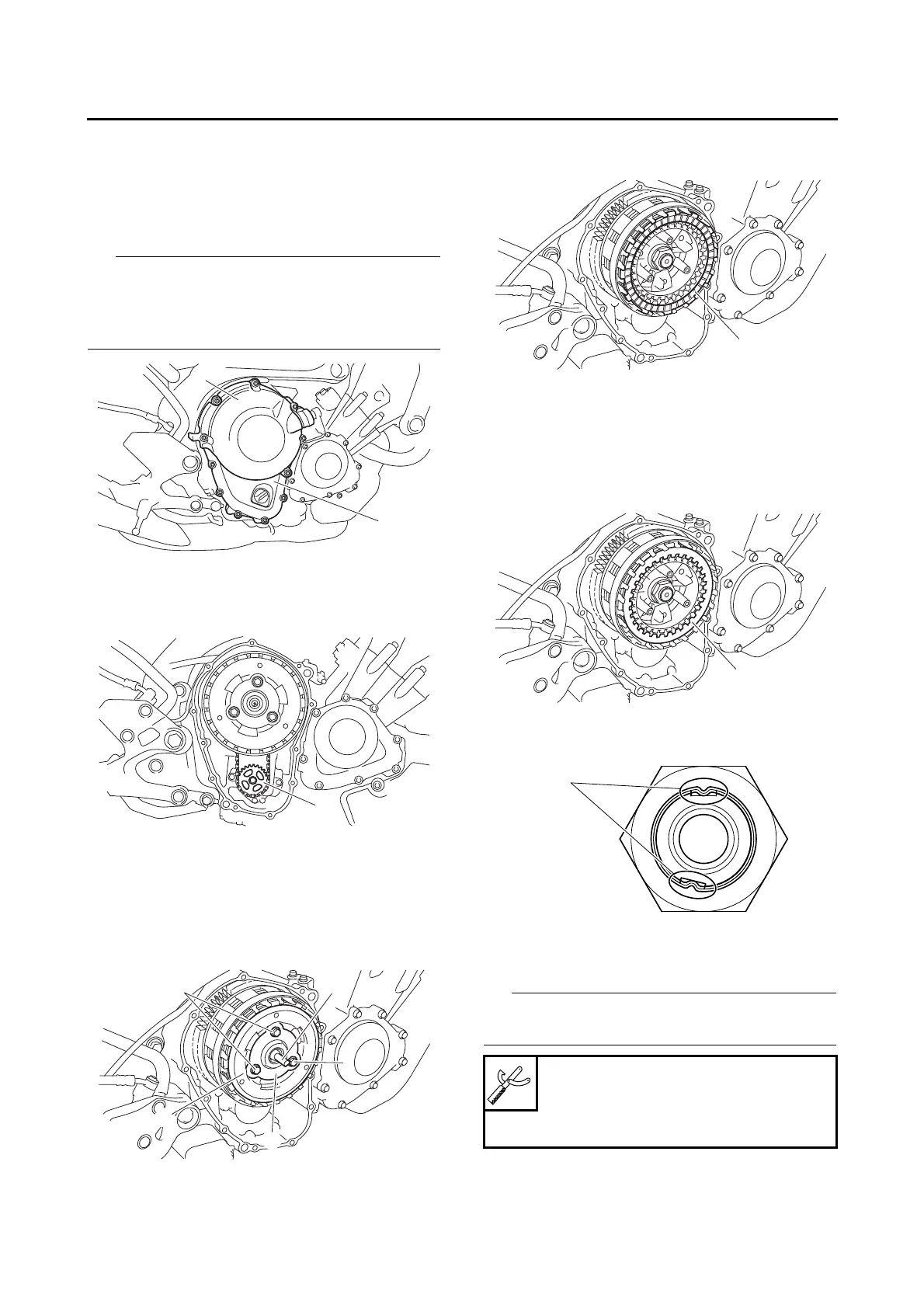

REMOVING THE CLUTCH
1. Remove:
• Cover “1”
• Clutch cover “2”
• Gasket
Loosen each bolt 1/4 of a turn at a time, in stag-
es and in a crisscross pattern.
After all of the bolts are fully loosened, remove
them.
2. Remove:
• Oil pump driven sprocket “1”
Refer to “OIL PUMP” on page 5-51.
3. Remove:
• Clutch spring bolts “1”
• Pressure plate 1 “2”
• Clutch springs
• Pressure plate 2 “3”
• Pull rod “4”
4. Remove:
• Friction plates 1 “1”
5. Remove:
• Clutch plate 1 “1”
• Clutch plates 2
• Friction plates 2
• Clutch damper spring
• Clutch damper spring seat
6. Straighten the clutch boss nut rib “a”.
7. Loosen:
• Clutch boss nut “1”
While holding the clutch boss “2” with the univer-
sal clutch holder “3”, loosen the clutch boss nut.
Universal clutch holder
90890-04086
Universal clutch holder
YM-91042
