ELECTRIC STARTER
5-34
EAS20052
ELECTRIC STARTER

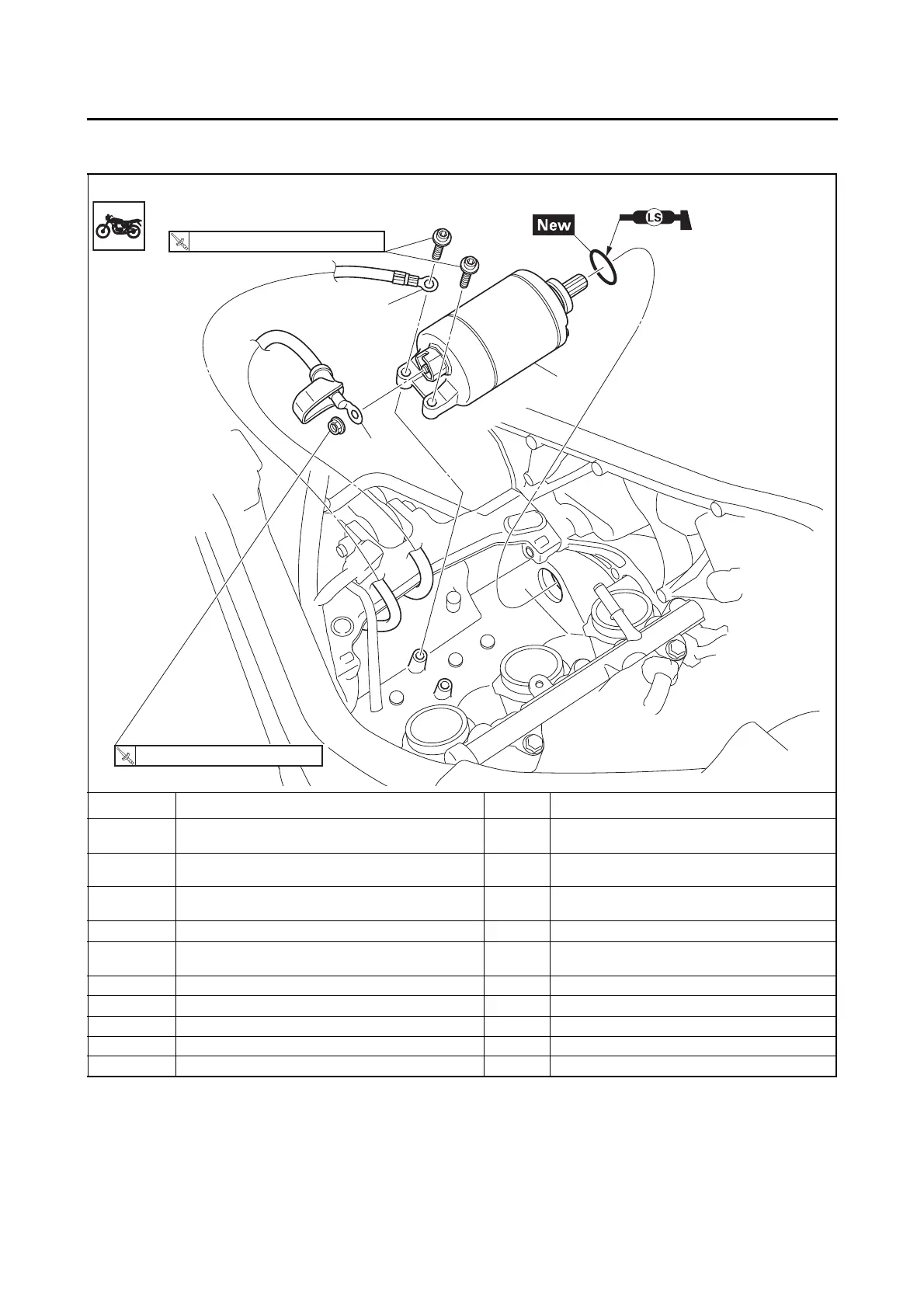

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Fuel tank front cover/Front side panel/Front side
cowling
Refer to “GENERAL CHASSIS (2)” on page
4-6.
Passenger seat/Rider seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank cover
Refer to “GENERAL CHASSIS (3)” on page
4-13.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case
Refer to “GENERAL CHASSIS (3)” on page
4-13.
Canister Refer to “FUEL TANK” on page 7-1.
Throttle bodies Refer to “THROTTLE BODIES” on page 7-5.
1 Starter motor lead 1 Disconnect.
2 Negative battery lead 1 Disconnect.
3 Starter motor 1
1
2
3
12 N・m (1.2 kgf・m, 8.7 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
To Next Page
