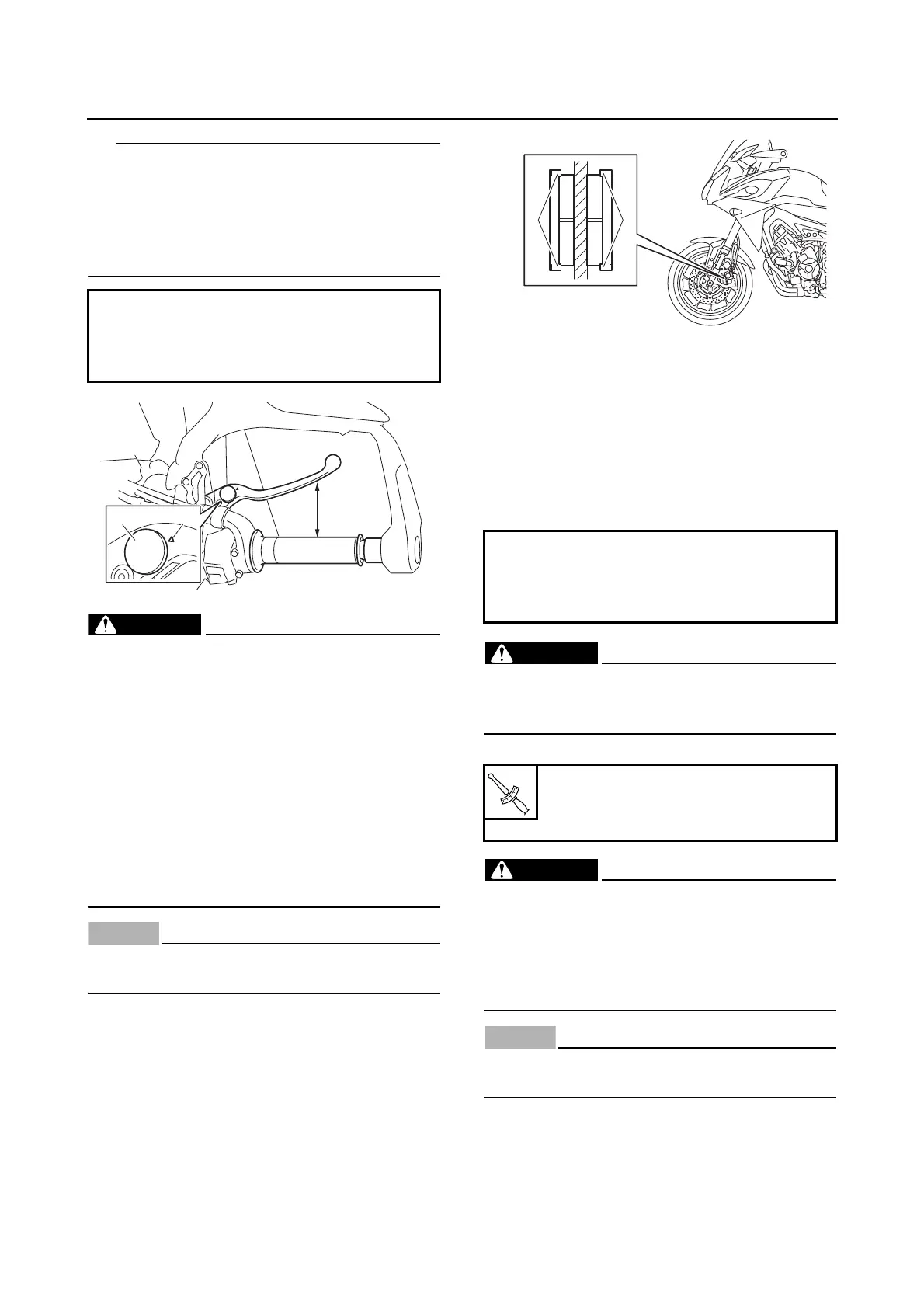

PERIODIC MAINTENANCE
3-14
TIP
• While pushing the brake lever forward, turn the
adjusting dial “1” until the brake lever is in the
desired position.
• Be sure to align the setting on the adjusting dial
with the arrow mark “2” on the brake lever hold-
er.
WARNING
EWA17050
• After adjusting the brake lever position,
make sure the pin on the brake lever holder
is firmly inserted in the hole in the adjusting
dial.
• A soft or spongy feeling in the brake lever
can indicate the presence of air in the brake
system. Before the vehicle is operated, the
air must be removed by bleeding the brake
system. Air in the brake system will consid-
erably reduce brake performance resulting
in loss of control and possibly cause an ac-
cident. Therefore, check and if necessary,
bleed the brake system.
NOTICE
ECA13490
After adjusting the brake lever position,
make sure there is no brake drag.
EAS30633
CHECKING THE FRONT BRAKE PADS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
• Front brake pad
Wear indicators “1” almost touch the brake
disc  Replace the brake pads as a set.
Refer to “FRONT BRAKE” on page 4-35.
EAS30631
ADJUSTING THE REAR DISC BRAKE
1. Adjust:
• Brake pedal position
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Loosen the locknut “1”.
b. Turn the adjusting bolt “2” in direction “a” or
“b” until the specified brake pedal position is
obtained.
WARNING
EWA13070
After adjusting the brake pedal position,
check that the end of the adjusting bolt “c” is
visible through the hole “d”.
c. Tighten the locknut “1” to specification.
WARNING
EWA17030
A soft or spongy feeling in the brake pedal
can indicate the presence of air in the brake
system. Before the vehicle is operated, the
air must be removed by bleeding the brake
system. Air in the brake system will consid-
erably reduce braking performance.
NOTICE
ECA13510
After adjusting the brake pedal position,
make sure there is no brake drag.
Position #1
Distance “a” is the largest.
Position #5
Distance “a” is the smallest.
5
4
3
2
1
21
a
Direction “a”
Brake pedal is raised.
Direction “b”
Brake pedal is lowered.
Rear brake master cylinder lock
nut
18 N·m (1.8 kgf·m, 13 lb·ft)
11
T
R
.
.
