SHIFT SHAFT
5-49
EAS20057
SHIFT SHAFT

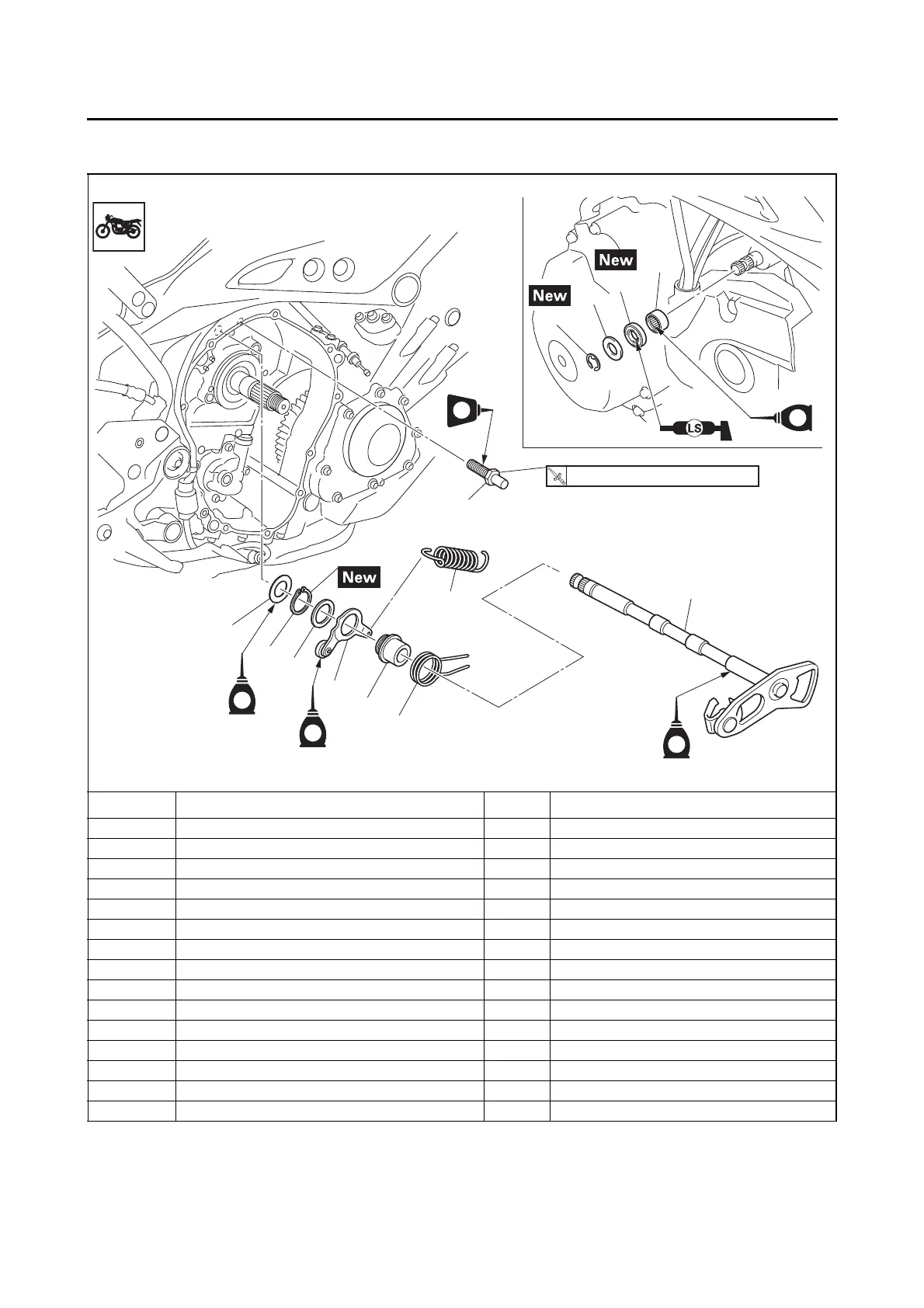

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Clutch assembly Refer to “CLUTCH” on page 5-38.
Shift arm Refer to “CHAIN DRIVE” on page 4-98.
1 Circlip 1
2Washer 1
3 Shift shaft 1
4Washer 1
5 Circlip 1
6Washer 1
7 Stopper lever 1
8 Stopper lever spring 1
9Collar 1
10 Shift shaft spring 1
11 Shift shaft spring stopper 1
12 Oil seal 1
13 Bearing 1
3
4
5
6
7
8
9
10
11
LT
E
E
1
2
12
13
E
E
22 N・m (2.2 kgf・m, 16 lb・ft)
