HANDLEBAR
4-69
EAS20033
HANDLEBAR

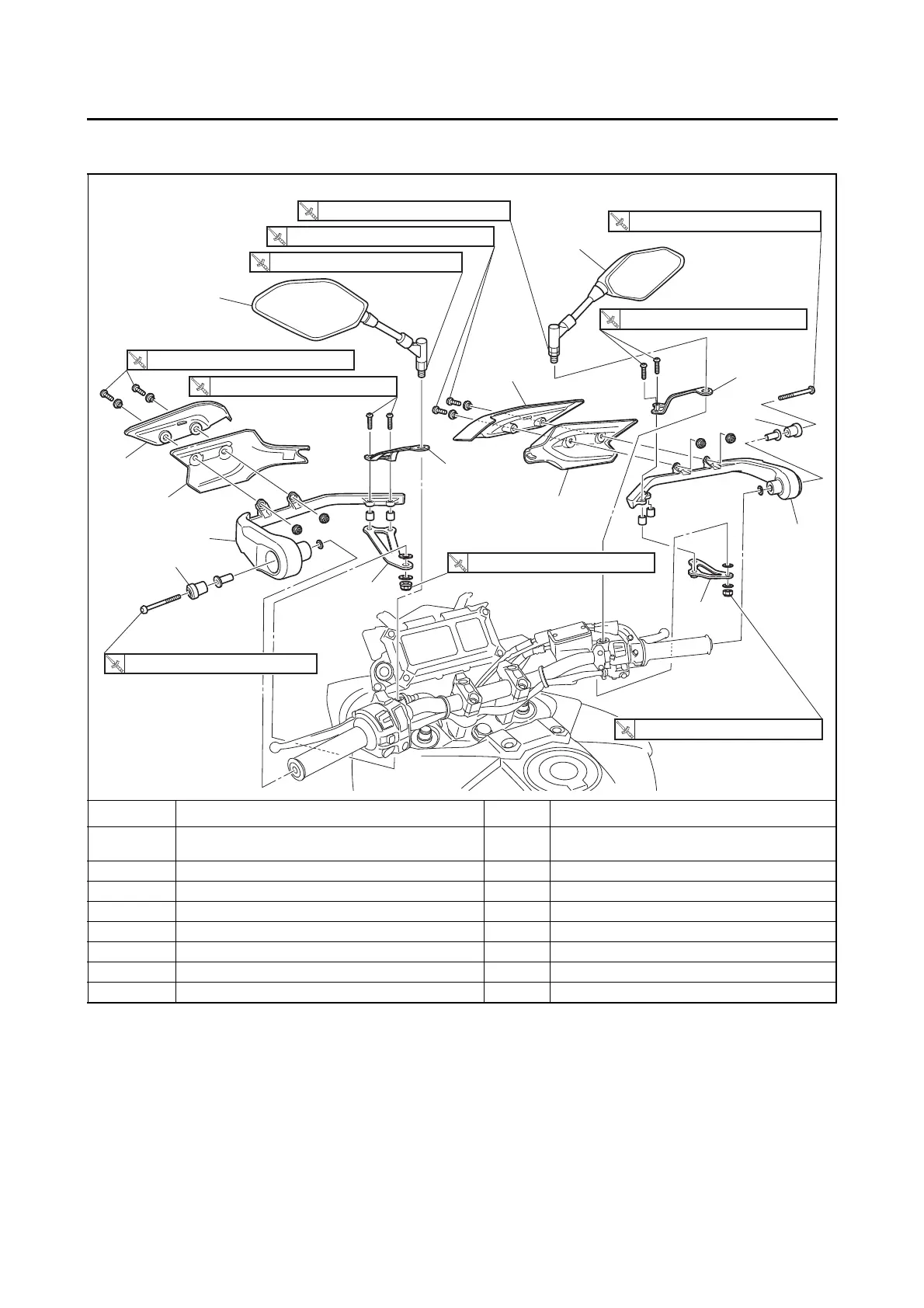

Removing the handlebar 1/2
Order Job/Parts to remove Q’ty Remarks
Windshield
Refer to “GENERAL CHASSIS (2)” on page
4-6.
1 Rearview mirror 2
2 Handguard 2
3 Grip end 2 2
4 Handlebar cover 2
5Lever cover 2
6 Upper handguard bracket 2
7 Lower handguard bracket 2
1
2
3
4
5
6
7
6
7
2
3
5
4
1
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
6 N・m (0.6 kgf・m, 4.3 lb・ft)
17 N・m (1.7 kgf・m, 12 lb・ft)
17 N・m (1.7 kgf・m, 12 lb・ft)
17 N・m (1.7 kgf・m, 12 lb・ft)
4.3 N・m (0.43 kgf・m, 3.1 lb・ft)
4.3 N・m (0.43 kgf・m, 3.1 lb・ft)
17 N・m (1.7 kgf・m, 12 lb・ft)
