GENERAL CHASSIS (1)
4-4
EAS30125

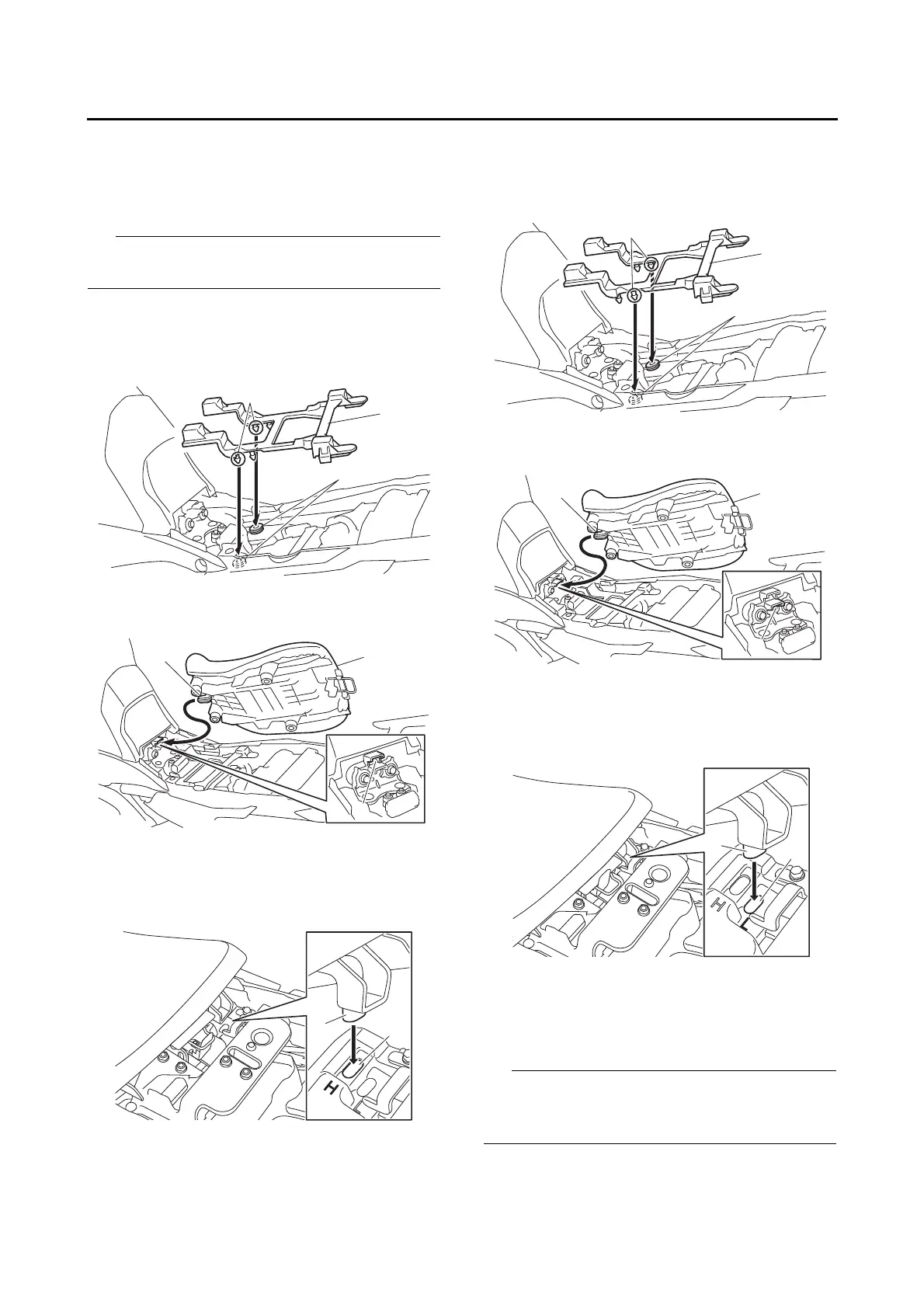

INSTALLING THE SEATS
1. Install:
• Rider seat height position adjuster “1”
• Rider seat “2”
TIP
The rider seat height can be adjusted to one of
two positions to suit the rider’s preference.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
To install the rider seat in the high position
a. Insert the projection “a” on the rider seat
height position adjuster into the grommet “b”.
b. Insert the projection “c” on the front of the rid-
er seat into the seat holder “d”.
c. Align the projection “e” on the bottom of the
rider seat with the “H” position slot “f”, and
then push the rear of the seat down to lock it
in place as shown.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
To install the rider seat in the low position
a. Insert the projection “a” on the rider seat
height position adjuster into the grommet “b”.
b. Insert the projection “c” on the front of the rid-
er seat into the seat holder “d”.
c. Align the projection “e” on the bottom of the
rider seat with the “L” position slot “f”, and
then push the rear of the seat down to lock it
in place as shown.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Install:
• Cap
• Passenger seat “1”
TIP
Insert the parts “a” on the rear of the passenger
seat into the seat holders “b” and then push the
front of the seat down to lock it in place.
b
1
a
2
c
d
e
f
a
b
1
c
d
2
e
f
