OIL PAN
5-56
EAS31068

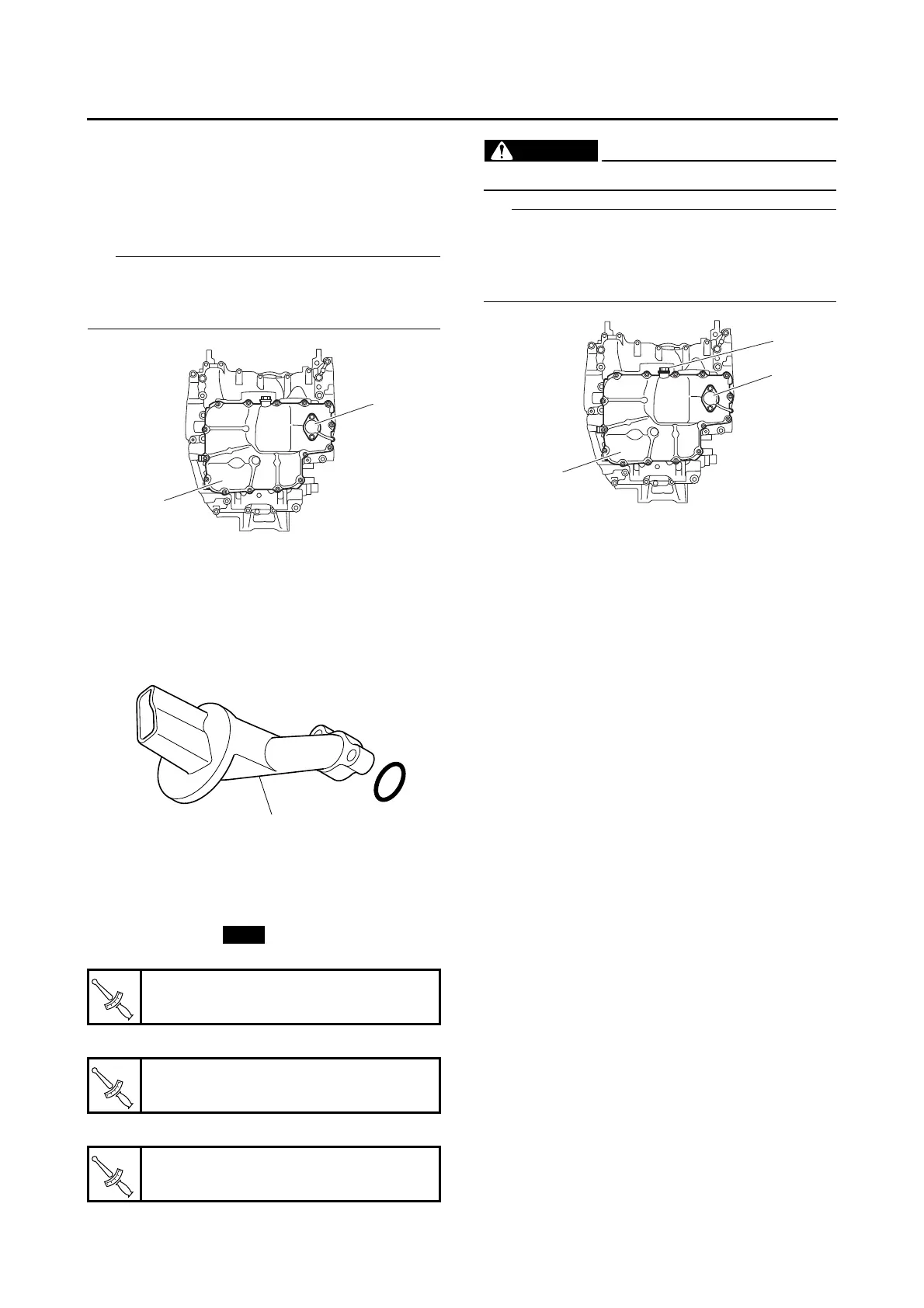

REMOVING THE OIL PAN
1. Remove:
• Oil level switch “1”
• Oil pan “2”
• Oil pan gasket
Loosen each bolt 1/4 of a turn at a time, in stag-
es and in a crisscross pattern. After all of the
bolts are fully loosened, remove them.
EAS31069
CHECKING THE OIL STRAINER
1. Check:
• Oil strainer “1”
Damage Replace.
Contaminants Clean with solvent.
EAS31070
INSTALLING THE OIL PAN
1. Install:
• Oil pan gasket
• Oil pan “1”
• Oil level switch “2”
• Engine oil drain bolt “3”
EWA12820
Always use new copper washers.
• Tighten the oil pan bolts in stages and in a
crisscross pattern.
• Lubricate the oil level switch O-ring with lithi-
um-soap-based grease.
Oil pan bolt
10 N·m (1.0 kgf·m, 7.2 lb·ft)
Oil level switch bolt
10 N·m (1.0 kgf·m, 7.2 lb·ft)
Engine oil drain bolt
43 N·m (4.3 kgf·m, 31 lb·ft)
