SIP User's Manual 136 Document #: LTRT-65412
MP-11x & MP-124
Notes:
• When a call release reason (defined in ''Configuring Reasons for
Alternative Routing'' on page 140) is received for a specific IP-to-Tel call,
an alternative Hunt Group for that call can be configured. This is
performed by assigning the call to an additional routing rule in the table
(i.e., repeat the same routing rule, but with a different Hunt Group ID).
• For available notations representing multiple numbers/digits for
destination and source prefixes, refer to ''Dialing Plan Notation for
Routing and Manipulation'' on page 377.
• You can also configure the 'IP to Hunt Group Routing' table using the ini
file table parameter PSTNPrefix (refer to ''Number Manipulation and
Routing Parameters'' on page 328).
¾ To configure the IP to Hunt Group Routing table:
1. Open the 'IP to Hunt Group Routing' page (Configuration tab > Protocol
Configuration menu > Routing Tables submenu > IP to Trunk Group Routing page
item).

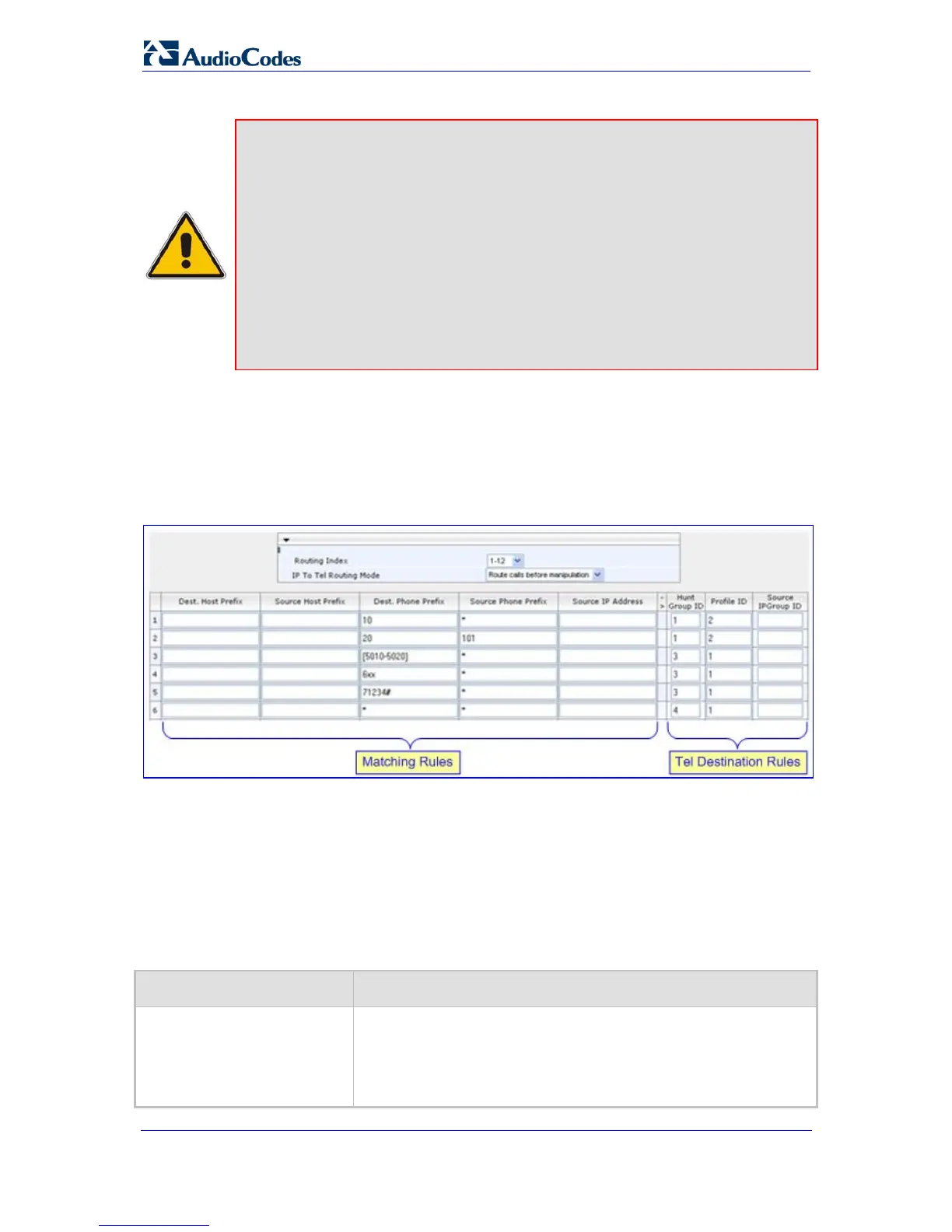

Figure 3-78: IP to Hunt Group Routing Page
2. From the 'Routing Index' drop-down list, select the range of entries that you want to
add.
3. Configure the table according to the table below.
4. Click the Submit button to save your changes.
5. To save the changes so they are available after a power failure, refer to ''Saving
Configuration'' on page 167.
Table 3-24: I
P to Hunt Group Routing Table Description
Parameter Description
IP to Tel Routing Mode
[RouteModeIP2Tel]
Determines whether to route IP calls to the Hunt Group before or
after manipulation of destination number (configured in ''Configuring
the Number Manipulation Tables'' on page 124).
 [0] Route calls before manipulation = IP-to-Tel calls are routed
before the number manipulation rules are applied (default).
