Version 5.8 409 September 2009
SIP User's Manual 9. IP Telephony Capabilities
9.6.2.2 Collecting Digits Mode
When automatic dialing is not defined, the device collects the digits.

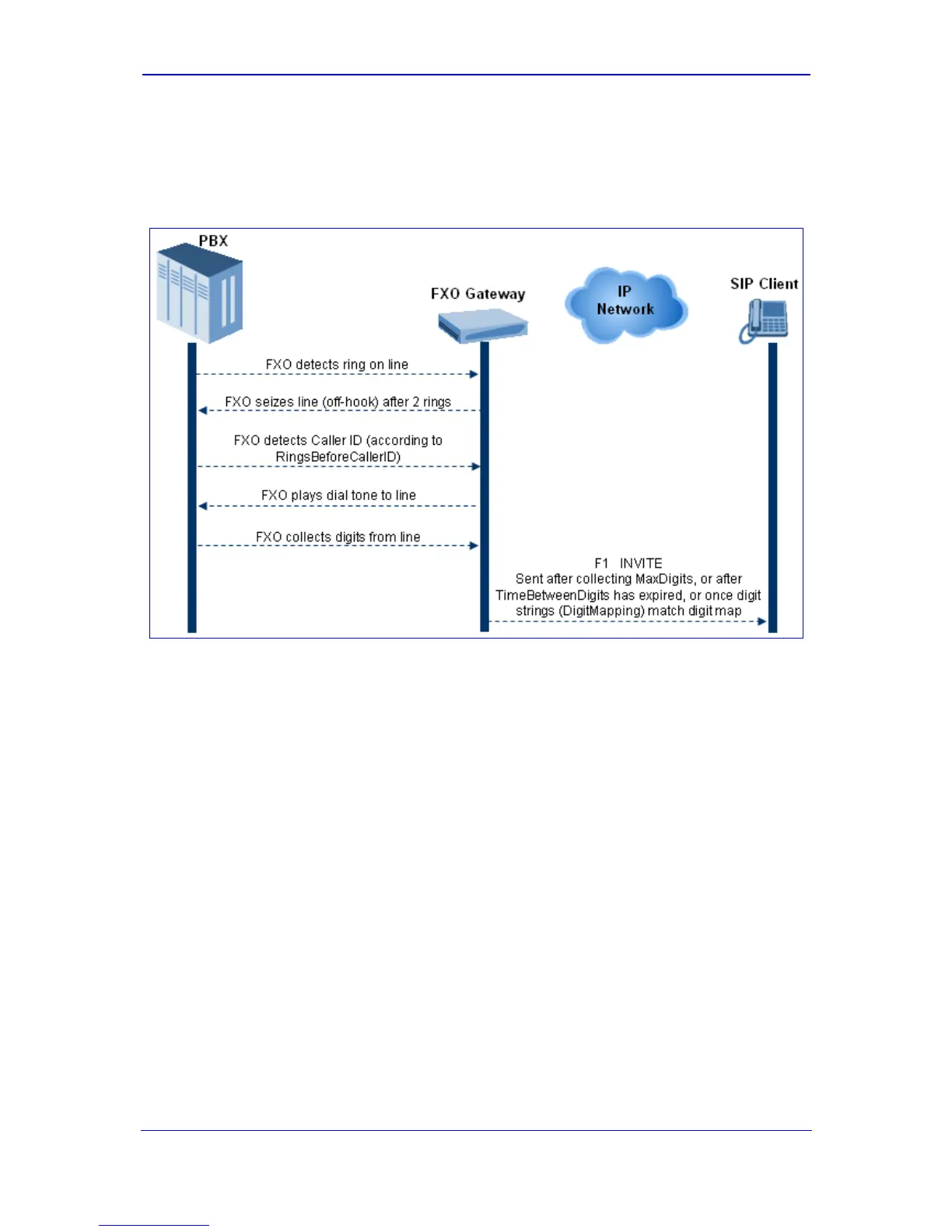

The SIP call flow diagram below illustrates the Collecting Digits Mode.
9.6.2.3 FXO Supplementary Services
The FXO supplementary services include the following:
îš„ Hold / Transfer toward the Tel side: The ini file parameter LineTransferMode must
be set to 0 (default). If the FXO receives a hook-flash from the IP side (using out-of-
band or RFC 2833), the device sends the hook-flash to the Tel side by performing one
of the following:
• Performing a hook flash (i.e., on-hook and off-hook)
• Sending a hook-flash code (defined by the ini file parameter HookFlashCode)
The PBX may generate a dial tone that is sent to the IP, and the IP side may dial digits
of a new destination.
îš„ Blind Transfer to the Tel side: A blind transfer is one in which the transferring phone
connects the caller to a destination line before ringback begins. The ini file parameter
LineTransferMode must be set to 1.
The blind transfer call process is as follows:
• FXO receives a REFER request from the IP side
