3.5.1.2 Viewing Ethernet Port Information
The 'Ethernet Port Information' page displays read-only information on the Ethernet
connection used by the device. This includes duplex mode, and speed. You can also
access this page from the 'Home' page (refer to ''Using the Home Page'' on page 54).
For detaile
d information on the Ethernet redundancy scheme, refer to Ethernet Interface
Redundancy. For detailed information on the Ethernet interface configuration, refer to
''Ethernet Interface Configuration'' on page 449.
¾ To view Ethernet port information:
 Open the ‘Ethernet Port Information’ page (Status & Diagnostics tab > Status &
Diagnostics menu > Ethernet Port Information page item).

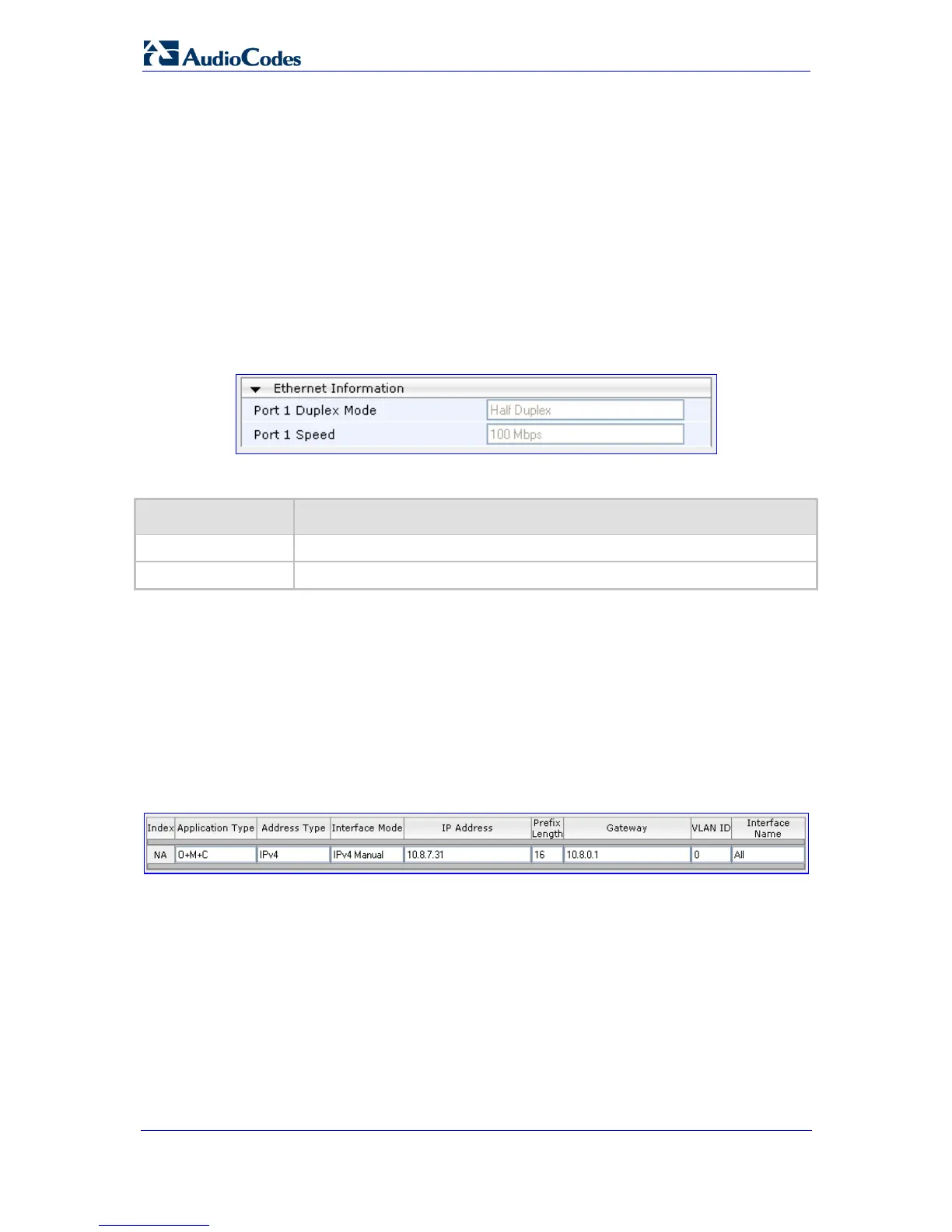

Figure 3-107: Ethernet Port Information Page
Table 3-32: Ethernet Port Information Parameters
Parameter Description
Port Duplex Mode Displays the Duplex mode of the Ethernet port (Half Duplex or Full Duplex).
Port Speed Displays the speed (in Mbps) of the Ethernet port (10 Mbps; 100 Mbps).
3.5.1.3 Viewing Active IP Interfaces
The 'IP Interface Status' page displays the device's active IP interfaces, which are
configured in the 'Multiple Interface Table' page (refer to ''Configuring the Multiple Interface
Table'' on page 58).
¾ To view the 'Active IP Interfaces' page:
îš„ Open the 'IP Interface Status' page (Status & Diagnostics tab > Status &
Diagnostics menu > IP Interface Status page item).
