SIP User's Manual 186 Document #: LTRT-65412
MP-11x & MP-124
3.5.2.5 Viewing IP Connectivity
The 'IP Connectivity' page displays online, read-only network diagnostic connectivity
information on all destination IP addresses configured in the 'Tel to IP Routing' page (refer
to ''Configuring the Tel to IP Routing Table'' on page 131).
Notes:
• This information is available only if the parameter 'Enable Alt Routing Tel
to IP'/AltRoutingTel2IPMode (refer to ''Configuring Routing General
Parameters'' on page 130) is set to 1 (Enable) or 2 (Status Only).
• The information in columns 'Quality Status' and 'Quality Info' (per IP
address) is reset if two minutes elapse without a call to that destination.
¾ To view the IP connectivity information:
1. In the 'Routing General Parameters' page, set the parameter 'Enable Alt Routing Tel to
IP' (or ini file parameter AltRoutingTel2IPEnable) to Enable [1] or Status Only [2].
2. Open the 'IP Connectivity' page (Status & Diagnostics tab > Gateway Statistics
menu > IP Connectivity page item).

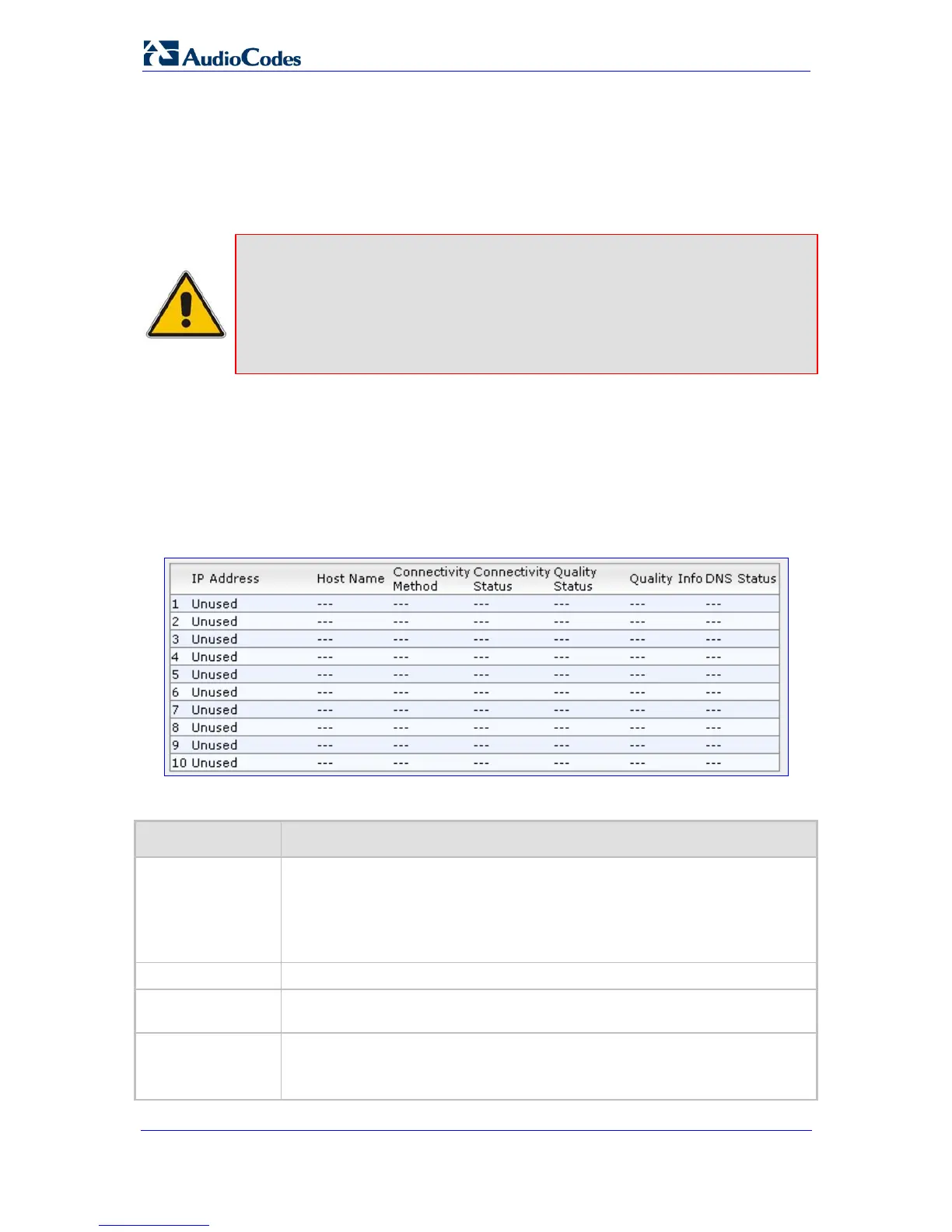

Figure 3-115: IP Connectivity Page
Table 3-36: IP Connectivity Parameters
Column Name Description
IP Address
The IP address can be one of the following:
 IP address defined as the destination IP address in the 'Tel to IP Routing'
table.
 IP address resolved from the host name defined as the destination IP
address in the 'Tel to IP Routing' table .
Host Name
Host name (or IP address) as defined in the 'Tel to IP Routing' table .
Connectivity
Method
The method according to which the destination IP address is queried
periodically (ICMP ping or SIP OPTIONS request).
Connectivity
Status
The status of the IP address' connectivity according to the method in the
'Connectivity Method' field.
 OK = Remote side responds to periodic connectivity queries.
