3.5.2.2 Viewing Call Routing Status
The 'Call Routing Status' page provides you with information on the current routing method
used by the device. This information includes the IP address and FQDN (if used) of the
Proxy server with which the device currently operates.
¾ To view the call routing status:
îš„ Open the 'Call Routing Status' page (Status & Diagnostics tab > Gateway Statistics
menu > Calls Routing Status page item).

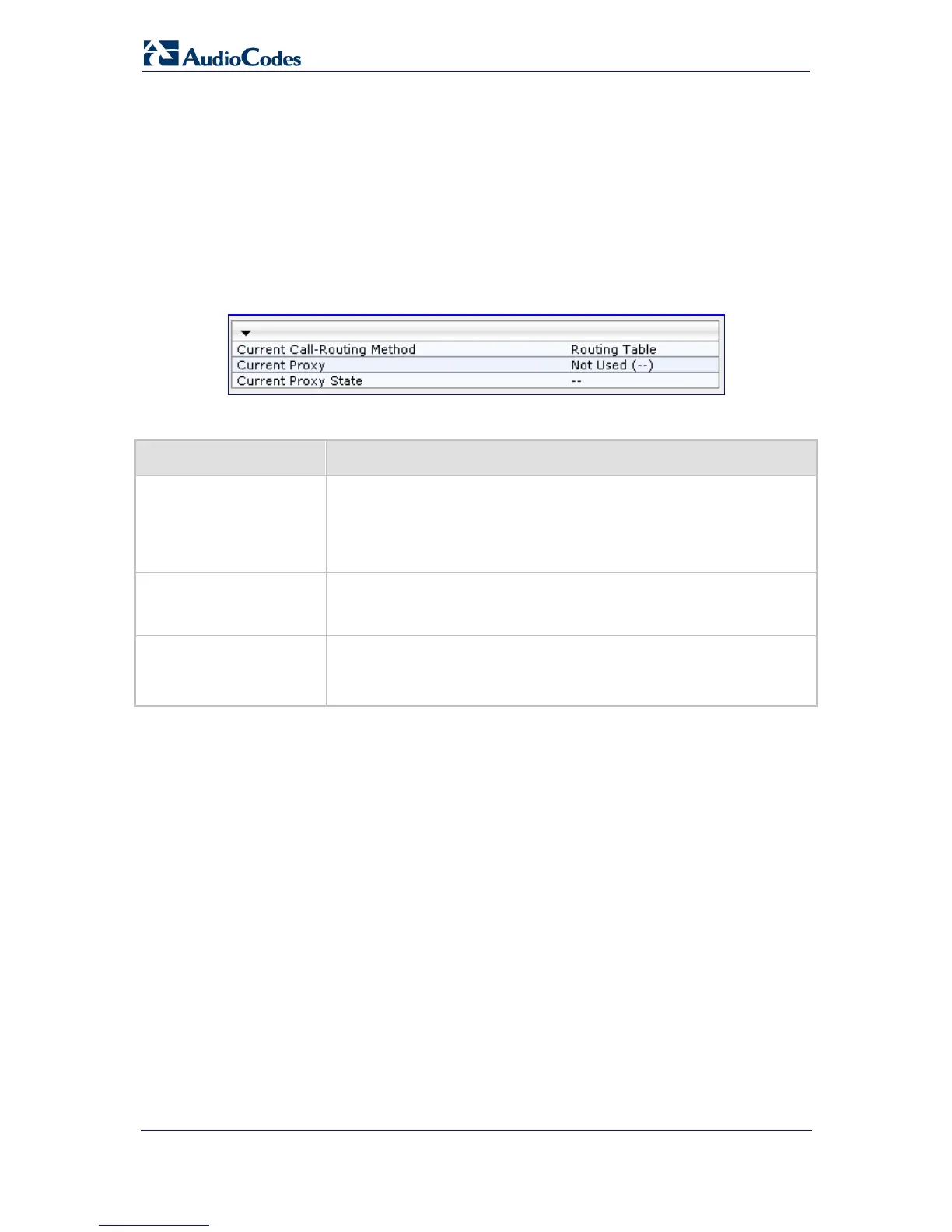

Figure 3-112: Call Routing Status Page
Table 3-34: Call Routing Status Parameters
Parameter Description
Current Call-Routing
Method
 Proxy = Proxy server is used to route calls.
 Routing Table preferred to Proxy = The 'Tel to IP Routing' table takes
precedence over a Proxy for routing calls ('Prefer Routing Table'
parameter is set to 'Yes' as described in ''Configuring Proxy and
Registration Parameters'' on page 94).
Current Proxy
 Not Used = Proxy server isn't defined.
 IP address and FQDN (if exists) of the Proxy server with which the
device currently operates.
Current Proxy State
 N/A = Proxy server isn't defined.
 OK = Communication with the Proxy server is in order.
 Fail = No response from any of the defined Proxies.
3.5.2.3 Viewing Registration Status
The 'Registration Status' page displays whether the device or endpoints are registered to a
SIP Registrar/Proxy server.
