QX50/QX200/QX2000; (SW Version 6.0.x) 113
QX50/QX200/QX2000 Manual II: Administrator’s Guide
• Custom allows manually defining the Registration Timeout, Registration Failure Timeout, Transaction Duration and Session refresh timeout
SIP timers (in seconds).
SIP Aliases
This page is used to create a list of QX IP PBX's hostnames register
on remote DNS servers. This list will be used to identify SIP
packets received from remote servers where QX IP PBX is
registered with different names.
The Host aliases for SIP page consists of a table where QX IP
PBX's aliases are listed. Add opens the Add Entry page where a
new alias name for QX IP PBX should be defined.

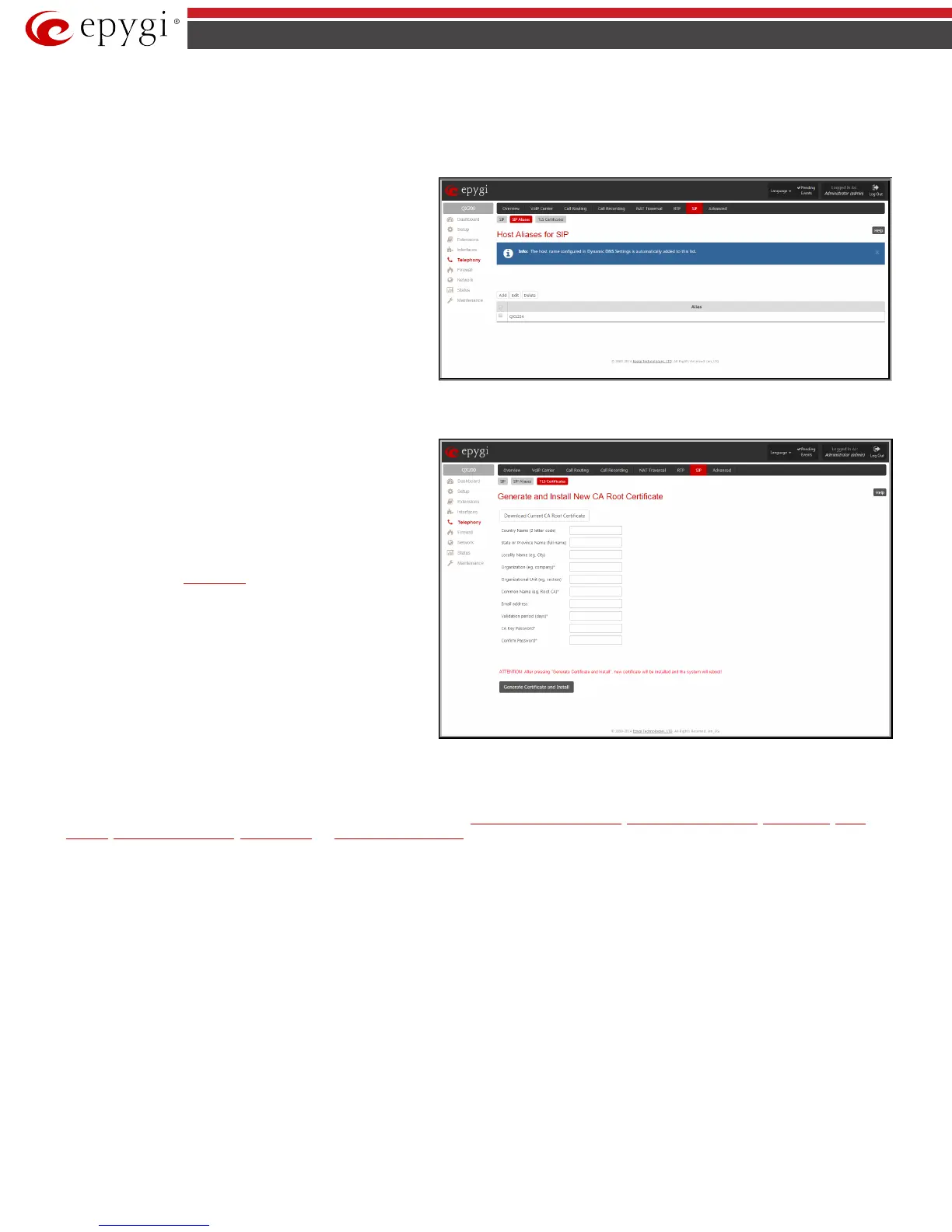

Fig.II- 167: Host aliases for SIP page
TLS Certificates
Generate and Install New CA Root Certificate
page is used
to define, generate and install a new CA root certificate for SIP TLS
traffic. All fields in this page require root certificate specific
information.
The General Certificate and Install button is used to generate a
new CA root certificate based on the defined data and to install it
on the QX IP PBX. QX IP PBX will get rebooted automatically once
the new certificate is installed. You may download the actual copy
of the certificate from
SIP Settings page.
To ensure a secure TLS connection with the QX IP PBX's defined
CA root certificate, both sides should have the same certificate
installed. If the end user is an IP phone, you may activate the TLS
certificate update mechanism from it to obtain the latest certificate
generated by the QX IP PBX. If the end user is a server or other
device, you may download the certificate from the QX IP PBX and
apply it manually on the remote side.
The Download Current CA Root Certificate
download the actual CA root certificate in a .crt format.
Fig.II- 168: Generate and Install New CA Root Certificate page
Advanced Settings
The Advanced Settings page allows you to configure the following settings:
Voice Mail Common Settings, RTP Streaming Channels, Gain Control, 3PCC
Settings, RADIUS Client Settings, Dial Timeout and Call Quality Notification.
Voice Mail Common Settings
The Voice Mail Recording Codec page is used to configure the codec for the Voice Mail recording and other settings related to the voicemail to email and
FAX to email sending. It offers the following components:
The Recording Codec drop down list contains the existing codecs for voice mail compression. Changing the Voice Mail recording codec will directly affect
the allocated memory size for users.
Email Subject for voice field is used to when user enables Send new voice messages via e-mail option from his personal Voice Mail Settings. In this
field you may define a flexible subject for all emails sent from the QX IP PBX and carrying the voice mails.
