Number of Records
displays the current number of statistics
entries in the table. For successful calls, Total Duration,
Maximum Duration, Average Duration and Minimum Duration
statistics are displayed on top of the table.
The Call History
: Successful Calls, Missed Calls and
Unsuccessful Outgoing Calls pages consist of the general
information on successful, missed and unsuccessful calls, search
fields and the calls table. The Filter button performs searching
within the statistics tables. The search may be done with several
criteria at the same time.
The following search criteria are available:
• The text fields From and To are used for the search by Call
Start Time. The data must be entered in the format dd-mm-
yyyy hh:mm:ss. The time criteria are optional, if it is not
needed, leave the text fields empty. The From field must
indicate an earlier date and time from that which is indicated
in the To field. Otherwise the error message "Minimal date
should be less than maximal date" prevents filtering and
searching.
• The From and To drop down lists offer a search by the Call
Duration, specified by the list of values. The field From must
indicate a shorter duration than the field To. Otherwise the
error message "Minimal duration should be less than maximal
duration" prevents statistics filtering.
• The text fields Calling Phone and Called Phone require the
calling and called party's SIP address, extension number or
PSTN number as search criterion. Wildcard symbols are

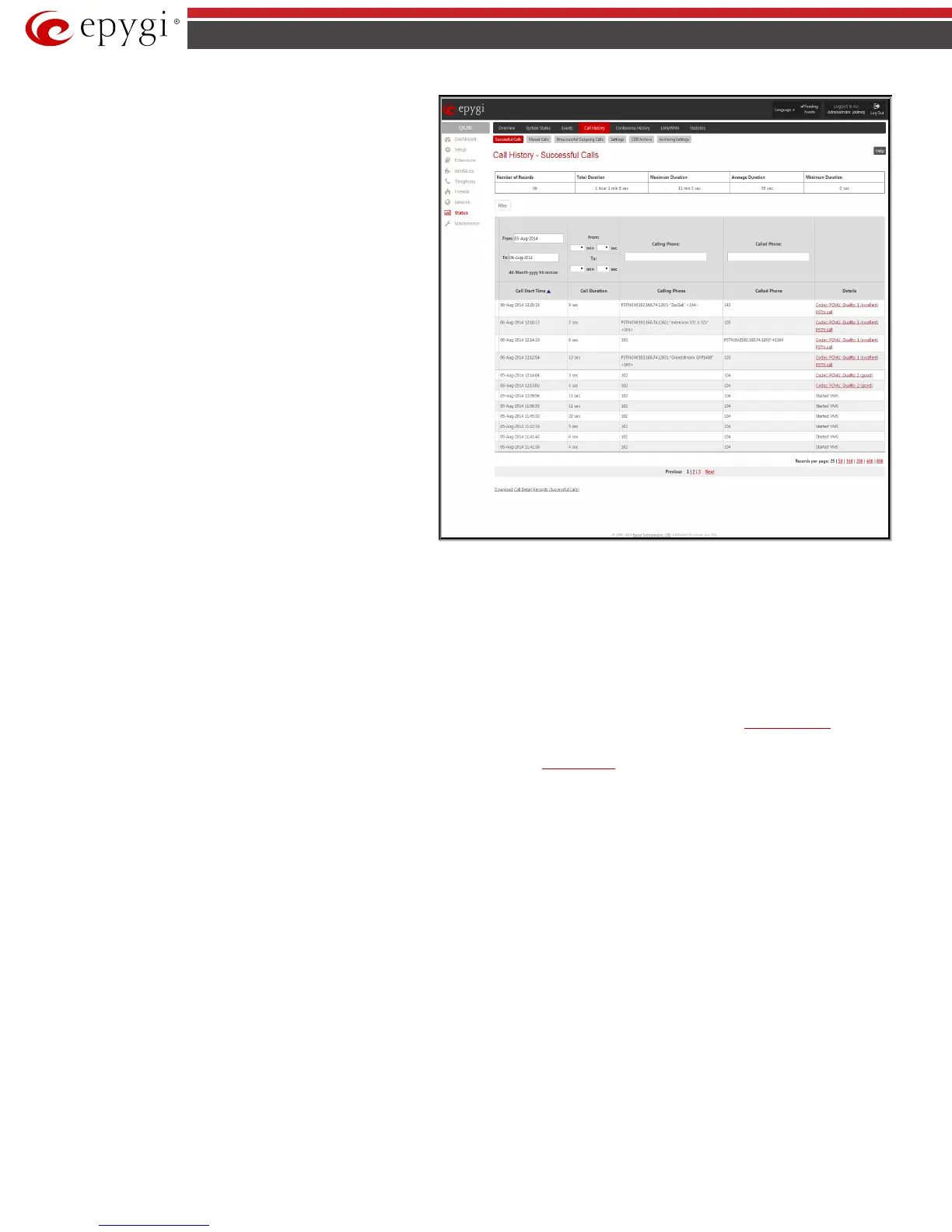

Fig.II- 247: Call History – Successful Calls page
The Call History: Successful Calls, Missed Calls and Unsuccessful Outgoing Calls tables are lists of successful, missed and unsuccessful incoming and
outgoing calls and their parameters (Call Start Time, Call Duration, Call destinations). Each column heading in the tables is a link. By clicking on the column
heading, the table will be sorted by the selected column. Upon sorting (ascending or descending), arrows will be displayed close to the column heading.
The Details column (available for the administrator) is only present in Successful Calls table and provides the following information:
• Brief information about the call quality, voice codec used to receive and transmit packets and the close call reason. The close call reason appears
to provide more information about the call termination reason which can be a network problem, termination by one of the call parties, voice
mail service activation, etc. Clicking on the details information will open the RTP Statistics page where all RTP parameters of established call are
provided.
• Authenticated By information details the callers that passed an authentication on the QX IP PBX as configured in the Local AAA Table.
• Information about FAX statistics for the calls that have a FAX transmission handled. It only appears when there was a FAX transmission during
the call. Clicking on the FAX details link in the Details column will move to the
FAX Statistics page.
The Call Detail column is present only in the Unsuccessful Calls table and indicates the reason why the call was unsuccessful.
The Filter performs a search procedure by the selected criteria. The search may be done with several criteria at the same time.
The Records per page are used to select the number of displayed statistic records per page. The Previous and Next can be utilized to switch between
these pages.
The Download Call Detail Records links are available below for all Call History tables (for administrator's access only) and allows you to download the
displayed Call History in a text file.
Call History Settings
The CDR Settings page offers the following input options:
The Enable Call Reporting checkbox enables Call History reporting. The selected number of statistics entries will be displayed in the Call History tables.
