• The From and To drop down lists offer a search by the Conference Duration, specified by the list of values. The field From must indicate a shorter
duration than the field To. Otherwise the error message "Minimal duration should be less than maximal duration" prevents statistics filtering.
• The From and To drop down lists offer a search by the Participant Count, specified by the list of values. The field From must indicate a shorter count
than the field To. Otherwise the error message "Minimal count should be less than maximal count" prevents statistics filtering.
• The text fields Activation Reason and Activation Details require the reason and the details of the conference call activation to be defined.
Number of Records displays the current amount of conference Call History entries in the table. For Conferences and Successful Calls pages Total
Duration, Maximum Duration, Conf Average Duration and Minimum Duration statistics are organized at the top of the table.
The Records per page are used to select the number of displayed conference call statistic records per page. The Previous and Next can be utilized to
switch between these pages.
The Download Call Detail Records (Conferences) links are available below for all Conference Call History tables and allows you to download the
displayed conference Call History in a text file.
Successful Calls and Unsuccessful Outgoing Calls
Successful Calls
Unsuccessful Outgoing Calls
successful and unsuccessful outgoing calls and their parameters
(ConfID- Activation Time, Call Start Time, Call Duration, Calling
Phone and Called Phone). Each column heading in the tables is
created as a link. By clicking on the column heading, the table will be
sorted by the selected column. Upon sorting (ascending,
descending) arrows will be displayed close to the column heading.
The Details column is only present in Successful Calls table and
provides the following information:
• Brief information about the call quality, voice codec used to
receive and transmit packets and the close conference call
reason. The close conference call reason appears to provide
more information about the call termination reason which
can be a network problem, termination by one of the
conference call parties, voice mail service activation, etc.
Clicking on the details information will open the
RTP
Statistics page where all RTP parameters of established
conference call are provided.
• Authenticated By information details the conference
participants that passed an authentication on the QX IP PBX
as configured in the Local AAA Table.

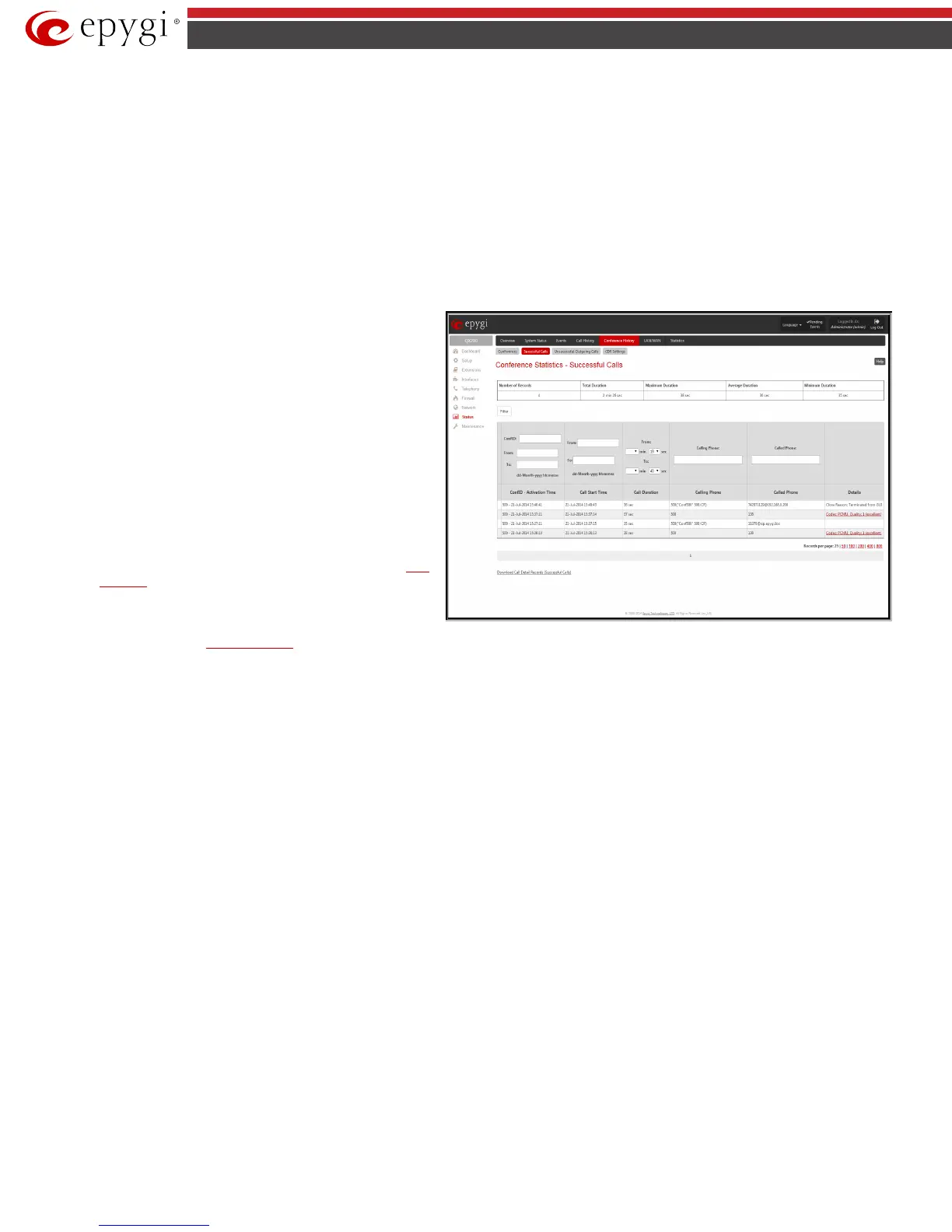

Fig.II- 254: Conference History-Successful Calls page
The Call Detail column is present only in the Unsuccessful Outgoing Calls table and indicates the reason why the call was unsuccessful.
The Filter button performs searching within the statistics tables. The search may be done with several criteria at the same time.
The following search criteria are available:
• The text fields ConfID, From and To are used for the search by ConfID- Activation Time. ConfID requires the unique ID of the conference. For
From and To fields the data must be entered in the format dd-mm-yyyy hh:mm:ss. The time criteria are optional, if it is not needed, leave the
text fields empty. The From field must indicate an earlier date and time from that which is indicated in the To field. Otherwise the error
message "Minimal date should be less than maximal date" prevents filtering and searching.
• The text fields From and To drop down lists offer a search by the Call Start Time. The data must be entered in the format dd-mm-yyyy
hh:mm:ss. The time criteria are optional, if it is not needed, leave the text fields empty. The From field must indicate an earlier date and time
from that which is indicated in the To field. Otherwise the error message "Minimal date should be less than maximal date" prevents filtering and
searching.
• The From and To drop down lists offer a search by the Call Duration, specified by the list of values. The field From must indicate a shorter
duration than the field To. Otherwise the error message "Minimal duration should be less than maximal duration" prevents statistics filtering.
• The text fields Calling Phone and Called Phone require the calling and called conference party's SIP address, extension number or PSTN
number as search criterion. Wildcard symbols are allowed here.
The Records per page are used to select the number of displayed statistic records per page. The Previous and Next can be utilized to switch between
these pages.
The Download Call Detail Records links are available below for all Conference Call History tables and allows you to download the displayed Call History
in a text file.
CDR Settings
The CDR Settings page is only displayed when an administrator is logged in. The conference CDR Settings page offers the following input options:
