PSTN Channel Usage
The trunk checkboxes are used to select the port number(s) over which the FXO traffic chart will be built. At least one Trunk checkbox should be selected,
otherwise error message appears.
Please Note: The PSTN Channel Usage page is not available for QX2000.
The FXO Channel Usage Statistics page consists of following components used to define the chart parameters:
Trunk checkboxes are used to select the FXO line number(s) over which the FXO traffic chart will be built. At least one Trunk checkbox should be selected,
otherwise error message appears.
Time range of statistic table
drop down list includes the period
(in days) statistics data that is to be collected and the
corresponding diagram chart that is to be built.
Incoming Calls and Outgoing Calls checkboxes are used to
select whether the FXO traffic statistics for only incoming or
outgoing or for both type of calls should be displayed in the
diagram chart.
Maximum Active Calls checkbox is used to have the number of
maximum active calls displayed in the diagram chart.
At least one of these checkboxes should be selected, otherwise
error message appears.
Show
button is used to generate an FXO channels usage diagram
chart over the parameters selected above.

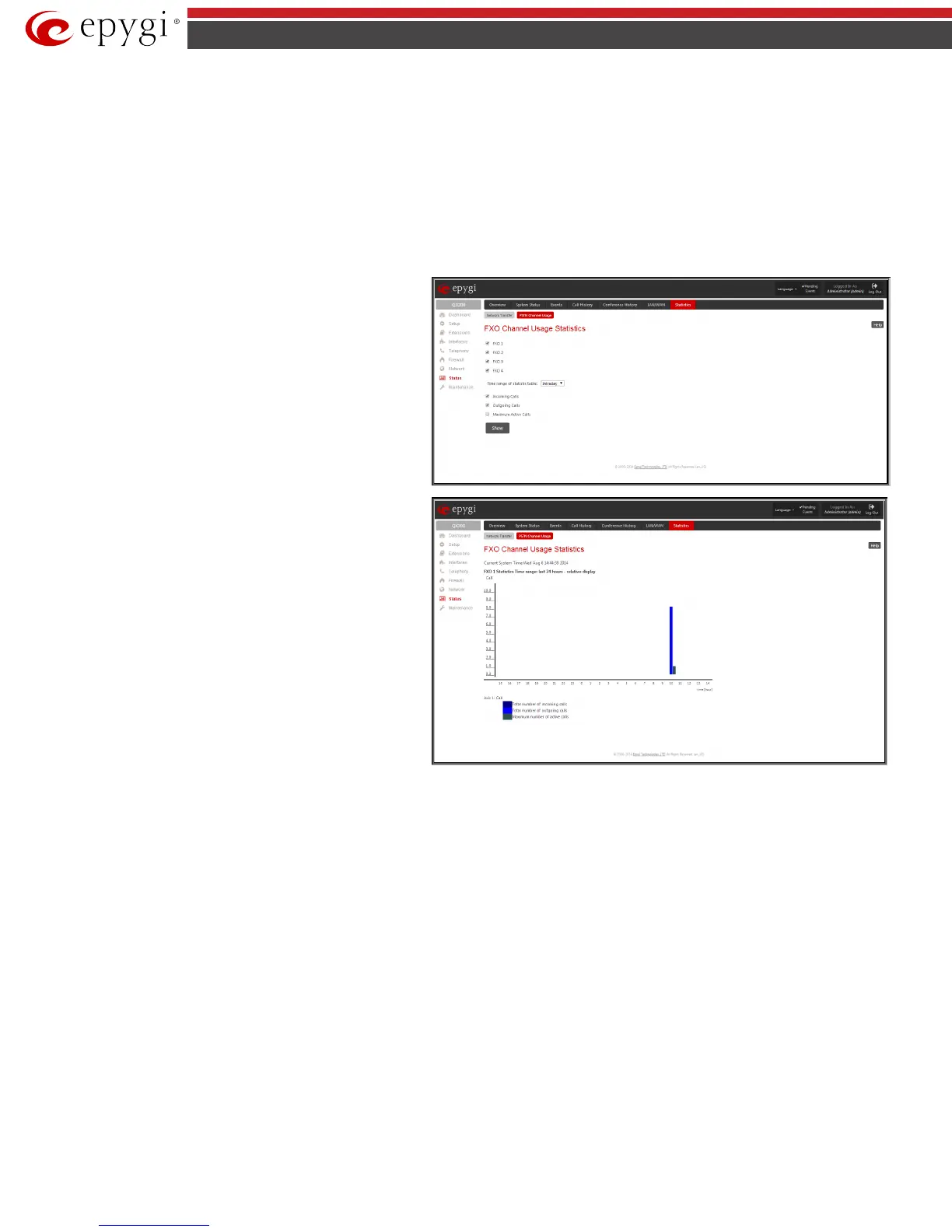

Fig.II- 260: FXO Channel Usage Statistics page
When this button is pressed,
FXO Channel Usage Statistics
appears. It represents dependency between the time frame and
the number of calls performed during that period. Additionally it
may display the maximum number of calls performed in the
selected time frame.
Fig.II- 261: FXO Channel Usage Statistics page
