QX50/QX200/QX2000 Manual II: Administrator’s Guide
System Status
General Information
The General Information page includes the following information:
• Uptime duration -
Period QX IP PBX is running since last
reboot.
• Device hostname - QX IP PBX device host name.
• Application Software - Software and file system versions
of the QX IP PBX.
• Language Pack – this field is present only when the
custom language pack is uploaded and it indicates the
version.

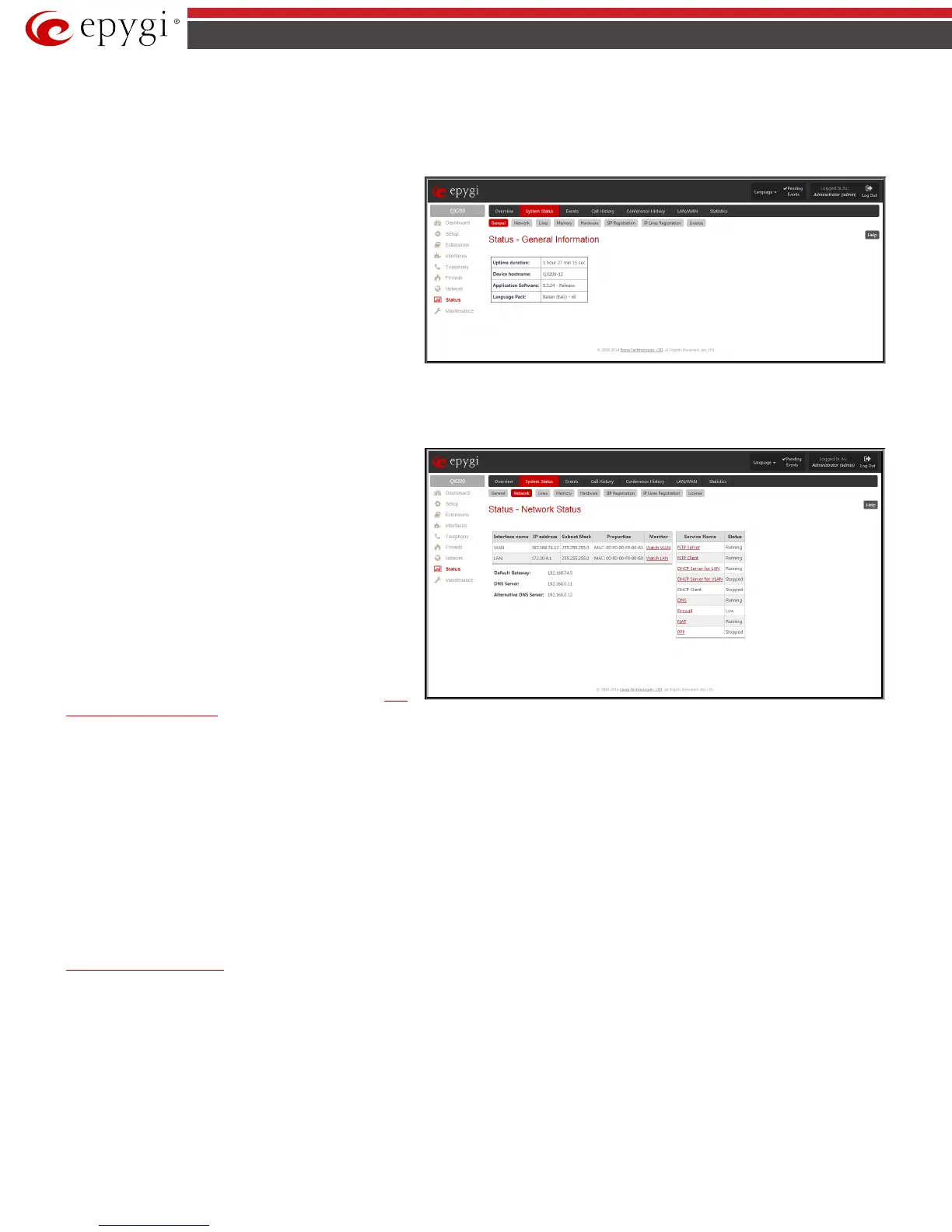

Fig.II- 236: Status - General Information page
Network Status
The
Network Status
page includes the following information
about
Interfaces
:
Interface Name lists the Network interfaces available on the QX
IP PBX (LAN, WAN and a number of PPPs, depending on the
number of active PPP connections).
IP Address lists the IP addresses corresponding to each
network interface.
Subnet Mask lists the subnet masks corresponding to each
network interface.
Properties will list either the MAC address corresponding to
each network interface on the QX IP PBX.
Monitor includes links to survey LAN, VLAN, WAN (For
QX50/QX200) and PPP (for QX50/QX200) traffic
correspondingly. The selection of these links will open the
LAN
and WAN Interface Statistics page with a table of network traffic
statistics on the following selected interfaces:
Fig.II- 237: Status - Network Status page
•
Received Bytes
• Received Packets
• Received Errors
• Received Drop Errors
• Received Overrun Errors
• Received MultiCast Packets
•
Transmitted Bytes
• Transmitted Packets
• Transmitted Errors
• Transmitted Drop Errors
• Transmitted Carrier
Errors
•
Transmitted Collisions
When opening the corresponding interface statistics window, no traffic values are displayed at first. After opening the window, the tables will serve as a
counter and traffic statistics will be updated every minute.
DNS Server, Alternative DNS Server and Default Gateway - these display the QX IP PBX settings corresponding to what has been configured with the
System Configuration Wizard.
Services (NTP Server and Client, DHCP Server and Client, DNS, Firewall, NAT, PPP ) statuses: shows if they have stopped or if they are still running.
Lines Status
The Status - Lines Status page shows the current status of each of the FXS, IP and FXO lines or shared FXO/ISDN/E1T1 lines including details of the
attached extension. Since only one line of information can be displayed at a time, the Line, IP Line and FXO line, ISDN or E1/T1 Trunk functional buttons
are used to navigate through the information regarding other lines.
The Lines Status table displayed for FXS and IP lines includes a group of static and dynamic parameters. Static parameters are always displayed. Dynamic
parameters only appear when an event takes place on the extension.
