Diagnostics
The Diagnostics page gives a possibility of running Network protocol diagnostics to verify QX IP PBX's connectivity and to download all system logs for
possible problems recovery.
Start Network Diagnostics
button is used to initiate
network diagnostics, i.e., to check the WAN link and IP
configuration, to verify gateway, DNS primary and secondary (if
configured) servers' accessibilities.
The Start FXO Diagnostics button
QX50/QX200) runs FXO diagnostic tests to determine the
optimal value for the FXO country specific regional setting
(CSRS) appropriate to your PSTN provider. Once the FXO
diagnostic is complete, the recommended value should be set
manually on the fxocfg hidden page. Setting this value may
resolve echo or poor audio quality issues on FXO lines.
The Download system logs button is used to download all logs
to the local PC as a *.tar archive file. These logs can then be used
by the
Epygi Technical Support Office to determine the problem
that has occurred on your QX IP PBX.

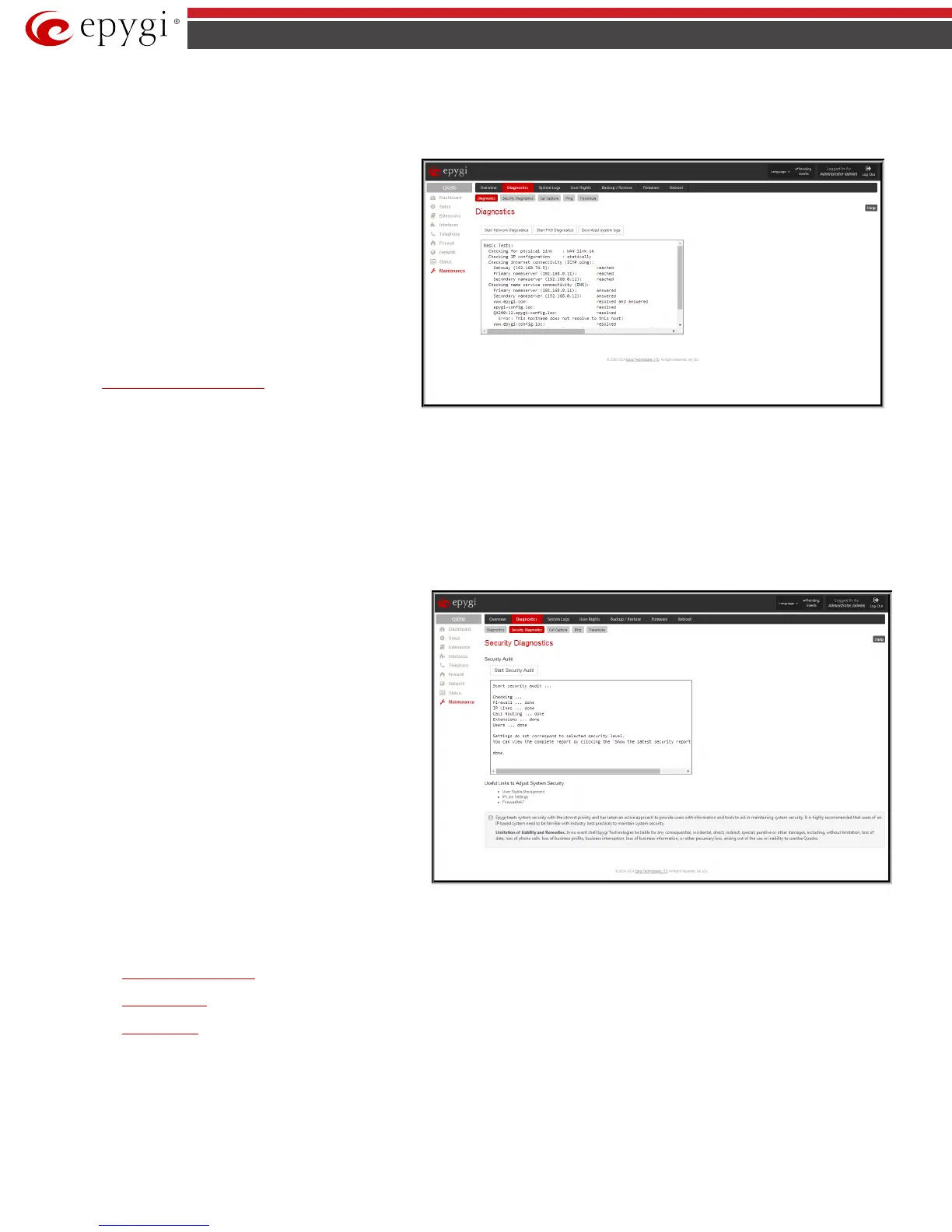

Fig.II- 263: Diagnostics page
The field below will display the diagnostics results and the connectivity conditions. The system should be reconfigured if problems occur during the
diagnostics.
Security Diagnostics
The Security Diagnostics page allows running the security audit and getting the security reports. The Start Security Audit functional button is used for
running the security audit. The QX IP PBX Security Audit is a security reporting system, which generates the warnings regarding the QX IP PBX's
weaknesses relative to the selected Security Level. The warnings may vary depending on the selected global Security Level. The Security Audit will detect
the security related configuration issues in Firewall, IDS, IP Line passwords, Call Routing and extension settings.
The output of Security Audit may look as follows:
Start security audit ...
Checking ...
Firewall ... done
IP Lines ... done
Call Routing ... done
Extensions ... done
Users ... done
Settings do not correspond to selected security level.
You can view the complete report by clicking the 'Show the latest
security report' link below.
done.
Fig.II- 264: Security Diagnostics page
The Show Security Report link allows to display the last security audit report.
This page also contains the following useful links to adjust the system security:
• User Rights Management
• IP Line Settings
• Firewall/NAT
Call Capture
The Call Capture page is used to capture the voice streams on the active calls and the available interfaces on the QX IP PBX (FXS and FXO). This page
consists of two sub-pages:
