176 Upgrade and Maintenance Manual TX140 S1
Hard disk drives / solid state drives
7.3.2.3 Removing a 3.5-inch HDD dummy module

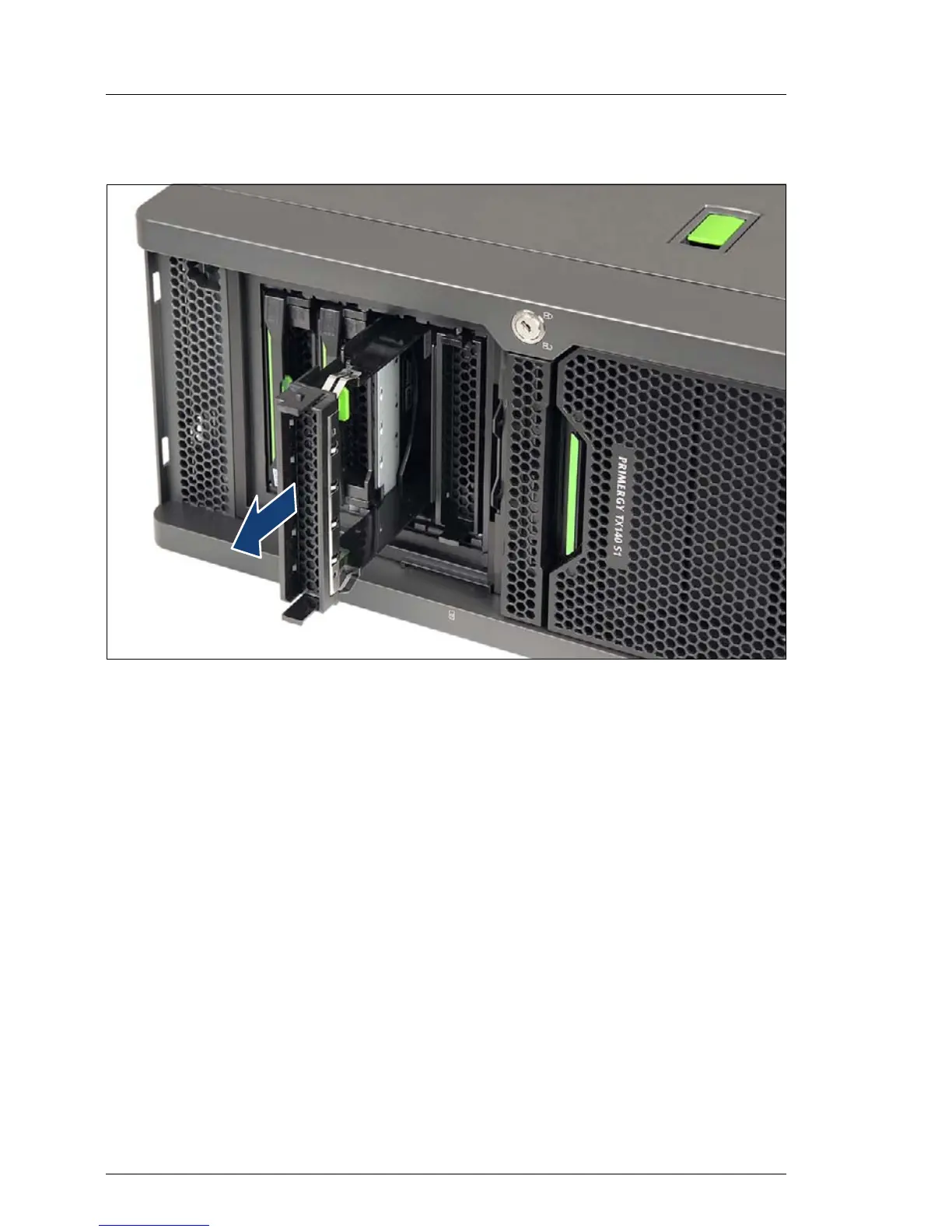

Figure 74: Removing a 3.5-inch dummy module
I Dummy modules have been installed into unused HDD bays. Before
installing an additional HDD, the dummy module needs to be removed
from the desired drive bay.
Ê Press in on the locking tabs on both sides of the dummy module to
disengage the locking mechanism (1).
Ê While keeping the locking tabs pressed, pull the dummy module out of its
bay (2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD bays to comply
with applicable EMC regulations and satisfy cooling requirements.
