Front panel and external connectors

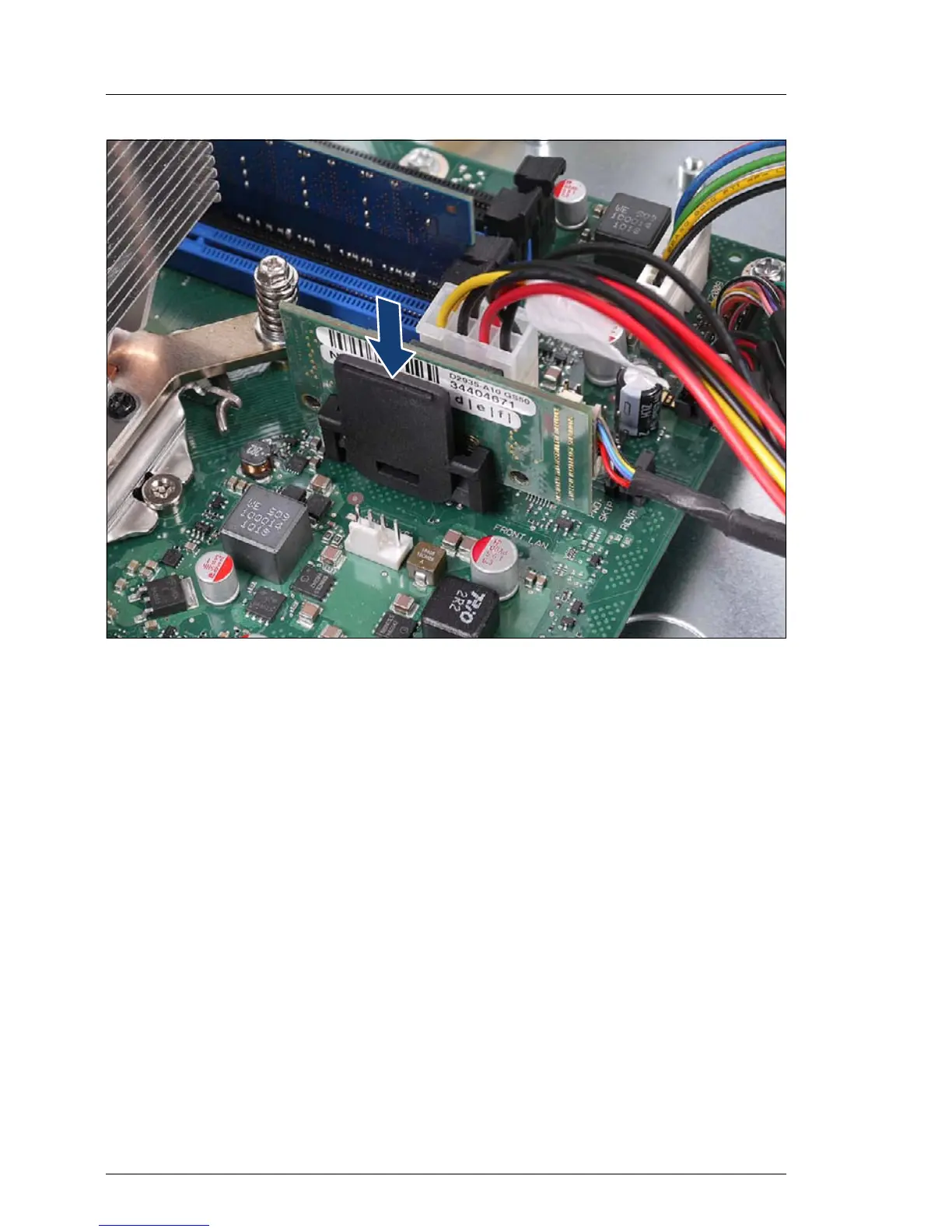

Figure 264: Connecting the front LAN board to the system board
Ê Connect the front LAN board to system board connector FRONT LAN.
I Ensure that the front LAN board holder snaps in place.
13.2.3.8 Concluding steps
Perform the following procedures to complete the task:
Ê Reinstall the fan module as described in section "Installing the fan module"
on page 209.
Ê Close the front cover and reinstall the ID card as described in section
"Mounting the rack front cover" on page 77 (rack server) or "Mounting the
front cover" on page 82 (tower server).
Ê Close the side / top cover as described in section "Mounting the top cover"
on page 80 (rack server) or "Mounting the side cover" on page 85 (tower
server).
