TX140 S1 Upgrade and Maintenance Manual 577
Appendix
17.3.1.2 Onboard settings

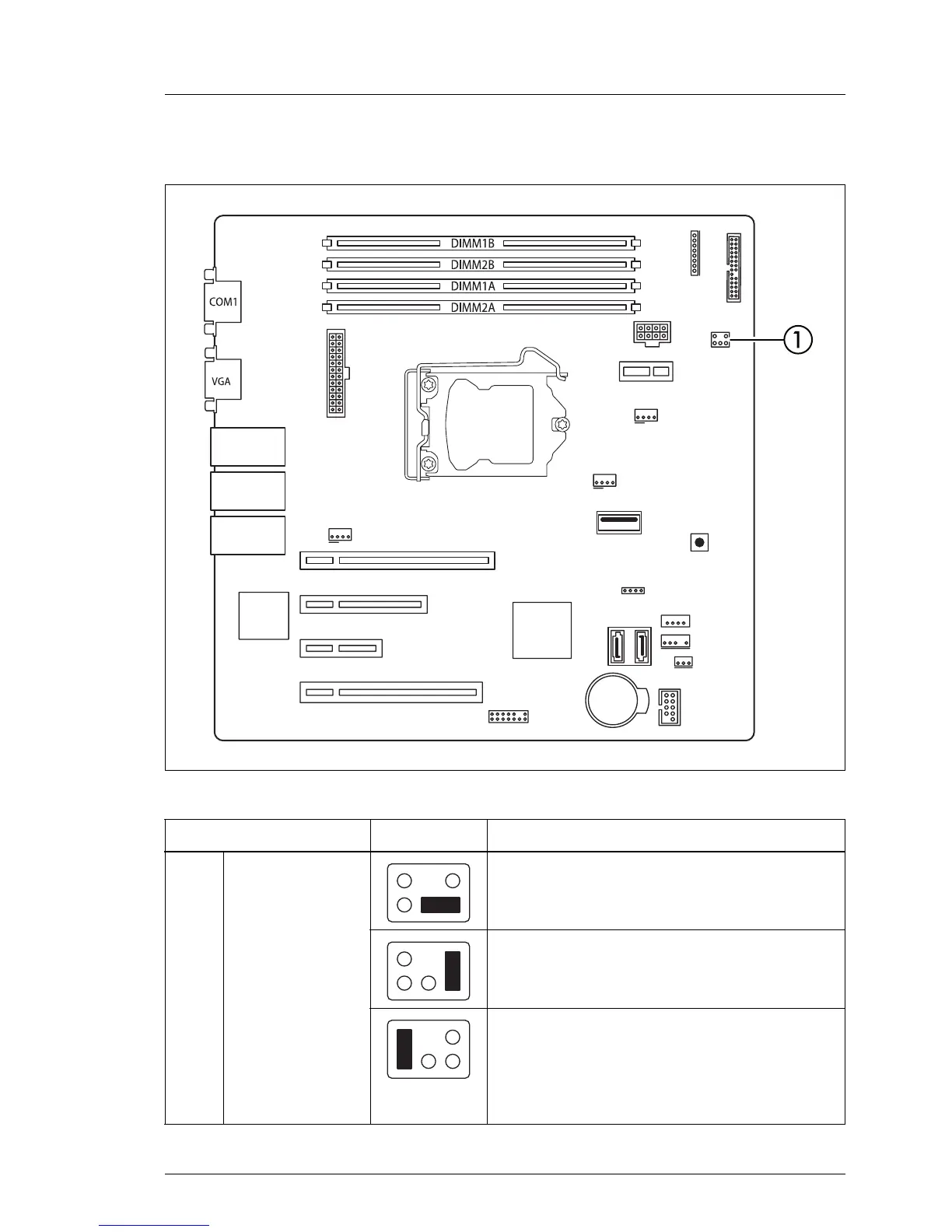

Figure 403: Onboard settings on system board D3049
Setting Status Description
1
Jumper
settings
Default: Password delete and Recovery
BIOS options disabled
RCVR: Recovery BIOS enabled
PWD SKIP: Password delete enabled
This jumper setting will permanently
delete the current BIOS password and
apply default BIOS settings.
Slot 3 PCIe x4
Slot 1 PCI 32 Bit / 33 MHz
Indicate CSS
SATA6
SATA5
SATA POWER
POWER1
HDD ACTIVITY
Slot 2 PCIe x1
Jumper
SATA MLC1
USB1 DAT
Mgmt. LAN
USB 9/10
Shared LAN
USB 7/8
Standard LAN
USB 5/6
Slot 4 PCIe x16
USB1AUX
FRONT LAN
UFM
INTRUSION
FAN2 SYS
TPM
PC2009
FAN1 SYS
FRONTPANEL
FAN1 CPU
