TX140 S1 Upgrade and Maintenance Manual 87
Basic hardware procedures

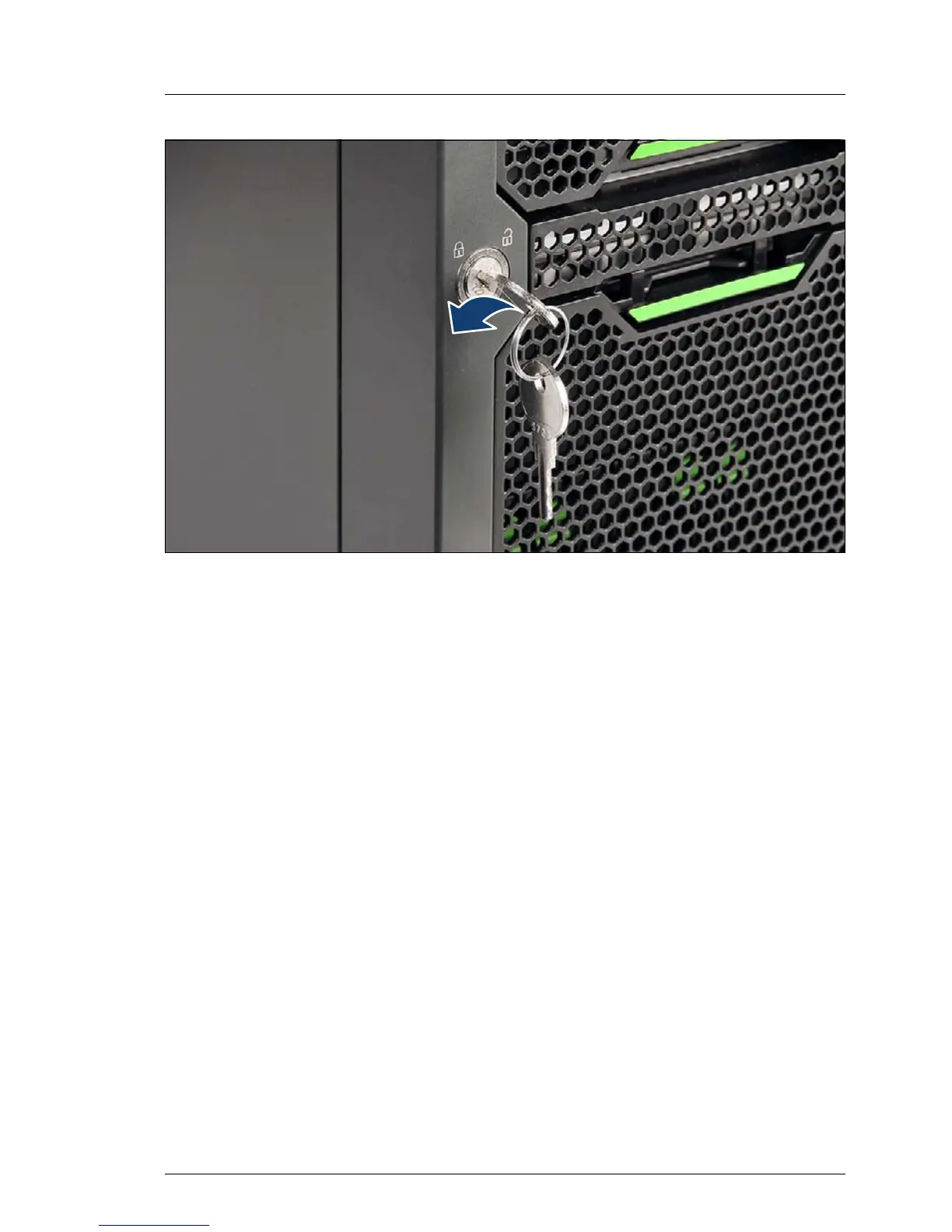

Figure 34: Locking the server
Ê If required by security regulations, insert the key into the lock on the front
panel and lock the server.
4.7 Mounting the server in the rack
4.7.1 Seating the server on the rack rails
V CAUTION!
At least two people are needed to position the server on the rack rails.
(For the Japanese market, please refer to " 安全上のご注意 ".)
Additionally, a lifter is required in the following cases:
– The server weighs more than 50 kg.
– The server weighs more than 21 kg and is to be installed above the
height of 25 U.
When using a lifter, this removal procedure needs to carried out by
maintenance personnel.
I Refer to the rack cabinet manuals for more detailed information on other
support systems.
To Next Page
