TX140 S1 Upgrade and Maintenance Manual 221
System fan and air duct

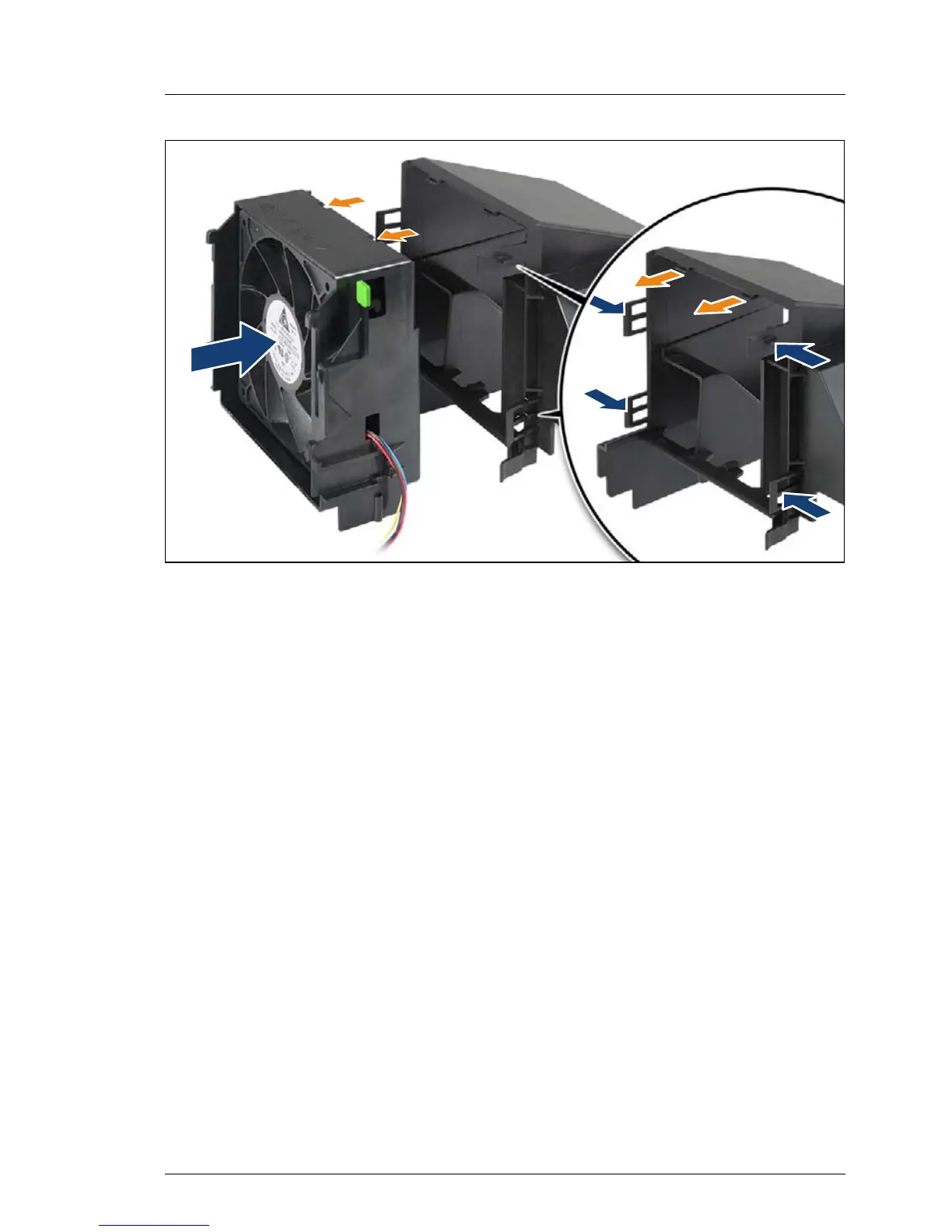

Figure 107: Mounting the fan holder on the air duct
Ê Fit the two guides on the air duct into the notches on the fan holder (see
orange arrows).
Ê Carefully press the fan holder onto the air duct until the locking latch and the
three retaining brackets (see blue arrows) properly snap into place.
8.2.5 Concluding steps
Perform the following procedures to complete the task:
Ê Reinstall the fan module as described in section "Installing the fan module"
on page 209.
Ê Close the side / top cover as described in section "Mounting the top cover"
on page 80 (rack server) or "Mounting the side cover" on page 85 (tower
server).
Ê When working on a rack-mounted server, secure it in the rack as described
in section "Sliding the server into the rack" on page 89.
If the server has been completely removed from the rack for maintenance
purposes, reinstall and secure it in the rack as described in section
"Mounting the server in the rack" on page 87.
