TX140 S1 Upgrade and Maintenance Manual 407
Front panel and external connectors

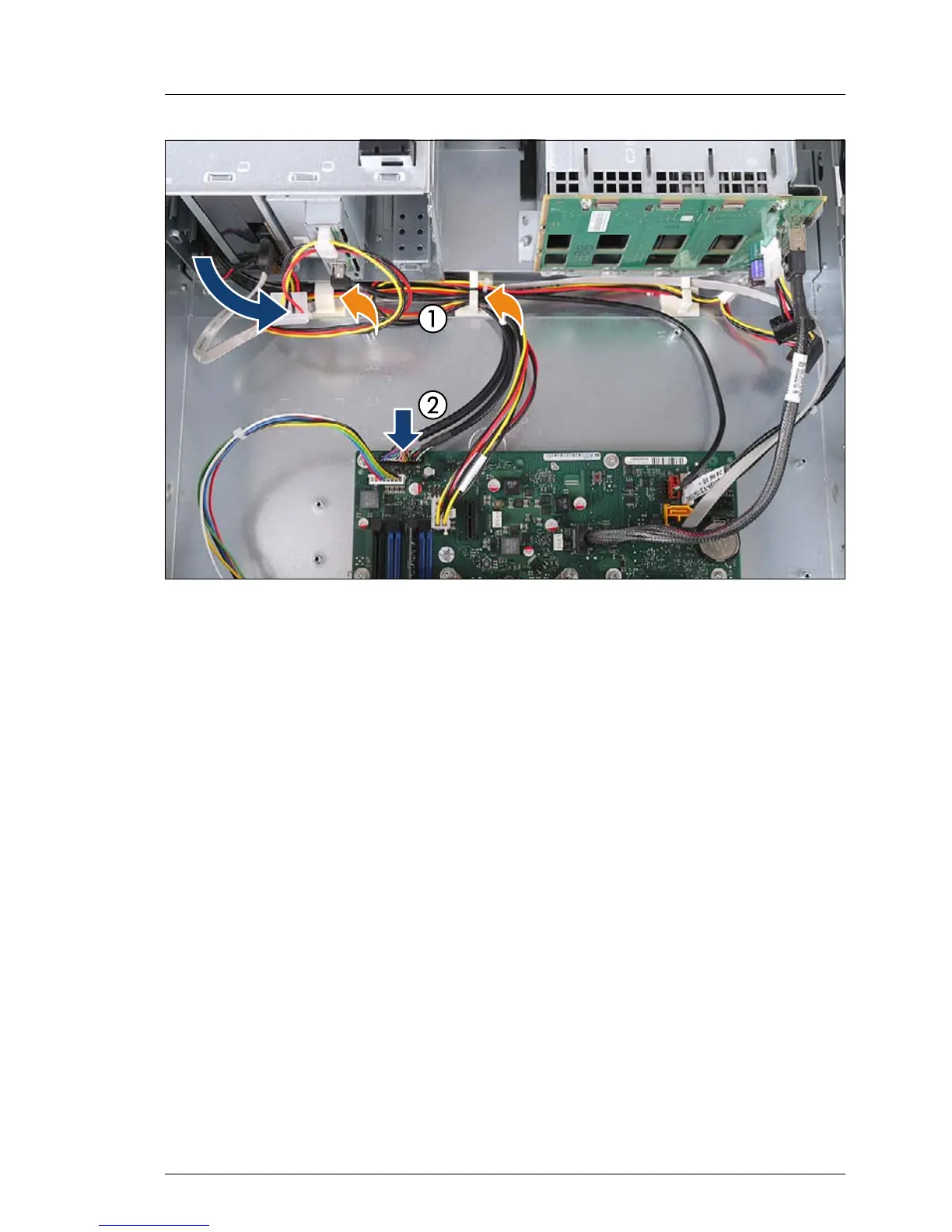

Figure 260: Connecting front panel cables
Ê Run the front panel cable through the cable clamps (see orange arrows) as
shown (1).
Ê Connect the front panel cable
T26139-Y4015-V1 to system board connector
FRONTPANEL (2).
13.2.2.6 Concluding steps
Perform the following procedures to complete the task:
Ê Reinstall the fan module as described in section "Installing the fan module"
on page 209.
Ê Close the front cover and reinstall the ID card as described in section
"Mounting the rack front cover" on page 77 (rack server) or "Mounting the
front cover" on page 82 (tower server).
Ê Close the side / top cover as described in section "Mounting the top cover"
on page 80 (rack server) or "Mounting the side cover" on page 85 (tower
server).
Ê When working on a rack-mounted server, secure it in the rack as described
in section "Sliding the server into the rack" on page 89.
