76
Upgrade and Maintenanc
e Manual
TX140
S1
Basic hardware procedures
4.5.2.3
Removing t
he HDD bay cover

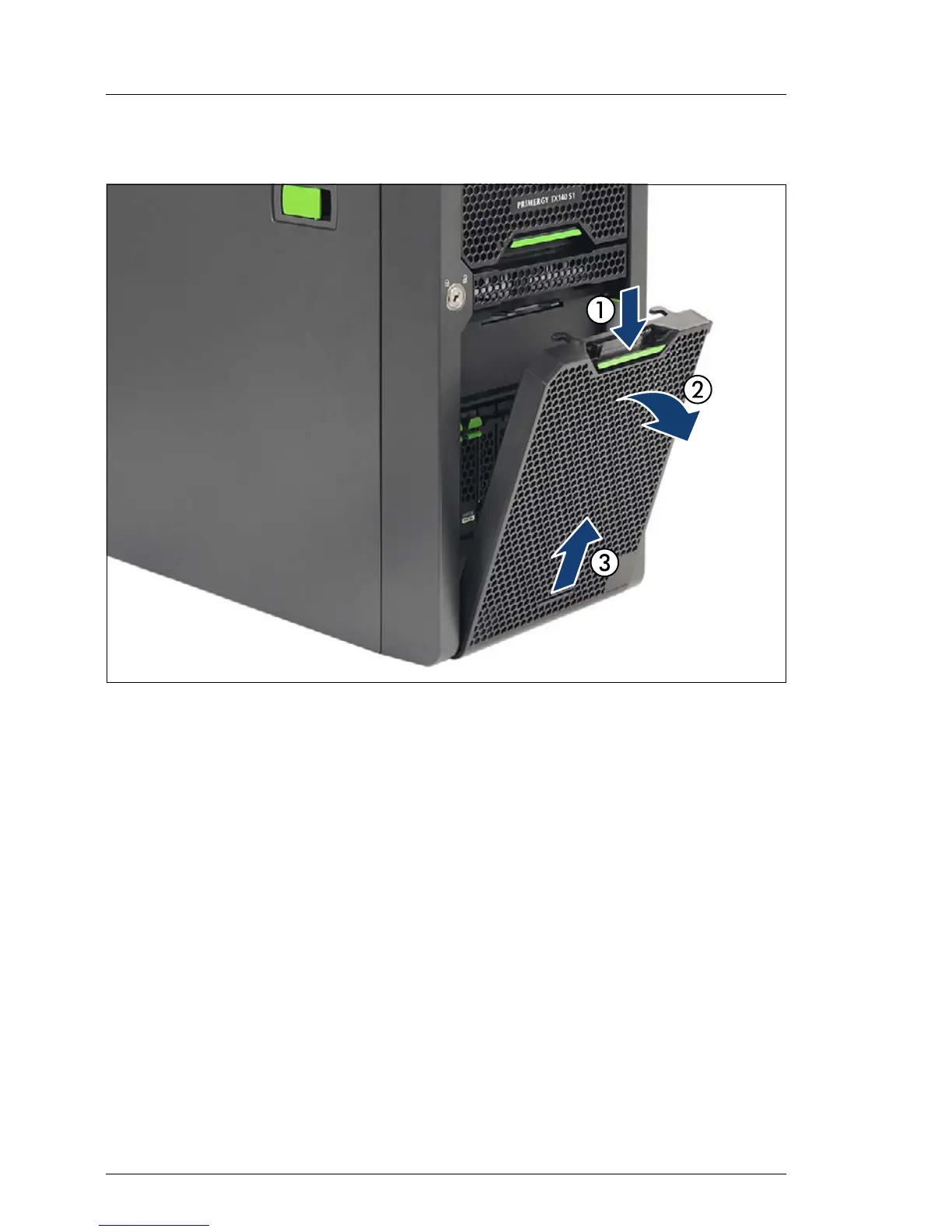

Figure 22:
Removing the HDD bay cover
Ê
Press down on the locking latch (1) and fold out the HDD bay cover (2).
Ê
Remove the HDD bay cover fr
om the front cover (3).
75
77
