TX140 S1 Upgrade and Maintenance Manual 59
Basic hardware procedures
4.1.3.2 Local diagnostic indicators on the system board

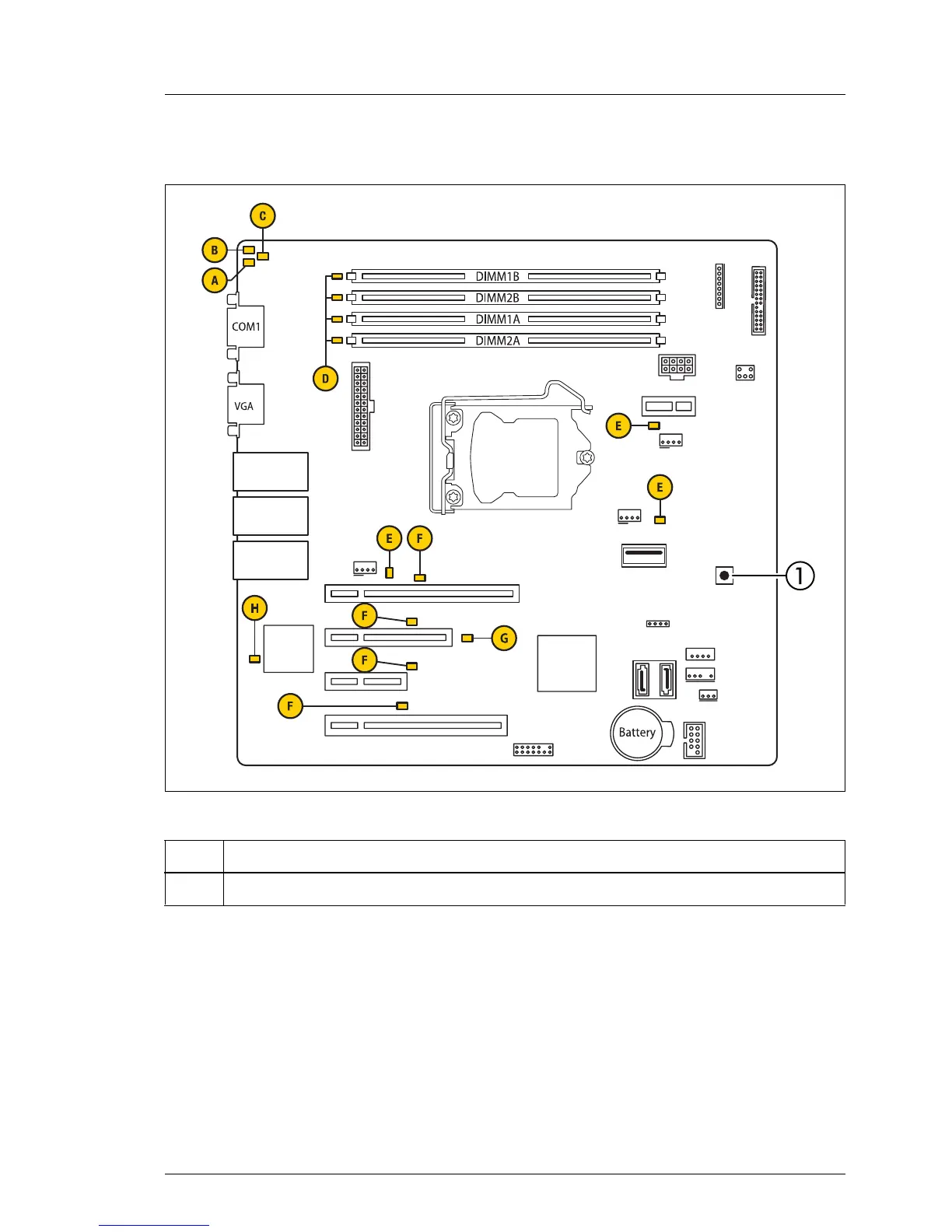

Figure 7: Onboard indicators and Indicate CSS button
Using the Indicate CSS button
Ê Shut down and power off the server.
Ê Disconnect the AC power cord from the system.
I It is mandatory to disconnect power cords in order to use the Indicate
CSS functionality.
Ê Press the Indicate CSS button (1) to highlight defective components.
No. Description
1 Indicate CSS button
Slot 3 PCIe x4
Slot 1 PCI 32 Bit / 33 MHz
Indicate CSS
SATA6
SATA5
SATA POWER
POWER1
HDD ACTIVITY
Slot 2 PCIe x1
Jumper
SATA MLC1
USB1 DAT
Mgmt. LAN
USB 9/10
Shared LAN
USB 7/8
Standard LAN
USB 5/6
Slot 4 PCIe x16
USB1AUX
FRONT LAN
UFM
INTRUSION
FAN2 SYS
TPM
PC2009
FAN1 SYS
FRONTPANEL
FAN1 SYS
