428
Upgrade and Mai
ntenance Manual
TX140
S1
System board and compo
nent
s
14.2.2.3
Removing t
he UFM board

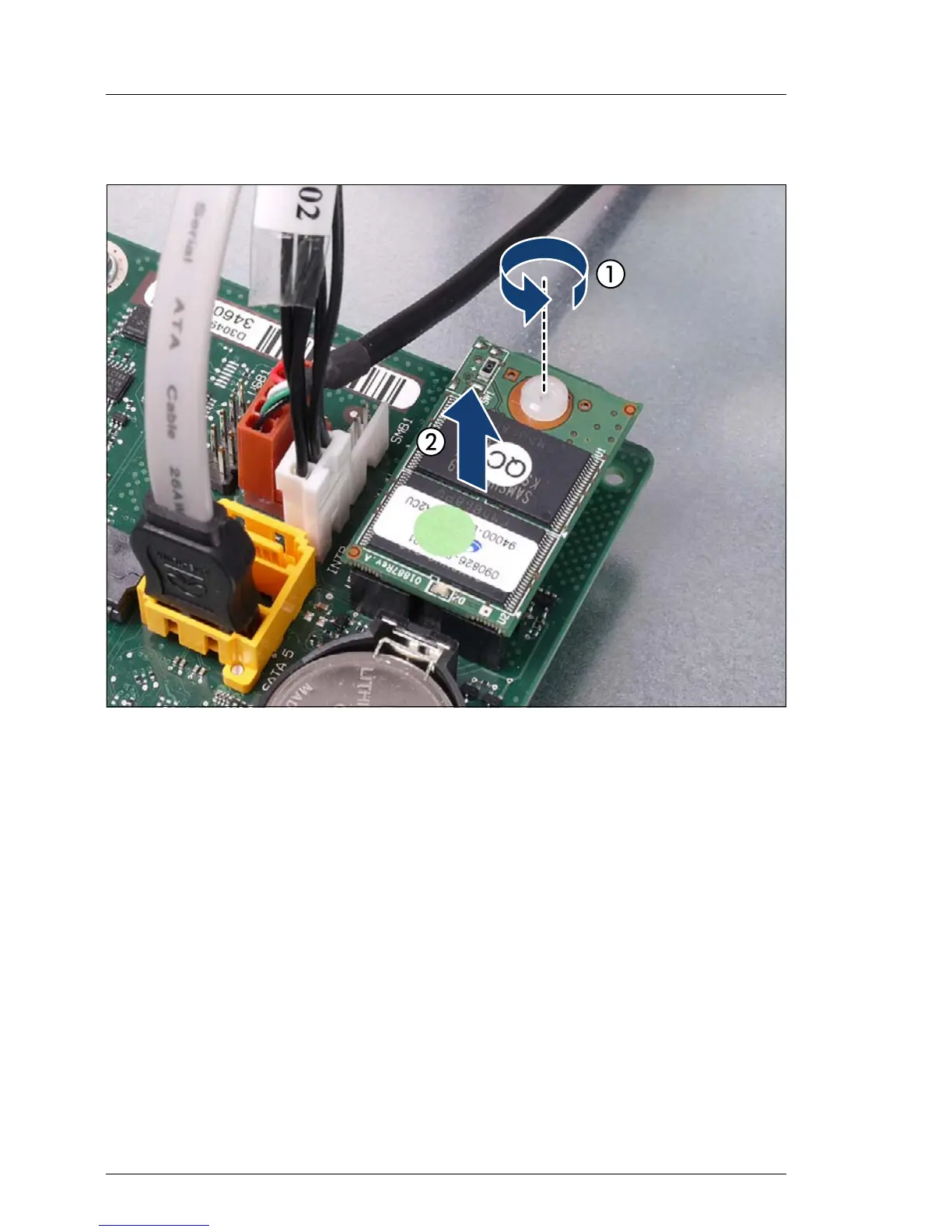

Figure 272: Removing the UFM board (A)
Ê
Remove the nylon screw on the defective UFM board (1).
Ê
Disconnect and remove the defective UFM boar
d (2).
427
429
