Fujitsu PRIMERGY TX140 S1 Upgrade And Maintenance Manual

180 Upgrade and Maintenance Manual TX140 S1
Hard disk drives / solid state drives
http://manuals.ts.fujitsu.com (EMEA market) or
http://jp.fujitsu.com/platform/server/primergy/manual/ (Japanese
market).
Ê If applicable, open the rack door as described in section "Opening the rack
door" on page 61.
Ê When working on a tower server, open the HDD bay cover as described in
section "Removing the HDD bay cover" on page 76.
7.3.3.3 Removing a 3.5-inch HDD module

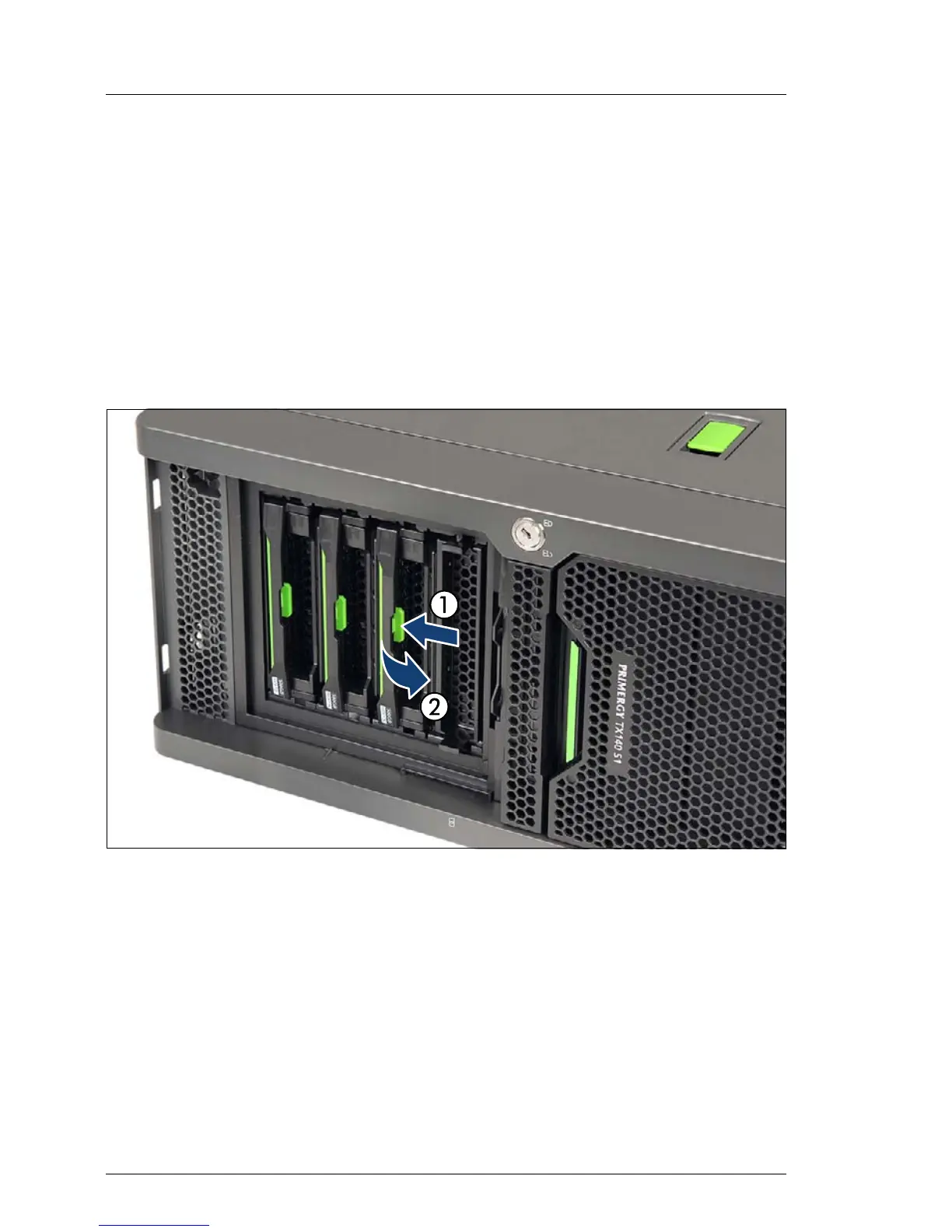

Figure 78: Disconnecting a 3.5-inch HDD module
Ê While pressing down on the locking button (1) fold up the lever (2).
I Thereby, the HDD module is pushed out of its drive bay by about 1 cm
and disconnected from the SAS / SATA backplane.
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
