TX140 S1 Upgrade and Maintenance Manual 65
Basic hardware procedures
4.4.2 Extending the server out of the rack

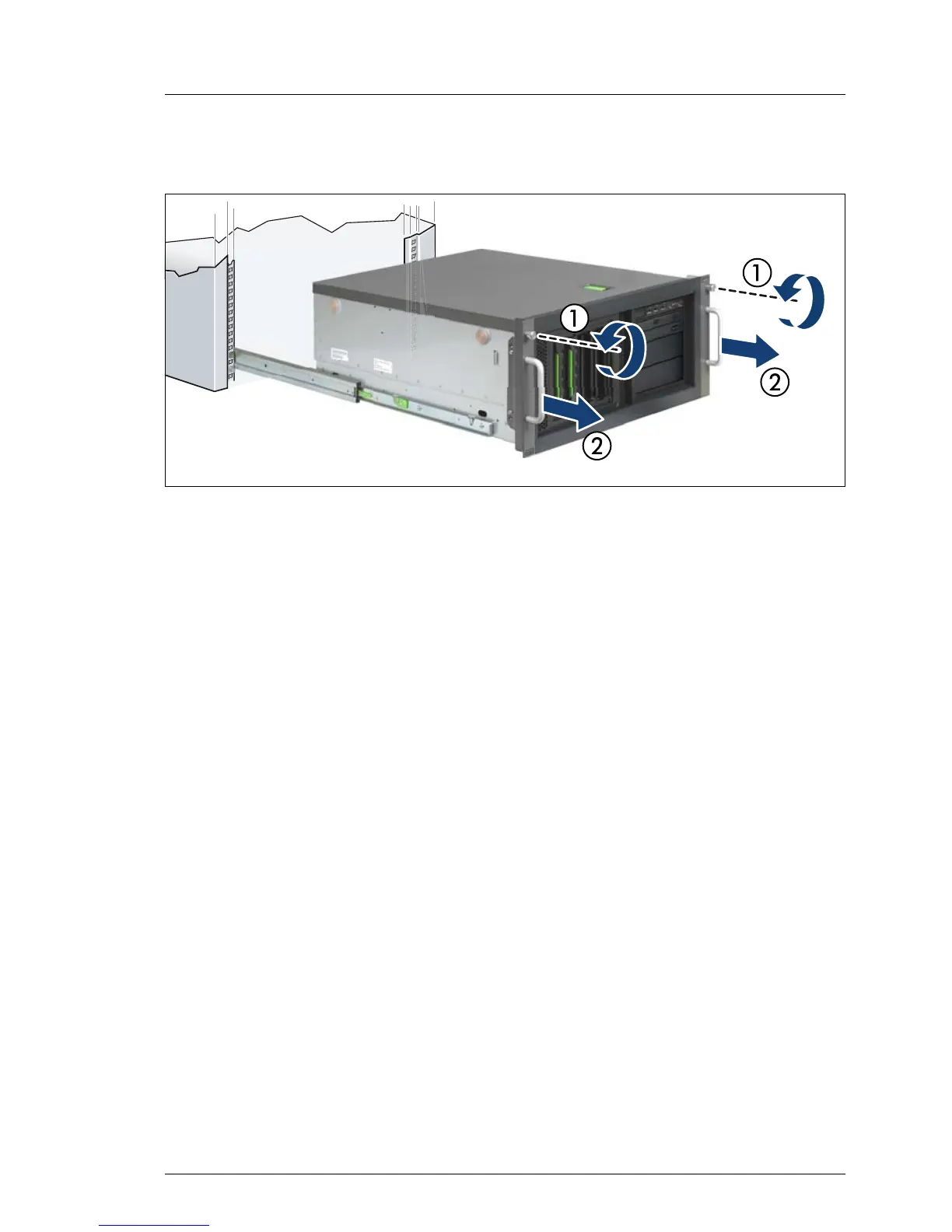

Figure 10: Extending the server out of the rack
Ê Shut down the server and remove external cables as described in section
"Preliminary steps" on page 64.
Ê If you are not using a cable mounting arm (CMA kit), ensure that the rear
cables are long enough not to be strained or damaged when extending the
server out of the rack.
Ê Loosen the two captive knurled thumb screws on the rack mounting
frame (1) and pull the server out of the rack until it locks in place (2).
V CAUTION!
Do not use the extended server as a surface on which to put things or as
a work surface, and strictly avoid leaning on or against it.
