TX140 S1 Upgrade and Maintenance Manual 89
Basic hardware procedures
4.7.2 Sliding the server into the rack

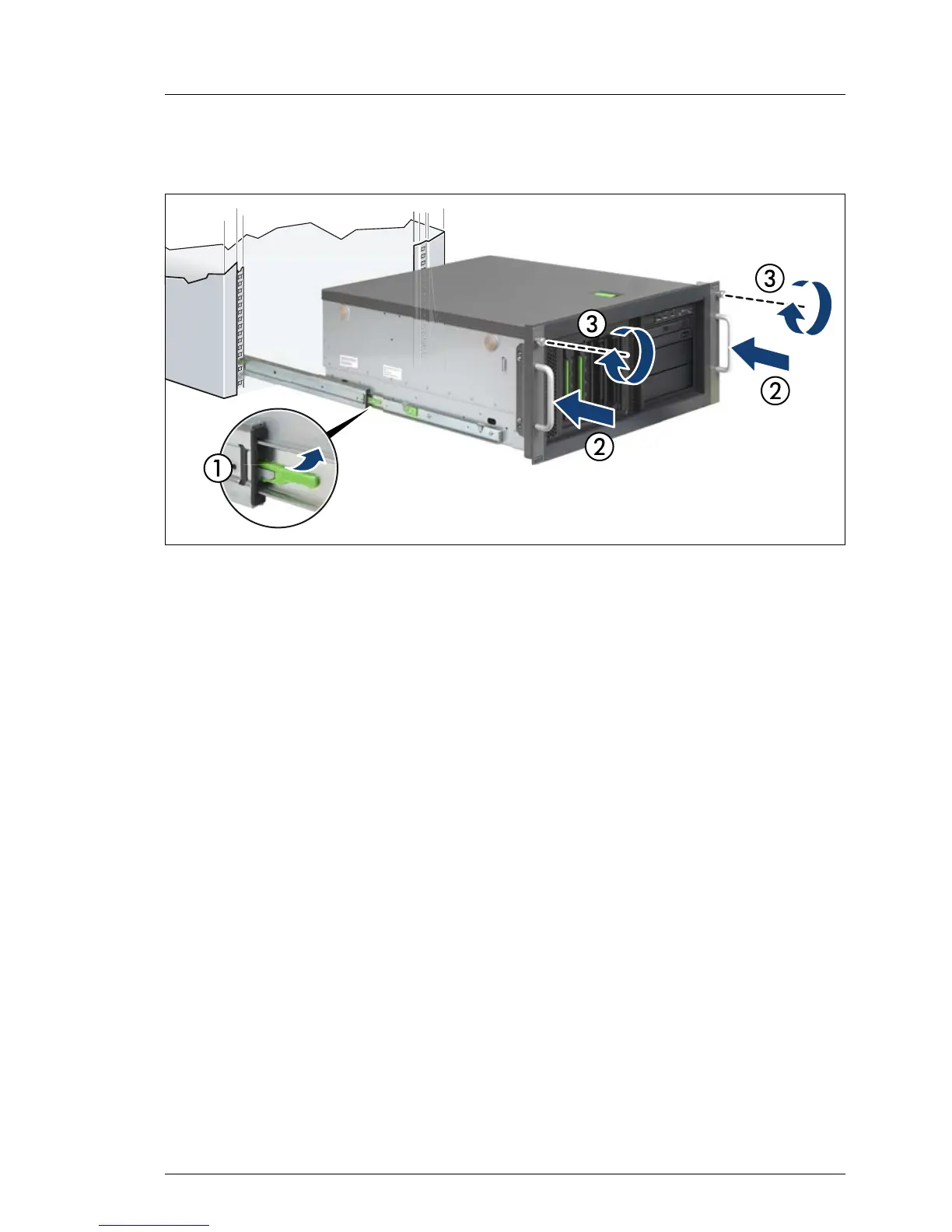

Figure 36: Sliding the server into the rack
V CAUTION!
Ensure that the safety lock has been properly inserted into the snap fit
lock. For further information, refer to the "Rack Mounting Kit - RMK-F2
Drop-In" Mounting Instructions.
Ê Pull up on the locking latch on both telescopic rails (1).
Ê Slide the server inside the rack as far as it will go (2).
Ê Secure the server in the rack with the two captive knurled thumb screws on
the rack mounting frame (3).
Ê Reconnect all cables except the power cord to the server rear.
I If you are not using a cable mounting arm (CMA kit), ensure that the
rear cables are long enough not to be strained or damaged when
extending the server out of the rack.
Use cable ties to prevent loose cables from blocking the air flow.
For information on connecting and securing the power cord, refer to section
"Connecting the server to the mains" on page 90.
