TX140 S1 Upgrade and Maintenance Manual 525
Cabling
16.4.3 Removing the ODD SATA cable

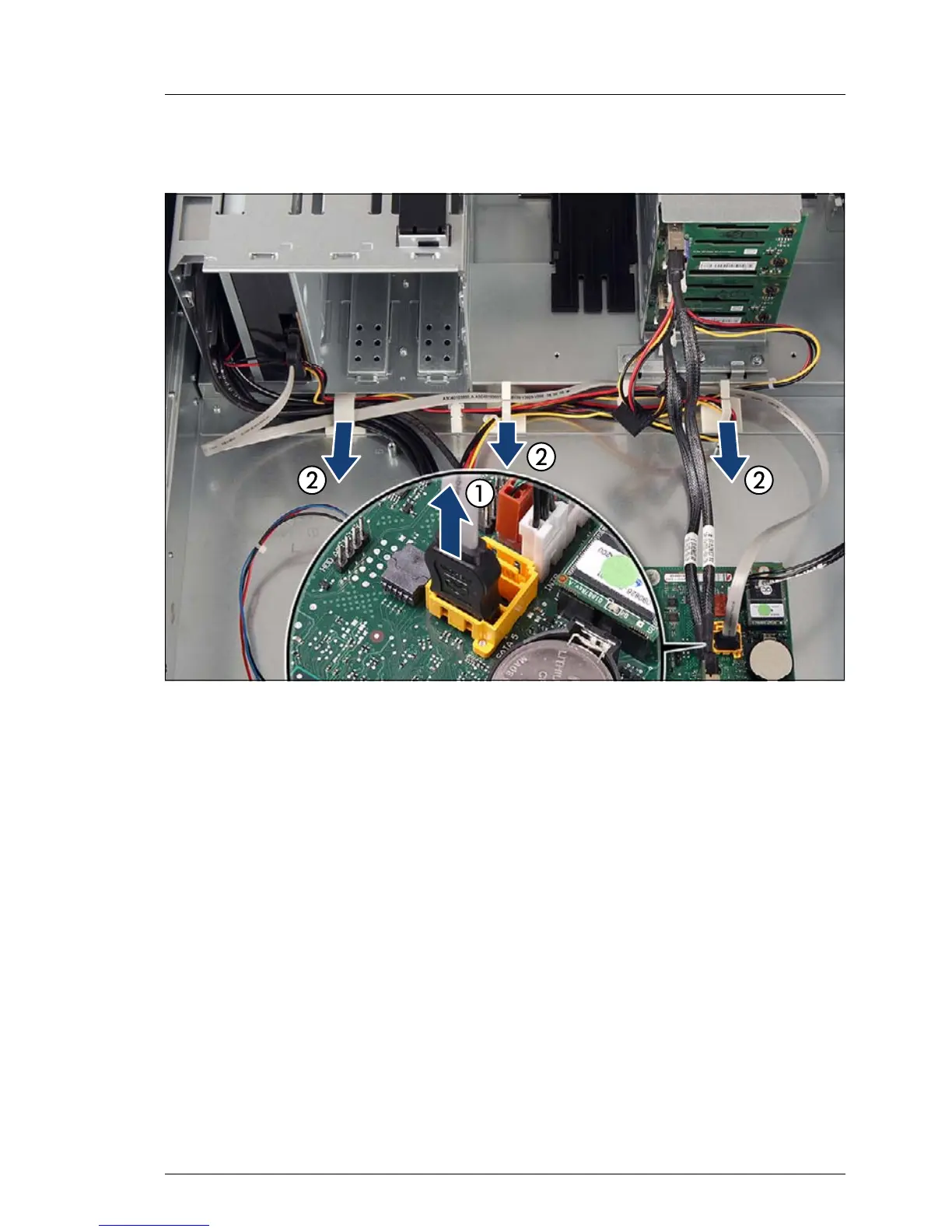

Figure 356: Disconnecting the ODD SATA cable (A)
Ê Disconnect the ODD SATA cable from system board connector SATA 5 (1).
Ê Remove the ODD SATA cable from the cable clamps (see arrows) as shown
(2).
