228
Upgrade and Mai
ntenance Manual
TX140
S1
Exp
ansion cards and backup un
it
s
9.2.1.3
Removing PCI slot
bracket

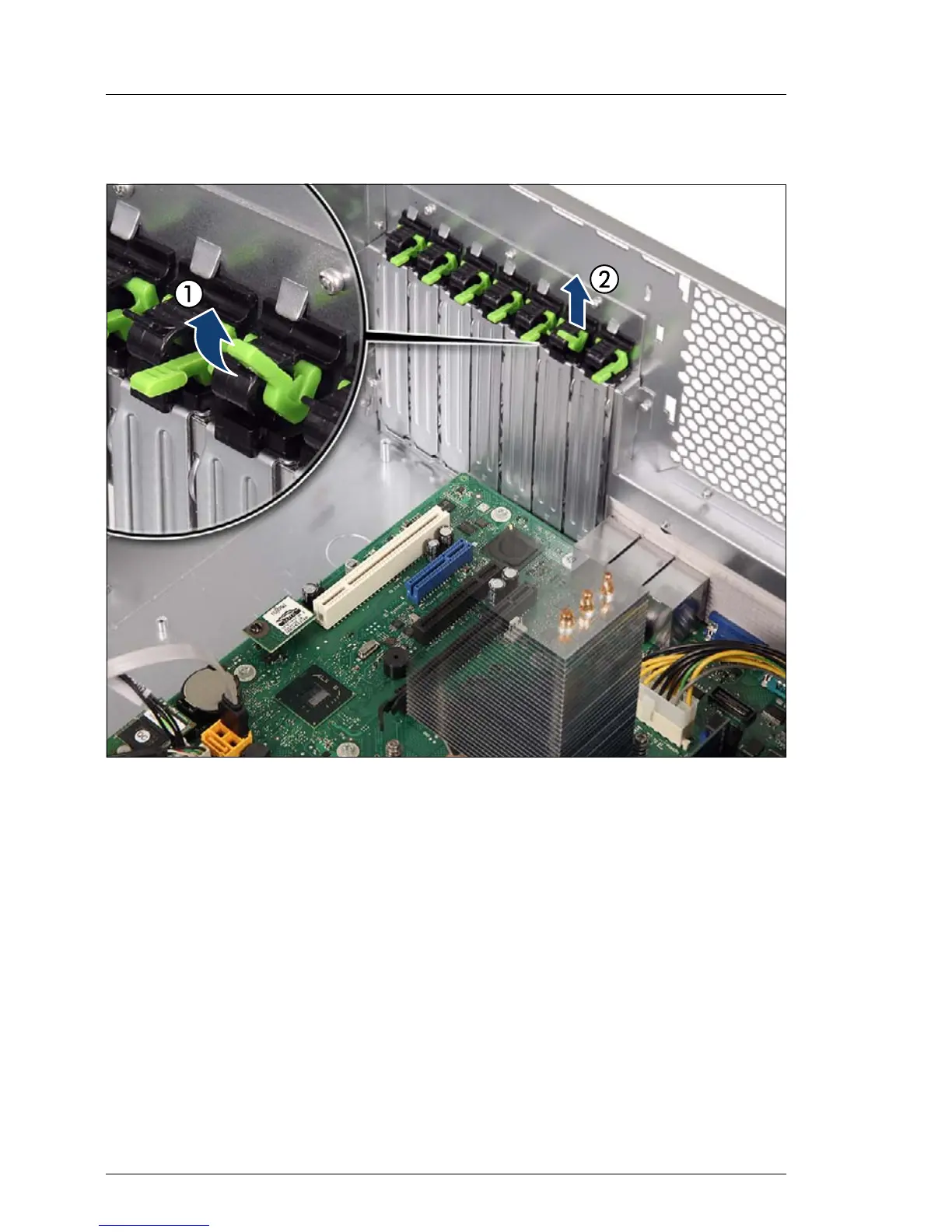

Figure 109: Removing the PCI slot bracket (A)
Ê
Fold up the locking handle on the s
lot bracket clamp (1).
Ê
Remove the slot bracke
t clamp (2).
227
229
