Fujitsu PRIMERGY TX140 S1 Upgrade And Maintenance Manual

420 Upgrade and Maintenance Manual TX140 S1
System board and components
14.1.4 Installing the CMOS battery

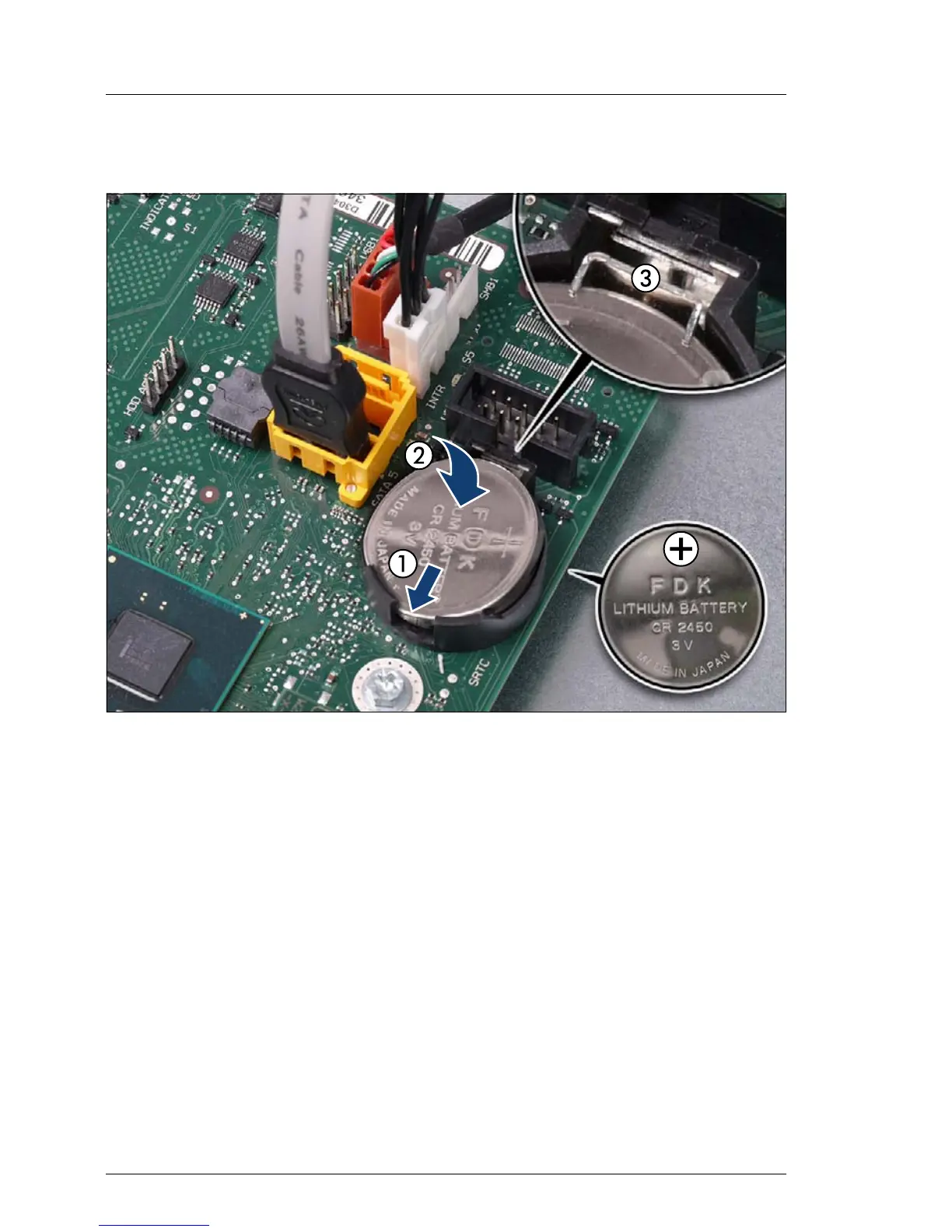

Figure 267: Installing the CMOS battery
Ê At a slight angle, fit the new CMOS battery into its socket as shown (1).
V CAUTION!
Ensure to insert the CMOS battery with the positive pole (label side)
facing up as shown (see close-up).
Ê Fold down the CMOS battery (2) until it locks in place.
Ê Ensure that the locking spring (3) is properly engaged.
