480 Upgrade and Maintenance Manual TX140 S1
Converting a tower server to a rack server
15.5.2 Re-installing the front panel and accessible drives

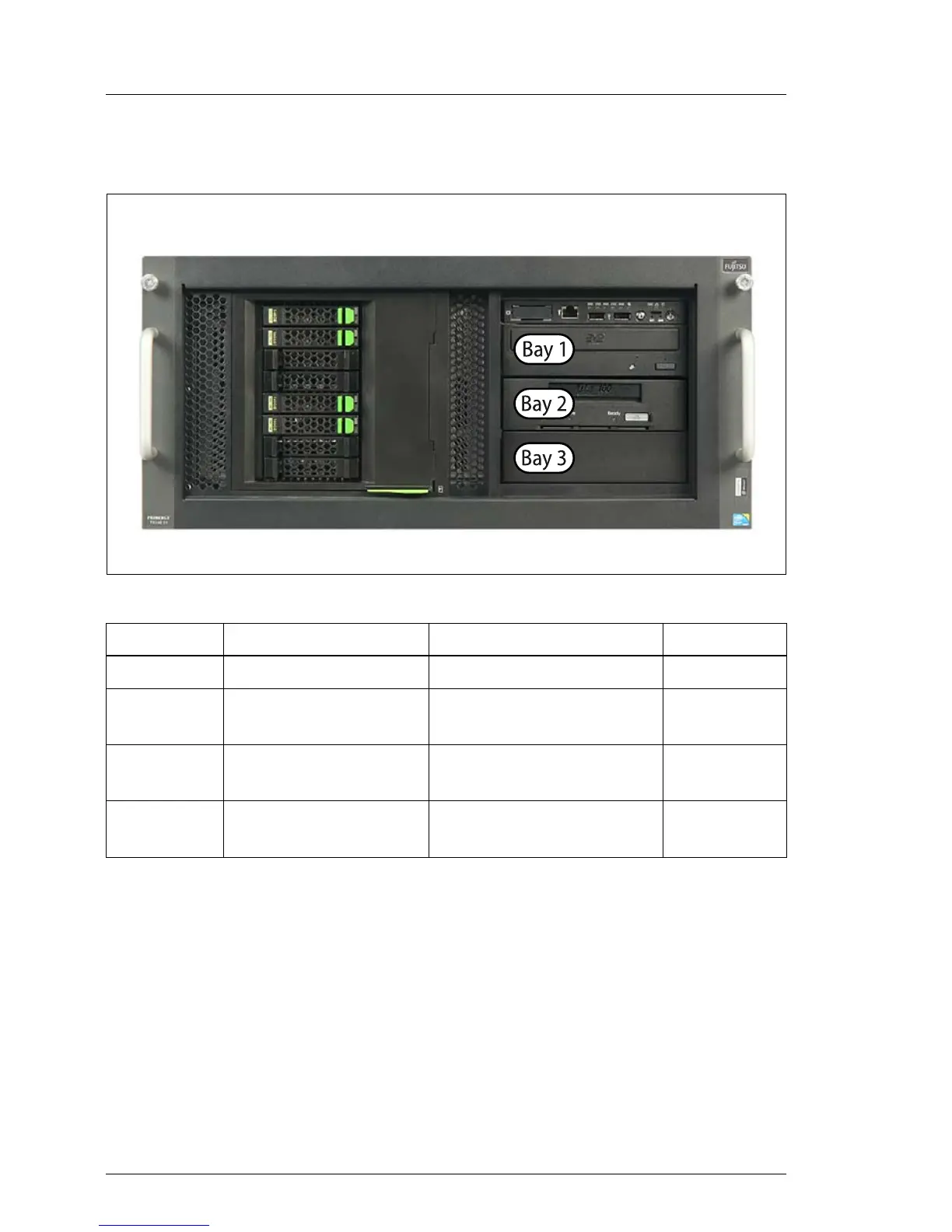

Figure 310: Accessible drives mounting order (rack server)
Ê Rotate the front panel module by 90 degrees and reinstall it into the upper
bay as described in section "Installing the front panel module" on page 378.
Ê Reinstall all accessible drive into their original bays (rotated by 90 degrees)
according to the mounting sequence in table 10 on page 480. Proceed as
described in sections "Installing an optical disk drive (ODD)" on page 332
and "Installing a backup drive" on page 344.
Ê Reinstall all accessible drive dummy modules as described in section
"Installing accessible drive dummy modules" on page 358.
Sequence Accessible drive Bay Max. no.
1 Optical disk drive Bay 1 1
2 Backup drive LTOx
Bay 2
Bay 3 if bay 2 is occupied
1
3 Backup drive DAT
Bay 2
Bay 3 if bay 2 is occupied
1
4 Backup drive RDX
Bay 2
Bay 3 if bay 2 is occupied
1
Table 10: Accessible drive mounting sequence
