352 Upgrade and Maintenance Manual TX140 S1
Accessible drives
Ê When working on a rack-mounted server, extend it out of the rack as
described in section "Extending the server out of the rack" on page 65.
If further required, remove the server from the rack as described in section
"Removing the server from the rack" on page 66.
Ê Bring the server to its horizontal position.
Ê Open the side / top cover as described in section "Removing the top cover"
on page 67 (rack server) or "Removing the side cover" on page 71 (tower
server).
Ê Pull out the ID card and open the front cover as described in section
"Removing the rack front cover" on page 69 (rack server) or "Removing the
front cover" on page 74 (tower server).
12.3.3 Removing an optical disk drive (ODD)

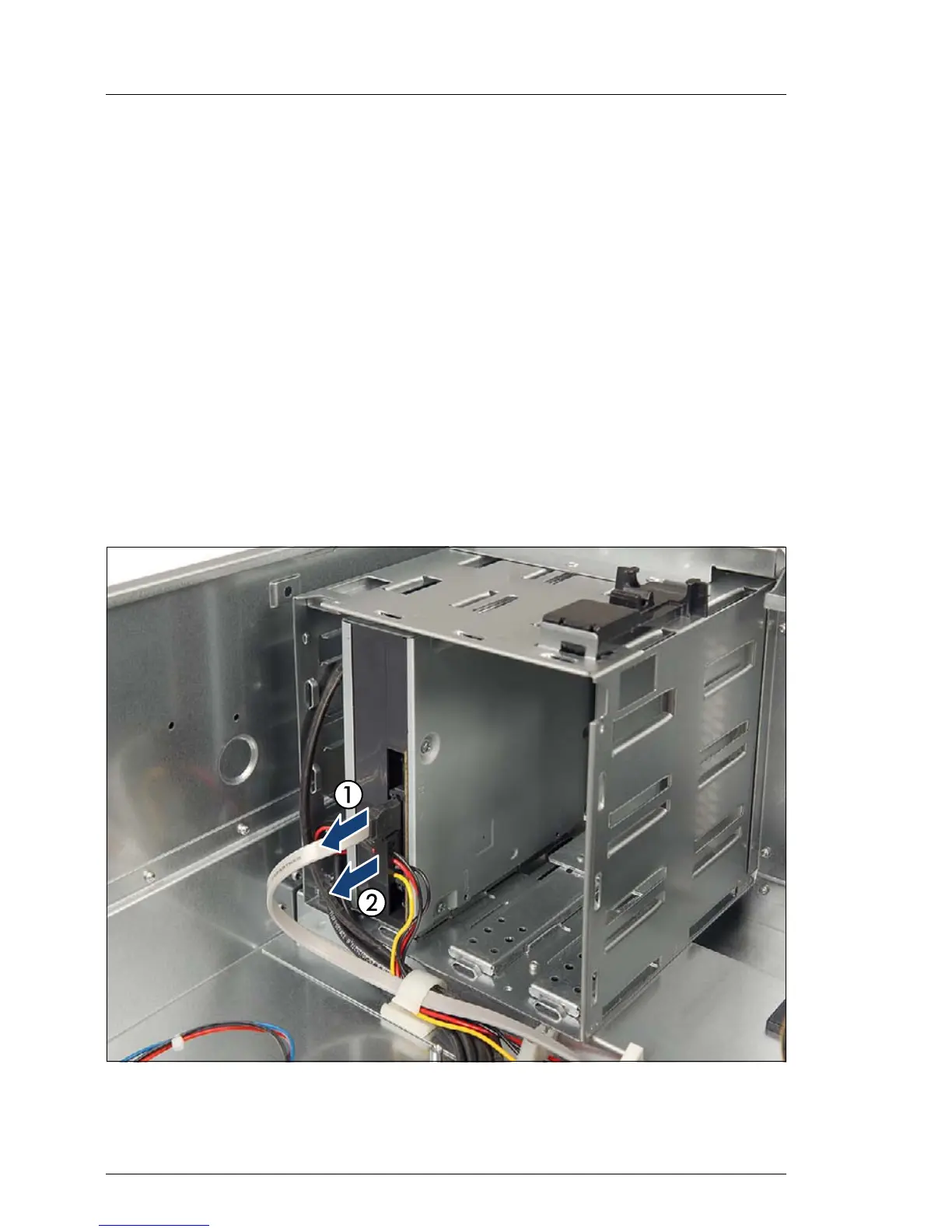

Figure 205: Disconnecting cables from the optical disk drive
