Upgrade and Mai
ntenance Manual
TX140
S1
Cabling
16.2.3
Removing the front p
anel cable

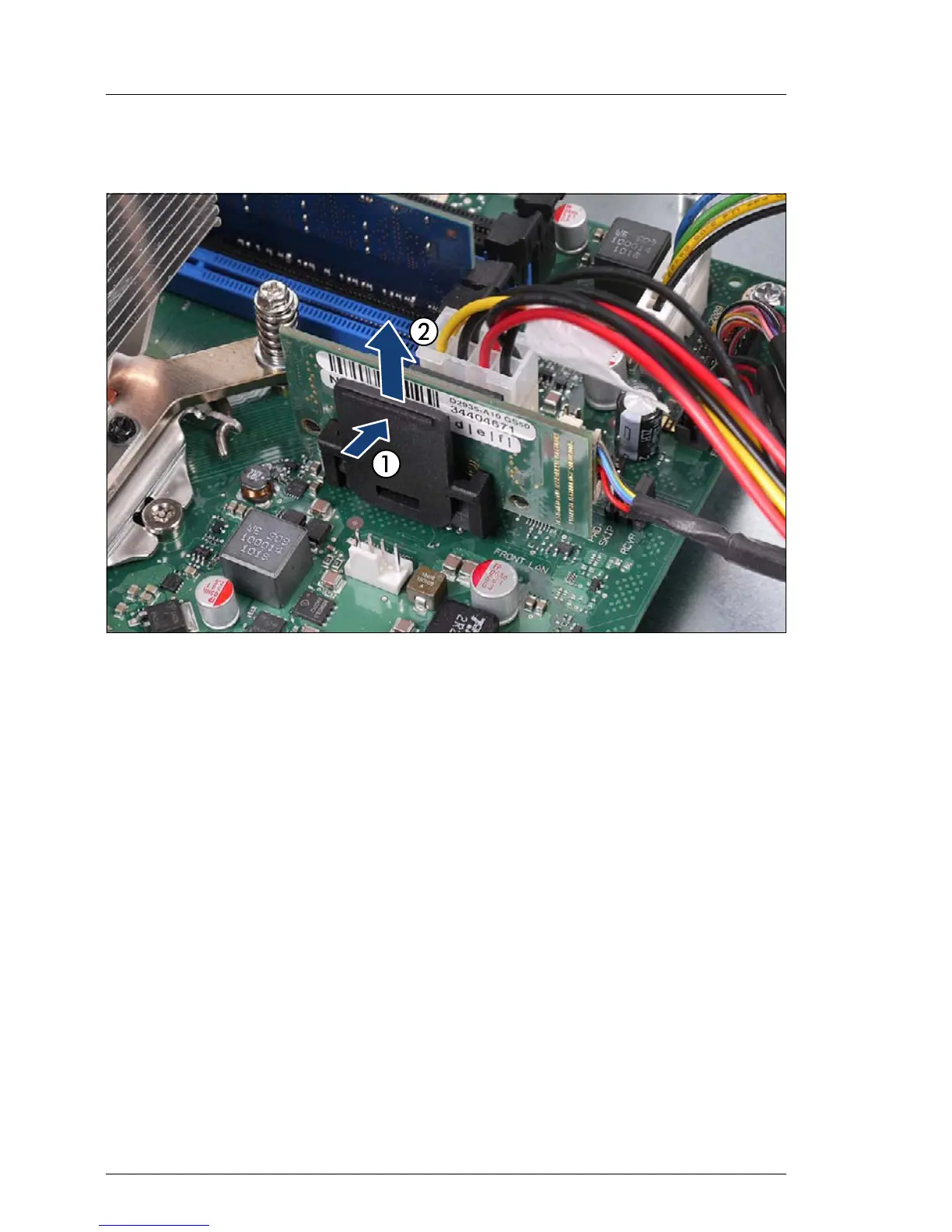

Figure 332: Disc
onnecting the front LA
N board
Ê
If applicable, disconnect the front LAN board from the system board:
Press in on the locki
ng latch on the front LAN board holder (1) and pull the
front LAN board out of its socket (2).
