TX140 S1 Upgrade and Maintenance Manual 57
Basic hardware procedures
4.1.3 Locating the defective component
After determining the error class by the CSS or Global Error indicators (see
section 4.1.2 on page 55) local diagnostic indicators on the front panel and
system board allow you to identify the defective component.
I For further information, refer to the "ServerView Suite Local Service
Concept (LSC)" manual available from the ServerView Suite DVD 2
supplied with your PRIMERGY server or online at
http://manuals.ts.fujitsu.com (EMEA market) or
http://jp.fujitsu.com/platform/server/primergy/manual/ (Japanese market).
4.1.3.1 Local diagnostic indicators on the front

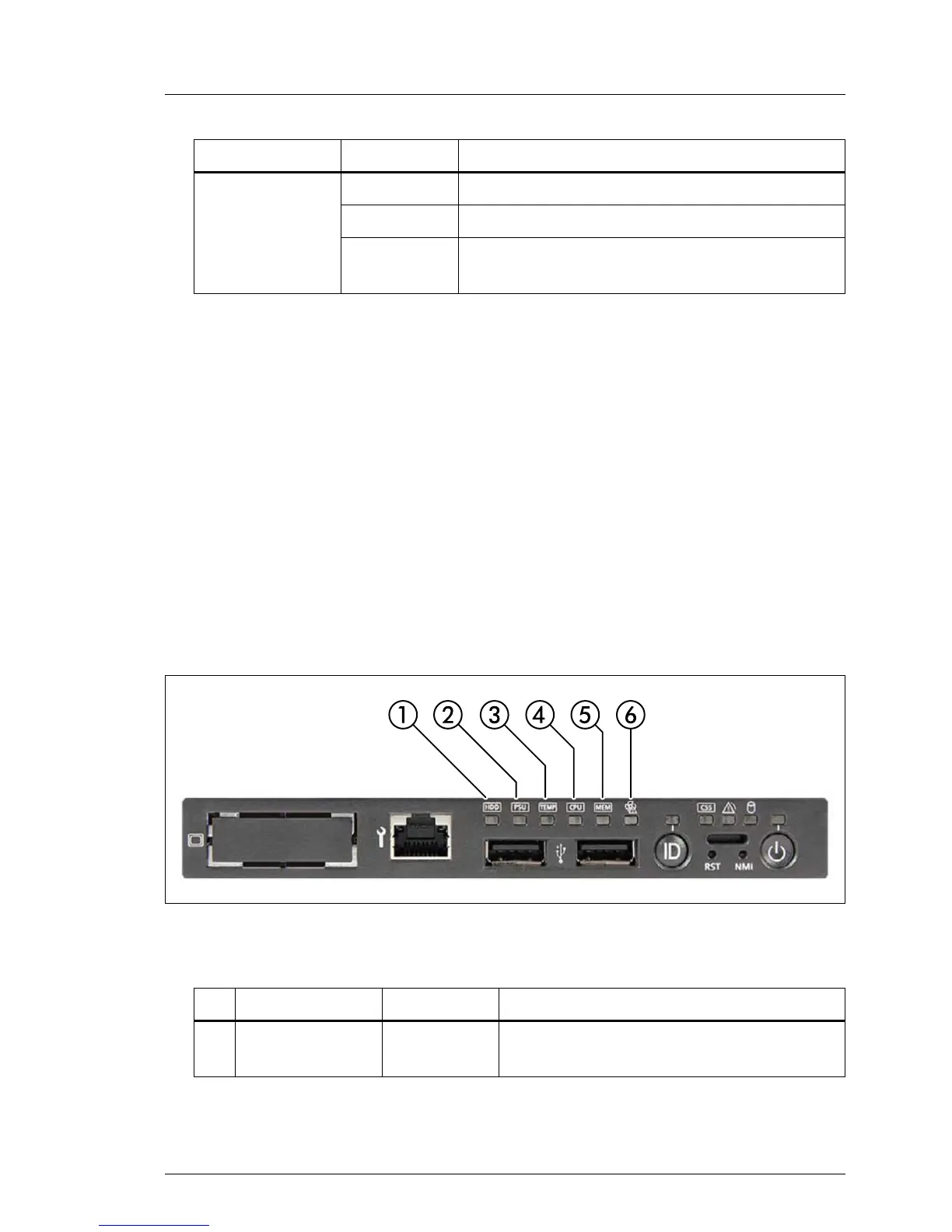

Figure 6: Local diagnostic indicators on front panel
Ê Check the CSS indicator on the front and connector panels of the server:
Indicator Status Description
CSS indicator
off no critical event (CSS component)
yellow on prefailure detected (CSS component)
yellow
flashing
CSS component failure
Indicator Status Description
1
HDD error
indicator
orange on
HDD / SSD, SAS / SATA backplane or
RAID controller failure detected
