TX140 S1 Upgrade and Maintenance Manual 541
Cabling
16.6.3 Removing the backup drive USB cable

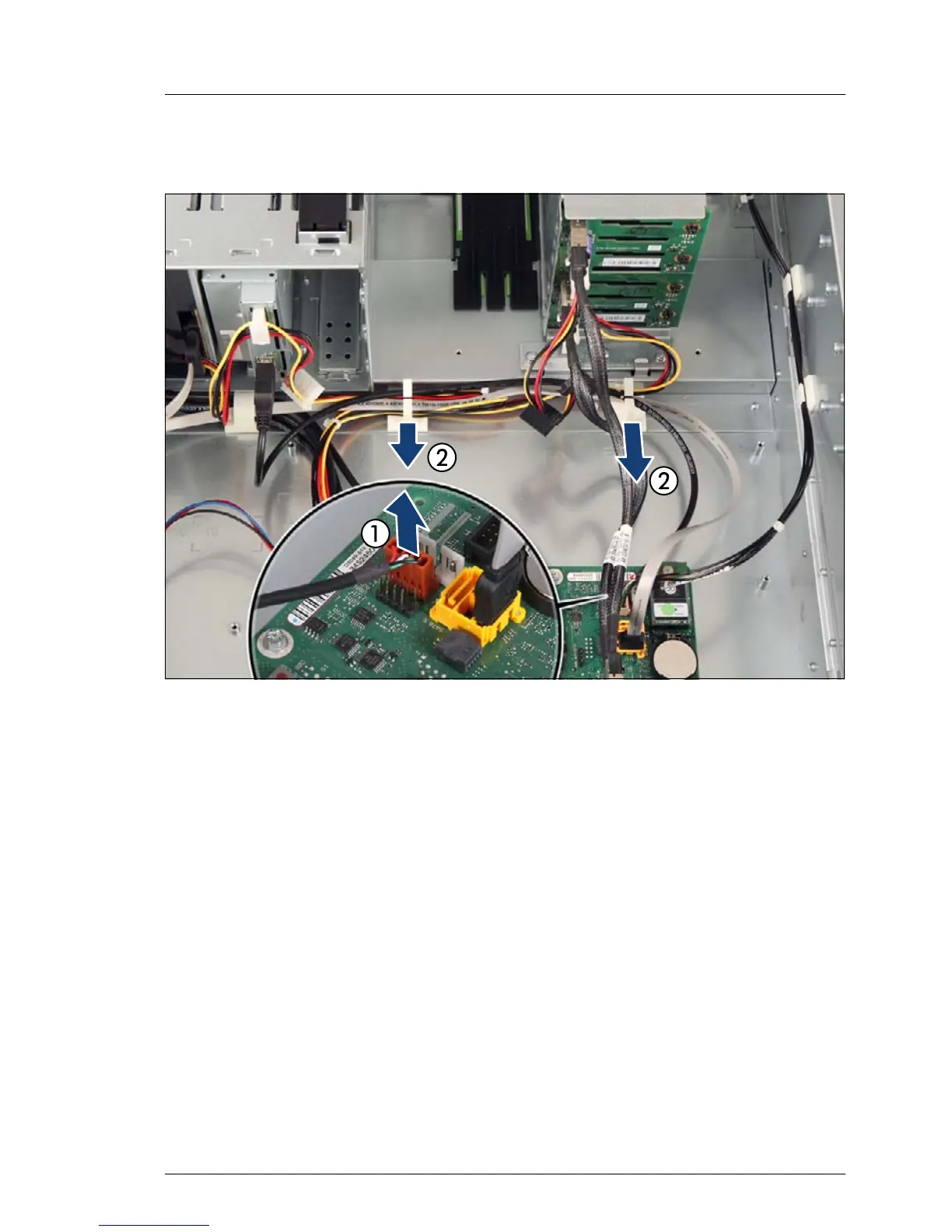

Figure 370: Removing the backup drive USB cable (A)
Ê Disconnect the backup drive USB cable from system board connector USB1
DAT (1).
Ê Remove the backup drive USB cable from the cable clamps (2).
