354
Upgrade and Mai
ntenance Manual
TX140
S1
Accessible drives
12.3.4
Removing a slimline
optical
disk drive (
ODD)

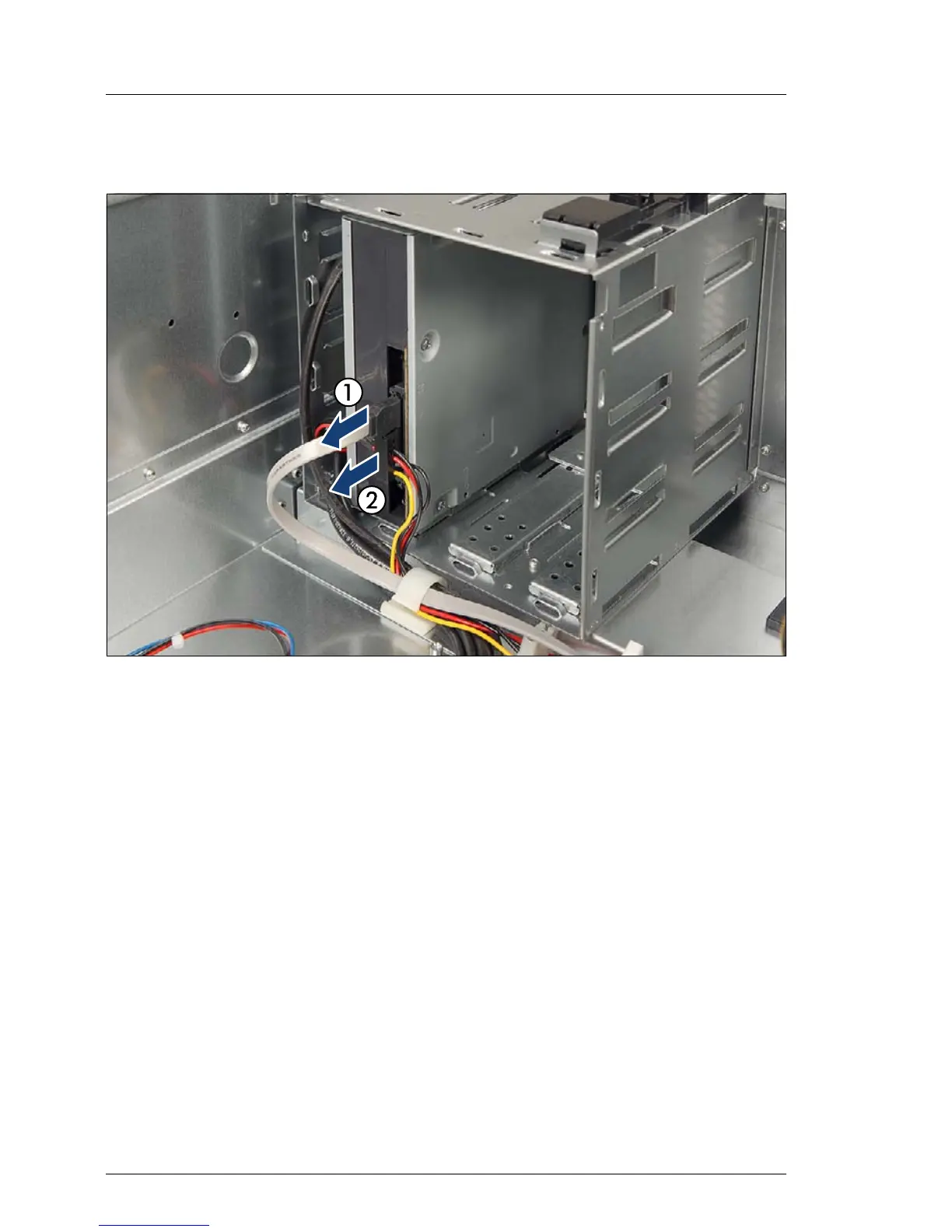

Figure 207: Disc
onnecting cables f
rom
the slimline opt
ical disk drive
Ê
Disconnect all cables from the slimli
ne optical disk drive.
1
SA
T
A cable T26139-Y3928-V205
2
Power cable T26139-Y4012-V501 connector P5
