TX140 S1 Upgrade and Maintenance Manual 331
Accessible drives
Ê Open the side / top cover as described in section "Removing the top cover"
on page 67 (rack server) or "Removing the side cover" on page 71 (tower
server).
Ê Pull out the ID card and open the front cover as described in section
"Removing the rack front cover" on page 69 (rack server) or "Removing the
front cover" on page 74 (tower server).
12.2.3 Removing the accessible drive dummy module

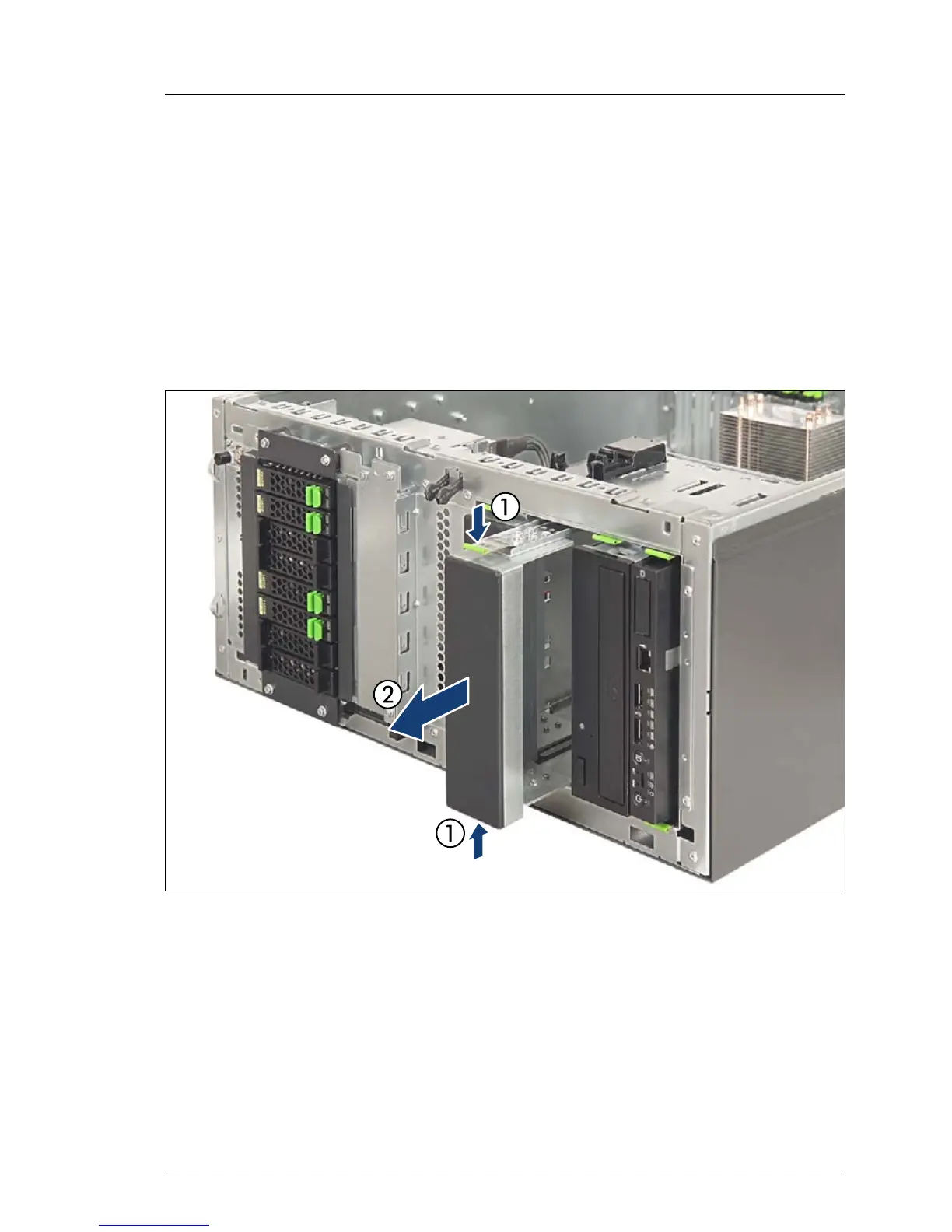

Figure 184: Removing the dummy module
Ê Press in on the locking latches on both EasyClick rails (1) to disengage the
locking mechanism.
Ê Pull the dummy module out of its bay (2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
