544 Upgrade and Maintenance Manual TX140 S1
Cabling

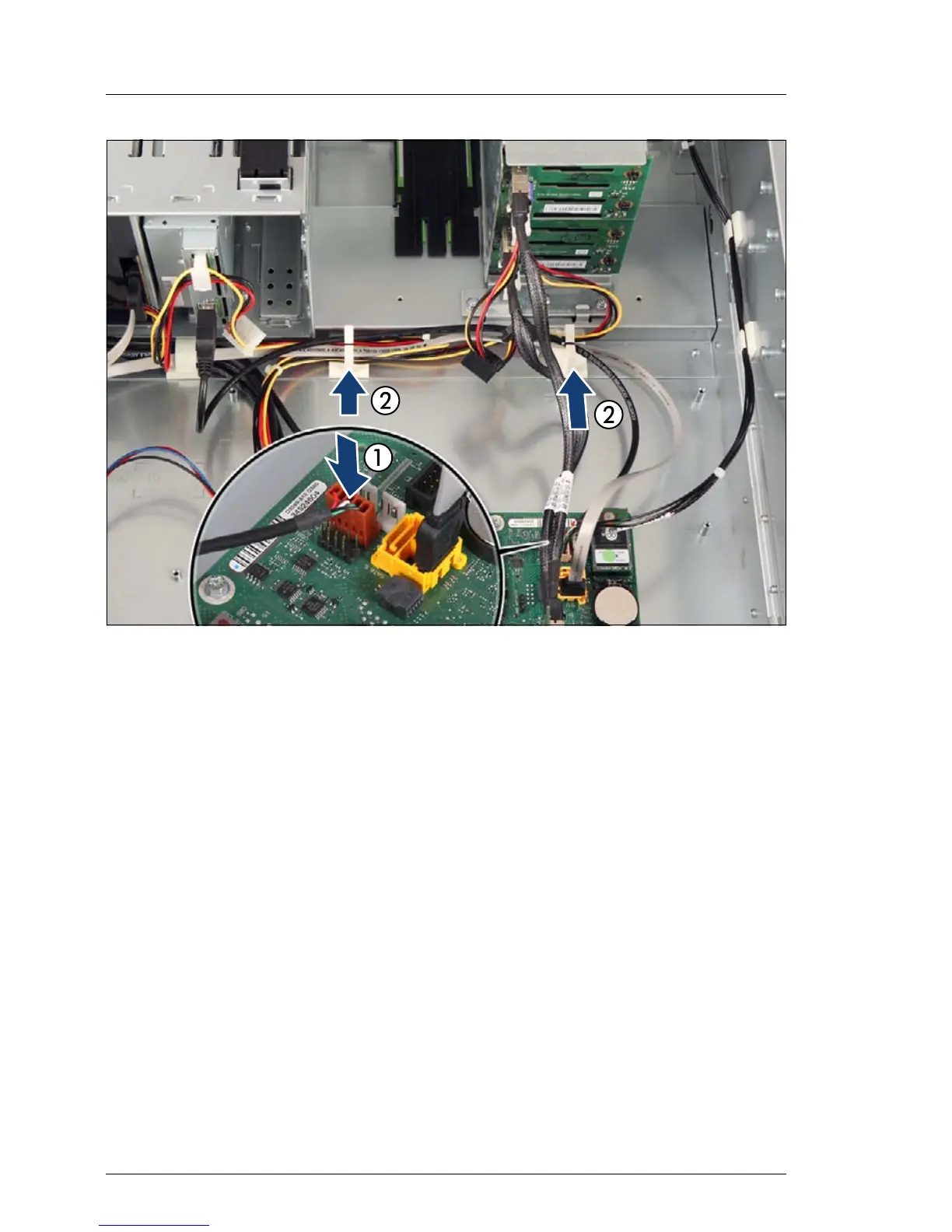

Figure 373: Installing the backup drive USB cable (B)
Ê Reconnect the 6-pin connector of the new backup drive USB cable to
system board connector USB1 DAT (1).
Ê Run the backup drive USB cable through the cable clamps (see arrows) as
shown (2).
16.6.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the side / top cover as described in section "Mounting the top cover"
on page 80 (rack server) or "Mounting the side cover" on page 85 (tower
server).
Ê When working on a rack-mounted server, secure it in the rack as described
in section "Sliding the server into the rack" on page 89.
If the server has been completely removed from the rack for maintenance
purposes, reinstall and secure it in the rack as described in section
"Mounting the server in the rack" on page 87.
