TX140 S1 Upgrade and Maintenance Manual 553
Cabling
16.8.4 Installing the BBU cable

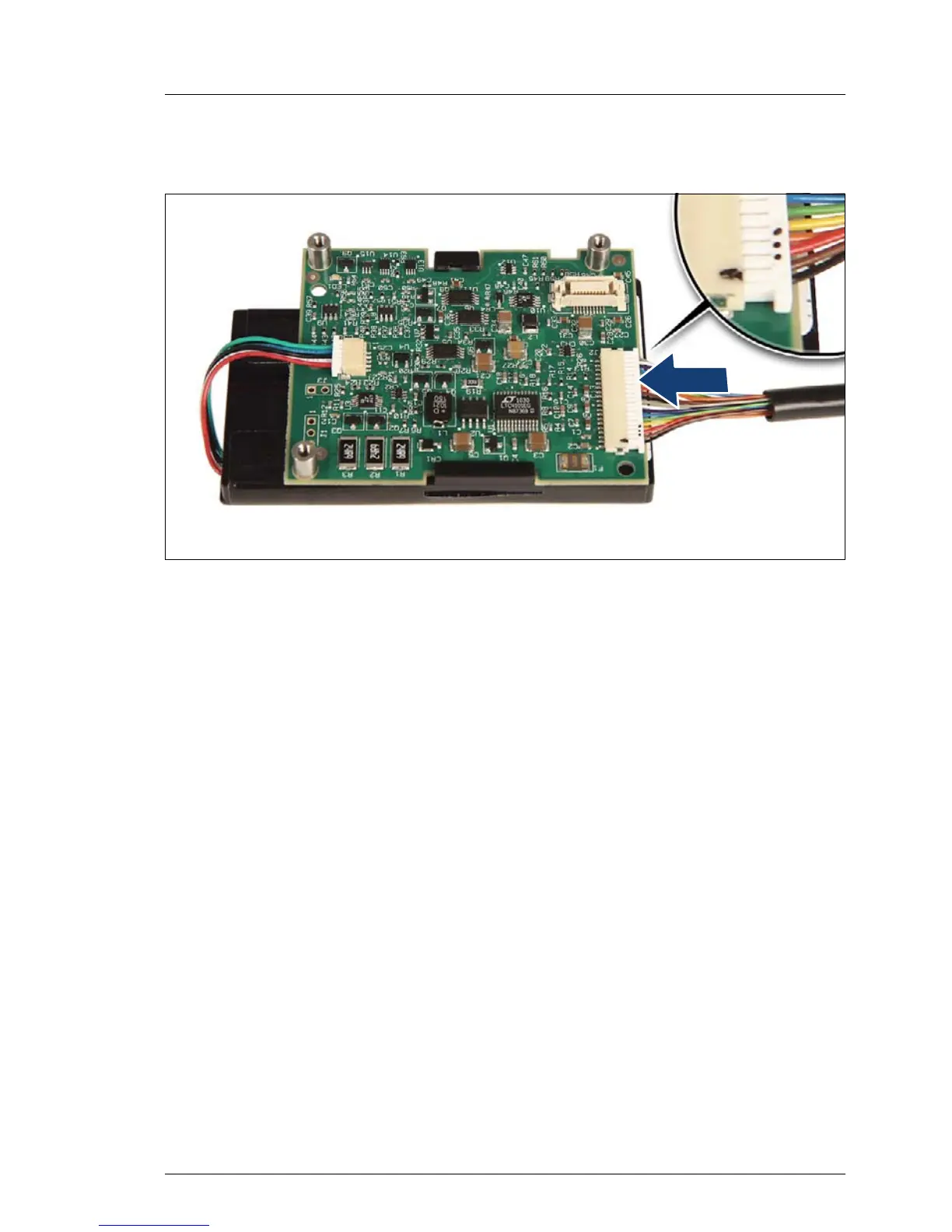

Figure 382: Connecting the BBU cable
Ê Connect the BBU cable T26139-Y3987-V2 to the BBU board as shown.
I The connector side with the three dots points towards you (see close-
up).
