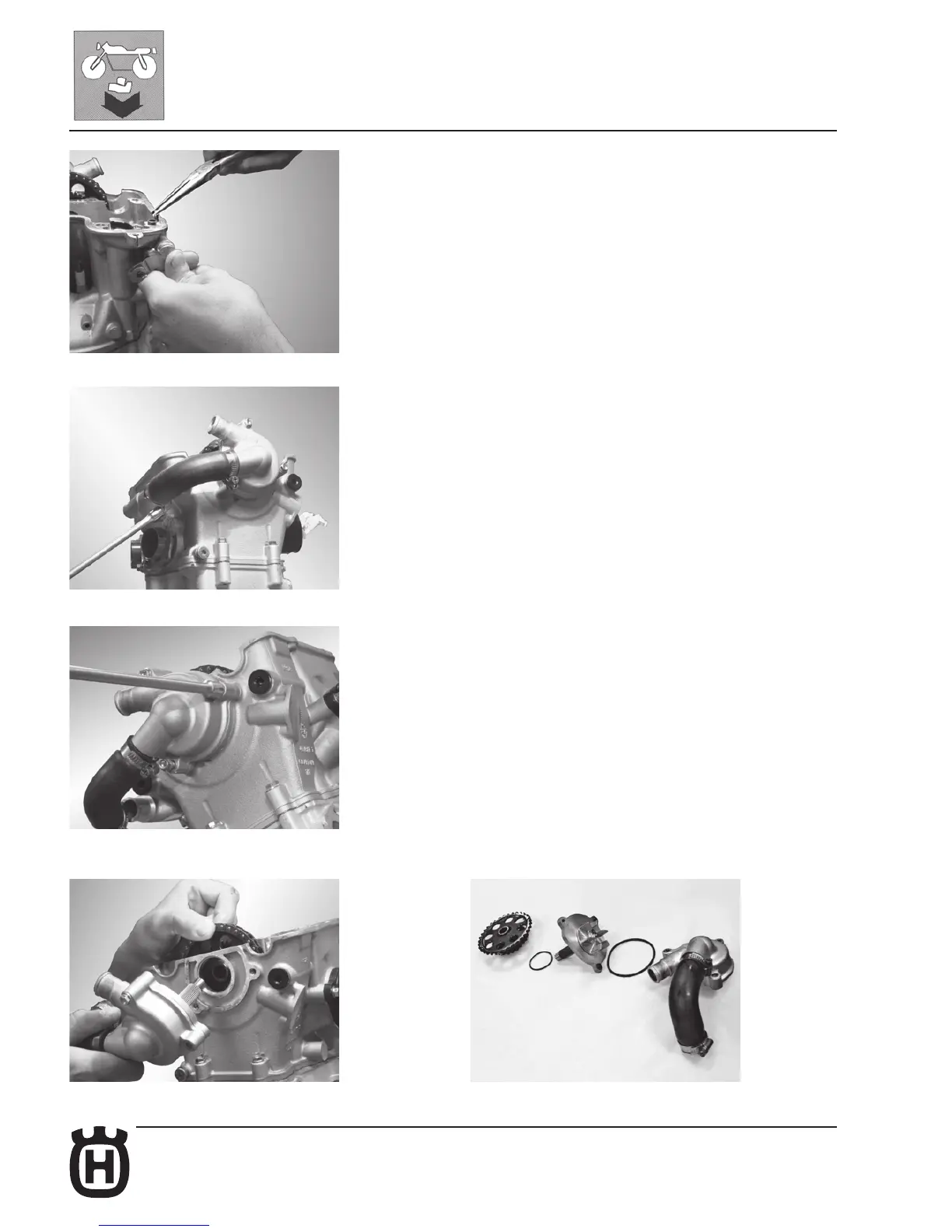

F.6 Part. N. 8000 B0148 (02-2008)
ENGINE DISASSEMBLY
Remove the retaining pin and the valve lifter.
Water pump body disassembly
Loosen the hose water pump-cylinder head clamp and remove the hose from
cylinder head. Remove the two fastening screws (8 mm wrench) and the water
pump body from the cylinder head. Remove the timing driven gear (Water pump
rotor fastening nut: 3,9 Nm/ 0,4 Kgm/ 2.9 ft/lb+LOCTITE 243).
