Husqvarna TE 250 Workshop Manual

M.5Part. N. 8000 B0148 (02-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

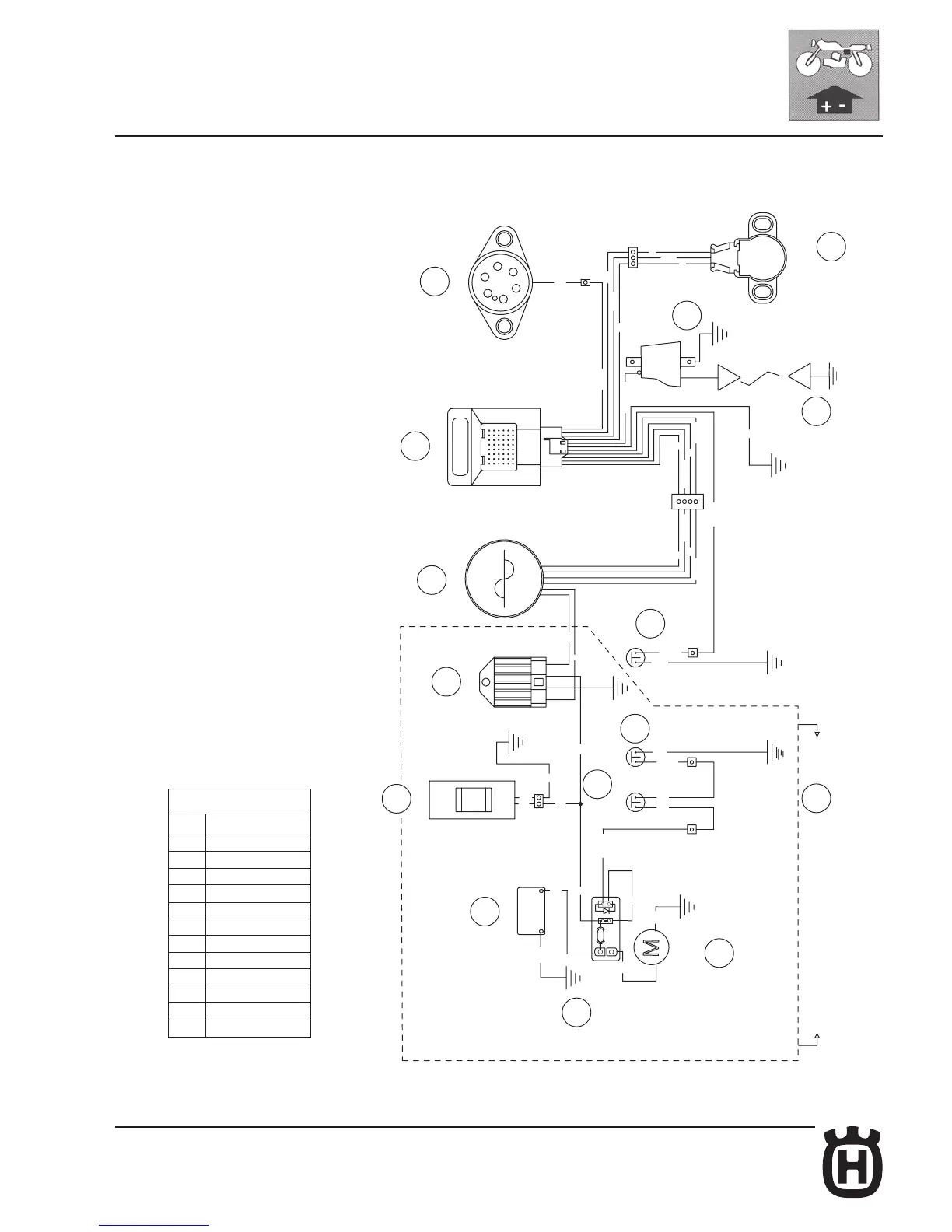

KEY TO ELECTRIC DIAGRAM
(TC-TXC 450-510; SMR 450-R)
1. Electronic power unit
2. Alternator
3. Voltage regulator
4. Condenser (TC-TXC)
5. Battery
6. Electric start remote control switch
7. Starting motor
8. Spark plug
9. Gear shift position sensor
10. Electronic coil
11. Carburetor throttle position sensor
12. Engine stop
13. Engine start
14. Clutch microswitch (TC-TXC)
*: ELECTRIC STARTER KIT
Cable colour coding
BBlue
Br Brown
Bk Black
G Green
Gr Grey
Gr/R Grey/Red
O Orange
P Pink
R Red
Sb Sky blue
V Violet
W White
Y Yellow
R-W
G
BK-R
R-W
W-Br
G
R
BK-R
R
CANDELA
BOBINA
GENERATORE
W-O
SENSORE MARCE
SENSORE APERTURA
FARFALLA
REGOLATORE
-
+
15A
ARRESTO
MOTORE
AVVIO
MOTORE
BATTERIA
TELERUTTORE
MOTORINO
AVVIAMENTO
Y-G
B
Bk
Y
B
B-W
Bk
Bk
B-W
W
B
Bk
Y
CENTRALINA
Bk
-
+
R
G-O
R
R
O
R
Bk-W
B
W
Y
R
R
Bk
R
R
INT.
FRIZIONE
CONDENSATORE
SCHEMA PER INSERIMENTO AVVIAMENTO ELETTRICO
1
2
3
4
5
6
7
8
10
9
11
12
13
14
*
